Aperture Selection

1.
2.
Aperture
Position

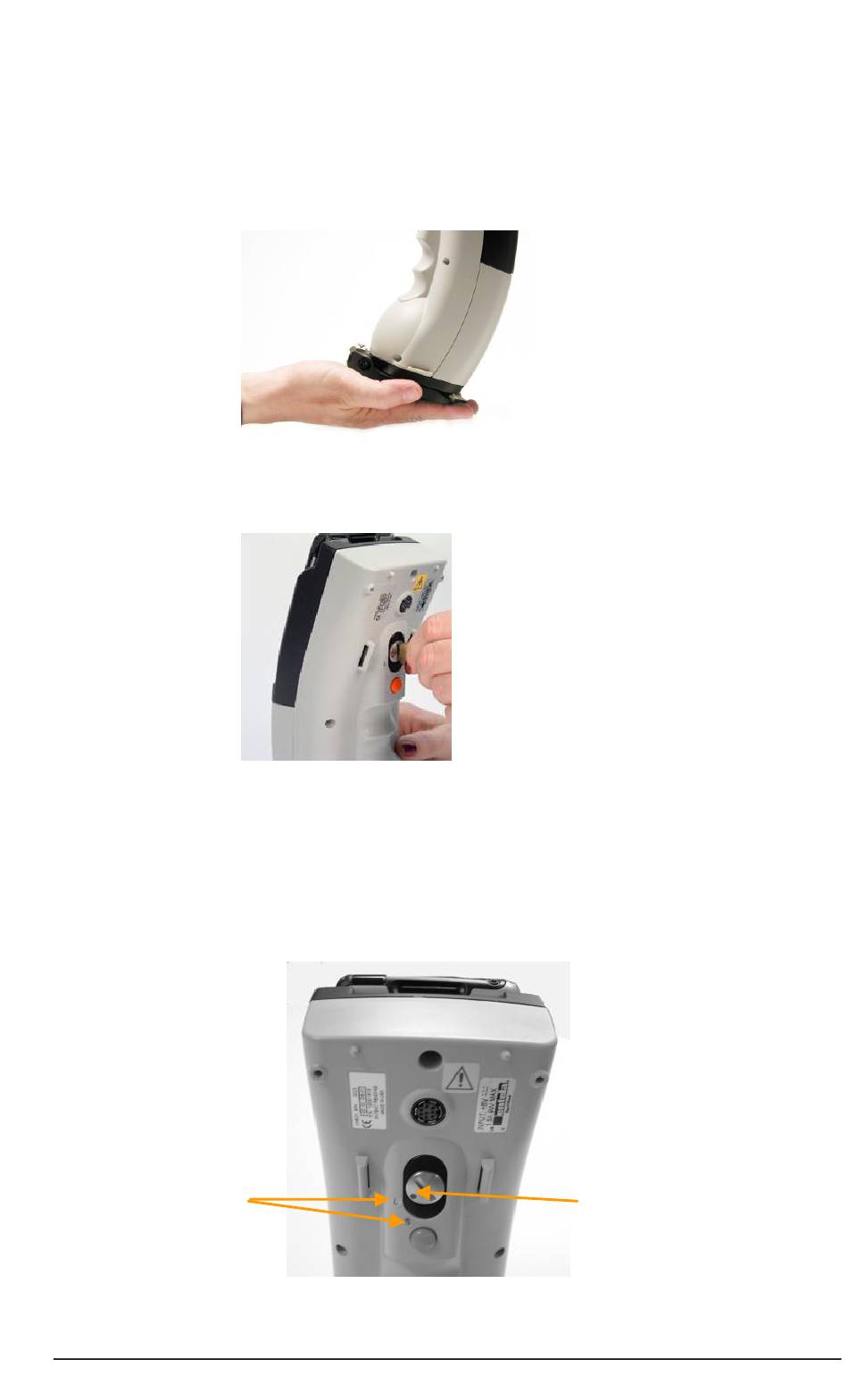

14  Stapler Foot and Aperture Selection
Turn the stapler foot clockwise to lock it into position. The
red dot on the stapler foot will line up with the red dot on
the instrument.
To remove the stapler foot from the unit, turn the stapler
foot counterclockwise.
Turn the aperture switch to the selection that matches the
stapler foot installed on the unit.
Install the stapler foot assembly, using the instructions in
this guide.
Dual aperture units are fitted with a silver switch on the
back of the unit.
Indicator
