Related Manuals for Datacolor Spectro 55
Summary of Contents for Datacolor Spectro 55
- Page 1 Datacolor Spectro 55 User’s Guide...
- Page 2 To obtain information on local agents, contact either of the offices listed below, or visit our website at www.datacolor.com. Support Questions? If you need help with a Datacolor product, please contact one of our top-rated technical support teams listed below for the Datacolor office in your area.
-
Page 3: Table Of Contents
Measurment Button ......................7 Instrument Calibration ..................7 General Calibration Information ...................7 Calibration Data ........................7 Instrument Setup w/Datacolor Paint ..................7 Instrument Calibration w/Datacolor Paint ................7 Appendix ......................8 Datacolor Global Support ....................9 Contents • i Datacolor Spectro P300, P200, P100 User’s Guide... -
Page 4: Datacolor Spectrophotometers

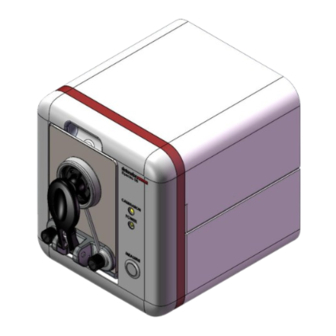

Datacolor Spectrophotometers About the Datacolor Spectro 55 Instrument The Datacolor Spectro 55 instrument is the newest generation of Datacolor’s retail paint measuring instruments. This 45/0 measurement geometry instrument is intended for retail paint applications. Use Datacolor Spectro 55 to quickly and accurately measure samples to produce quality custom color matches. -
Page 5: Light Source
The USB-C cord supplied with the unit must be used to connect to an earthed (grounded) power supply. The power cord supplied with the unit must be used. CAUTION Disconnect power before servicing. • 3 Datacolor Spectro P300, P200, P100 User’s Guide... -
Page 6: Power
Protective cap will be removed only when calibrating, and returned to keep the tile clean and safe from damage. Cable Installation Overview Datacolor Spectro 55 required 2 cables, a power cable and USB cable that connects the instrument to a PC. Both are plugged into the back of the instrument. • 4... -
Page 7: Power Supply
To connect the instrument to the computer using the supplied cable: 1. Connect the Micro USB cable to the connector on the instrument. 2. Connect the USB-C cable to the computer. • 5 Datacolor Spectro P300, P200, P100 User’s Guide... -
Page 8: Power Switch
Power – Green light indicates Power On Calibration – Indicates if the calibration interval has expired. Red Light – Calibration has elapsed. Recalibrate instrument to ensure an accurate measurement. Green Light – Instrument is calibrated. • 6 Datacolor Spectro P300, P200, P100 User’s Guide... -
Page 9: Measurment Button
This section provides instructions for performing a calibration with Datacolor Paint NOTE The recommended calibration interval for the Spectro 55 with Datacolor Paint is every 24 hours to account for any changes in the device over time. The instrument is calibrated through the attached software. -
Page 10: Sample Presentation And Measurement
Measurement Sample Presentation and Measurement When measuring samples using Datacolor Spectro 55, you must pay close attention to the positioning of the sample to insure an accurate measurement. When positioned correctly, the sample rests between the sample holder and the front panel door. The sample must completely cover the aperture opening. -
Page 11: Appendix
3. Push the door back to its normal position, and start the measurement. Appendix Datacolor Global Support A complete User’s Guide is provided with this product. However there are also resources regarding color education on the Datacolor website, including contact information for local Datacolor offices. http://industrial.datacolor.com/support/contact-us-2/ • 9...
