Stapler Foot Installation

A stapler foot assembly is provided for each aperture. This is attached
to the bottom of the unit.
WARNING
Exercise caution when installing the stapler foot.

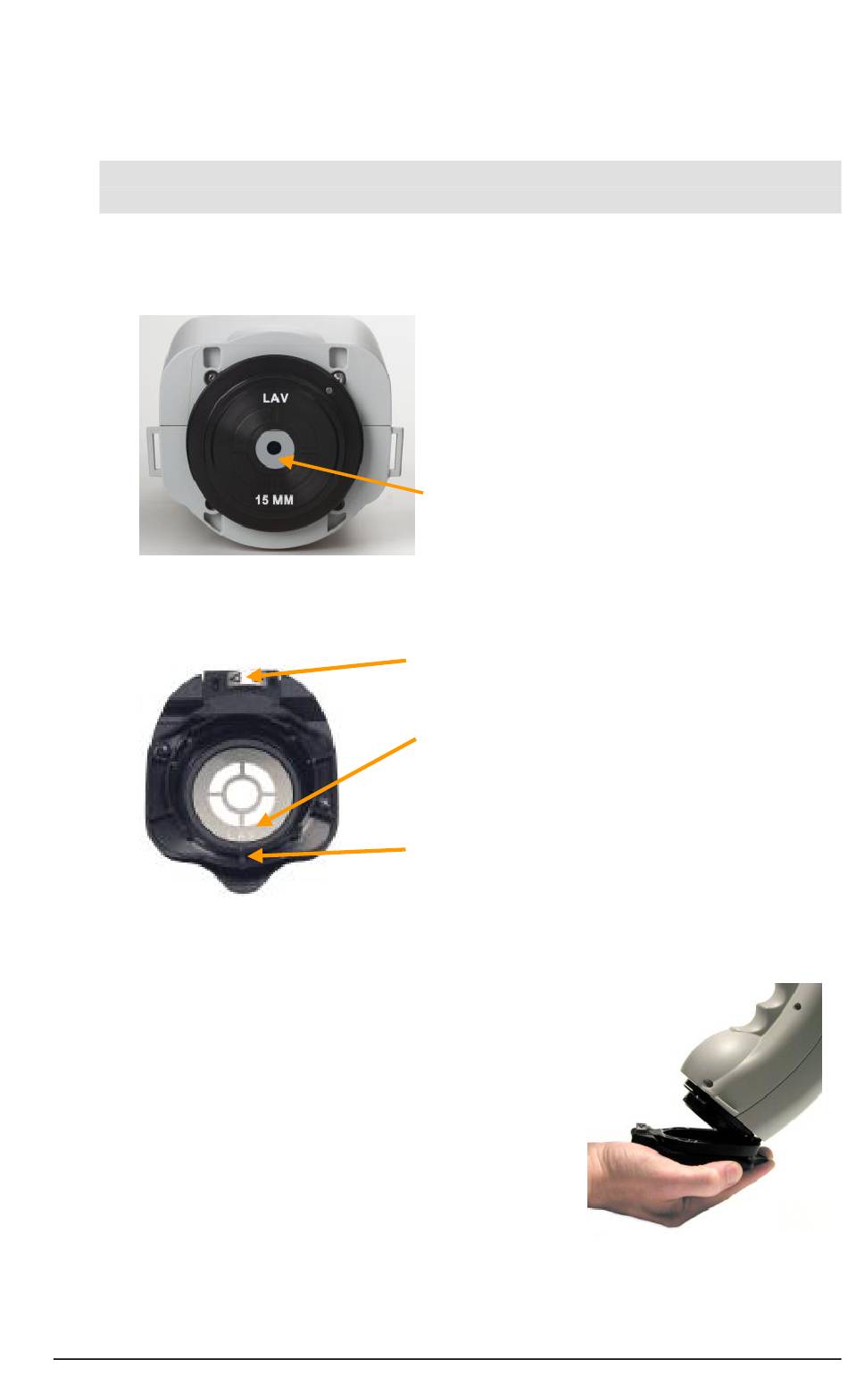

Below are pictures of the stapler foot assembly and the bottom of the
unit where it is installed.
Bottom of Unit
Stapler Foot Assembly
To install the stapler foot, do the following:
1.
2.
3.
CHECK II Quick Start Guide
Slide the locking key on the
stapler foot to the right to close
it.
Orient the stapler foot assembly
so that the front of the stapler
foot assembly is parallel to the
front of the unit.
Align the red dot on the stapler
foot with the gray dot on the
instrument.
Sphere Opening
Locking Key
Slides left/right to lock/
unlock jaw of stapler foot.
Aperture ID. The aperture size
is clearly identified on the stapler
foot
Red Dot (not shown)
Used to align foot with instrument
during installation.
