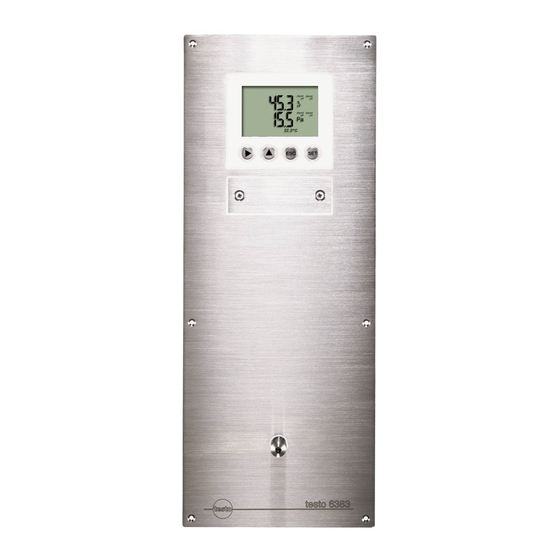

testo 6383 · differential pressure transmitter
testo 6610 · Probes
P2A software · Parameterizing, adjusting and analyzing
software
Instruction manual Volume 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6383 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TESTO 6383

Summary of Contents for TESTO 6383

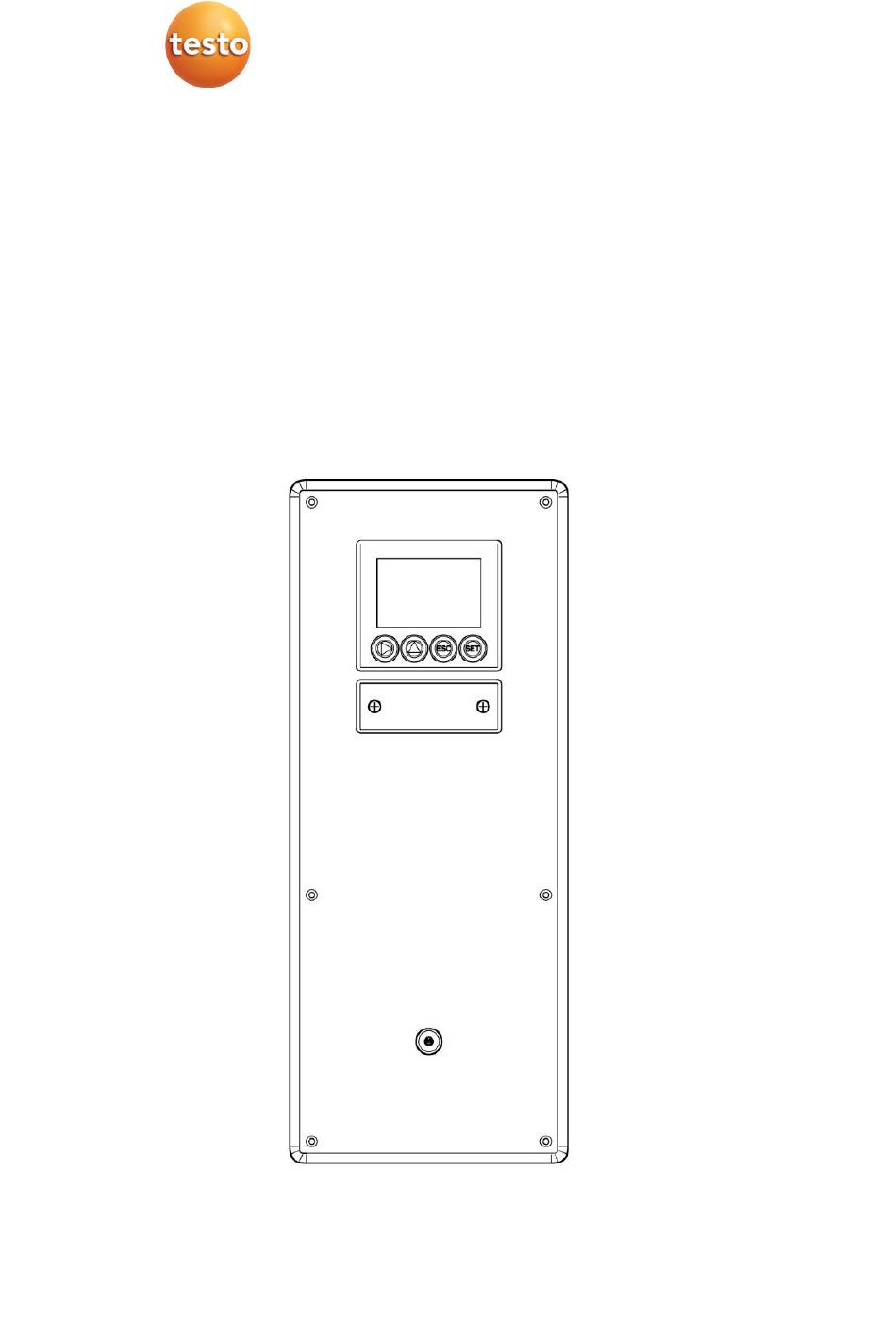

  • Page 1 6383 · differential pressure transmitter testo 6610 · Probes P2A software · Parameterizing, adjusting and analyzing software Instruction manual Volume 1...

  • Page 3: Safety And The Environment

    Use only original spare parts from Testo. Any additional work must only be carried out by authorized personnel. Otherwise testo will not accept any responsibility for the proper functioning of the instrument after repair and for the validity of certifications.

  • Page 4: About This Document

    2 About this document About this document > Please read this documentation through carefully and familiarize yourself with the product before putting it to use. Pay particular attention to the safety instructions and warning advice in order to prevent injuries and damage to the products. >...

  • Page 5: Table Of Contents

    4.3.2.9. 2-point adjustment (humidity/temperature) ........32 4.3.2.10. Analog output adjustment ..............33 4.3.2.11. n-point adjustment (pressure) ............34 4.3.2.12. High-humidity adjustment for testo 6614 ...........35 4.3.2.13. Self adjustment of testo 6615 trace humidity probe ......36 4.4. Operation ..................38 4.4.1. Relationship between user menu and mini-DIN socket is active .....38 4.4.2.
  • Page 6 3 Contents 4.4.5.5. Editing Main Menu Settings ............... 46 4.4.5.6. Editing Main Menu Analysis ............... 48 4.4.5.7. Editing Message main menu ............. 50 4.4.5.8. Calling up Main Menu Ident ............... 51 4.4.5.9. Editing Main Menu Adjust ..............51 4.4.5.10. Editing Reset main menu ..............54 4.5.

  • Page 7: Transmitter

    • Clean rooms • Complex room climate applications 4.1.2. Scope of delivery The scope of delivery of the testo 6383 transmitter includes the following: • With KMAT version D04: Integrated humidity probe • Sealing frame • Instruction manual •...
  • Page 8 4 Transmitter Differential pressure accuracy The specifications are only valid if the positive pressure is applied at the positive pressure connection. • 0.3 % of measuring range, additional 0.3 Pa intrinsic error • = 0.02 % of measuring range per degree Kelvin of K slope drift deviation from nominal temperature 22 °C •...
  • Page 9 Upon delivery and following a factory reset the readings are shown in the display in the unit that was ordered via the KMAT option Fxx, see Ordering options for testo 6383 transmitter (0555 6383), 8.2.1, volume 2. Humidity and temperature resolution •...
  • Page 10 4 Transmitter Maximal load • 4-wire: 10 kΩ (voltage output) Analog output • 0 to 1 V ± 1.5 mV (4-wire) or • 0 to 5 V ± 7.5 mV (4-wire) or • 0 to 10 V ± 15 mV (4-wire) or •...
  • Page 11 4 Transmitter Oper. humidity • 0 to 90 % RH Housing, weight • Metal/plastic • Version with integrated humidity probe: approx. 1.35 kg • Version with preparation for external humidity probe: approx. 1.26 kg Protection class, frontal • IP 65 only if the transmitter is wired and/or sealing plugs are inserted Directives, standards and tests •...

  • Page 12: Dimensions

    4 Transmitter 4.1.5. Dimensions...

  • Page 13: Product Description

    4 Transmitter 4.2. Product description 4.2.1. At a glance 1 Sealing plugs on the positive pressure test connection (Ø 4 mm ) 2 Sealing plugs on the negative pressure test connection (Ø 4 mm ) 3 Socket for service plug 4 Display (optional) 5 Keys (only with optional display)

  • Page 14: Usable Probes

    (Ø 6.4 mm) 17 Positive pressure connection (Ø 6.4 mm ) 18 Probe socket 4.2.2. Usable probes The testo 6383 transmitter can be used with the following probes: Probes Article no. Characteristic Integrated Wall probe version; accuracy to ±1 % RH;...

  • Page 15: Display And Keypad

    -40 to +356 °F, sensor soldered 4.2.3. Display and keypad The display option allows operation of the testo 6383 transmitter via the display and four keys. The LCD display consists of two 7-segment lines for displaying readings and units and of an information line (for status messages, for example).

  • Page 16: Analog Outputs

    4 Transmitter 4.2.6. Analog outputs As analog outputs, the testo 6383 has either • 1 or optionally 3 current outputs of 0 to 20 mA (4-wire)/4 to 20 mA (4-wire) or • 1 or optionally 3 voltage outputs of 0 to 1 V/0 to 5 V/0 to 10 V (4-wire).

  • Page 17: Scaling

    4 Transmitter 4.2.8. Scaling There are three types of min./max. values: 1 The measuring range: The maximum sensor performance is in this range. Values outside of the measuring range are displayed via messages, for example. Measuring range, see table (below). 2 Standard scaling: The output signals are assigned to this measuring range as standard: ◦...
  • Page 18 WMO relative % RH humidity Mixture humidity % RH For constant use in high humidity (> 80% rF at ≤ 30°C for > 12 h, > 60% rF at > 30°C for > 12 h), please contact us via www.testo.com/service-contact...

  • Page 19: Alarm Handling

    The testo 6383 monitors limit values with the help of relays. If a reading is outside the limit values, a relay to be specified by the user is switched.

  • Page 20: Commissioning

    4 Transmitter 4.3. Commissioning 4.3.1. Mounting preparations...

  • Page 21: Connecting The Instrument

    4 Transmitter 1. Create a wall opening (approx. 120 mm x 220 mm) at the mounting location. 2. Hold 6383 in assembly position and mark the drill holes. 3. Drill holes suitable for the screws to be used. 4. Connect 6383.

  • Page 22: Connecting Voltage Supply And Analog Outputs

    4 Transmitter 4.3.2.2. Connecting voltage supply and analog outputs Terminal strip for voltage supply and analog outputs, item (1) of overview of terminals Wiring diagram for 4-wire system (0 to 20 mA/4 to 20 mA/0 to 1 V/0 to 5 V/0 to 10 V) 1 1 or 3 channels, 0 to 20 mA/4 to 20 mA max.

  • Page 23: Connecting The Relay Outputs

    4 Transmitter 3. Tie together each of the two adjacent cores using a cable tie. 4. Attach terminal strip for voltage supply and analog outputs. 4.3.2.3. Connecting the relay outputs Only have the transmitter wired and connected by authorized personnel with the voltage disconnected. Relay terminal strip, item (2) of overview of terminals...
  • Page 24 4 Transmitter • For the connection, a double-insulated mains cable (sheathed cable) with a cross-section of at least 1.5 mm² must be used. • Cable connection (2) may not be routed in a loop within the relay trough (1). • It is recommended that you always tie 2 adjacent cores to one another using a cable tie (3).
  • Page 25 4 Transmitter Use of relay as NO contact (NO = normally open) 1 Alarm/status light (example of installation) 2 250 V AC/DC, 3 A The busy light (alarm/status light) only comes on when the relay is switched (closed). Monitoring the functionality of the alarm circuit is therefore not possible with this switching operation.

  • Page 26: Connecting Pressure Connections

    4 Transmitter 4.3.2.4. Connecting pressure connections Illustration shows delivery status Use of front pressure connection 1. Remove hose from hose holder (2) and connect to overpressure (3) or underpressure (1) connection. 2. Connect remaining pressure connection to (3) or underpressure potential (1) with additional hose.

  • Page 27: Closing The Instrument

    4 Transmitter 4.3.2.5. Closing the instrument 1. Connect probe. • Version with integrated humidity probe: 1. Insert probe into probe socket. 2. Guide probe through opening of front plate. 3. Tighten screw at opening. • Version with external humidity probe: >...
  • Page 28 4 Transmitter 4. Pull sealing frame (1) over the edge of the 6383. 5. Screw on 6383. Initially, only tighten the screws slightly. When all screws are in position, also align 6383 and tighten the screws. 6. Seal 6383 using a measure appropriate for the installation point...

  • Page 29: Adjusting The Instrument

    4 Transmitter 4.3.2.6. Adjusting the instrument The testo adjusting concept allows the entire signal chain from the sensor signal (probe) and the digital signal (within the transmitter) through to the analog signal (transmitter output signal) to be adjusted (see diagram).

  • Page 30: Overview: Adjustment Keys And Test Contacts

    The reference condition can be measured using a precise handheld instrument (e.g. testo 400/650 with precision humidity probe) or be created in an air conditioning cabinet.
  • Page 31 1. Connect testo handheld instrument 400/650 (1) with connected humidity reference probe (3) (order no. reference set 0699 3656/20) to the service interface (5) of the testo 6383 via the adjustment adapter (2) (connected to probe socket 1 of the handheld instrument).

  • Page 32: 2-Point Adjustment (Humidity/Temperature)

    6615 (trace humidity) probes. The reference conditions should be generated in a humidity generator to adjust these probes. In addition, these probes can also be adjusted at a third adjustment point by Testo Service. • testo 6614: third adjustment point at 90 % RH •...

  • Page 33: Analog Output Adjustment

    4. Service interface Adjusting analog outputs 1, 2 and 3 (optional) ✓ With testo 6383 with current output: Load of max. 500 Ω is connected to channel that is to be adjusted see 4.3.2.2. Connecting voltage supply and analog outputs.

  • Page 34: N-Point Adjustment (Pressure)

    Adjusting the analog output) or enter it via the user menu (see 4.4.5.9. Editing Main Menu Adjust). 3. Disconnect connections between the multimeter and the contacts of the testo 6383 and close the service cover. 4.3.2.11. n-point adjustment (pressure) With an n-point adjustment, the parameters at the 3-6 measurement points are adjusted to the reference value.

  • Page 35: High-Humidity Adjustment For Testo 6614

    4 Transmitter 4.3.2.12. High-humidity adjustment for testo 6614 With the testo 6614, the rear of the Testo humidity sensor is heated, creating a microclimate around the sensor (within the filter) that is constantly 5 K warmer than the actual process conditions.

  • Page 36: Self Adjustment Of Testo 6615 Trace Humidity Probe

    -60 °C To this end, a temperature sensor is fitted on the back of the testo 6615 which is used as a heater. A humidity and temperature value pair is taken in both the unheated and heated state. The deviation of the probe obtained from these pairs of values is automatically corrected.
  • Page 37 P2A software. • In the factory setting, a third adjustment point (-40 °C ) is approached for the testo 6615 in addition to the 2-point adjustment. This special adjustment can be performed again by your Testo Service team if necessary.

  • Page 38: Operation

    4.4.1. Relationship between user menu and mini-DIN socket is active The testo 6383 can be parameterized using either the user menu or the P2A software (see 7., volume 2, Parameterizing, adjusting and analyzing software (P2A software)). The testo 6383 transmitter can only be operated via the display and keypad if the display option is available.
  • Page 39 4 Transmitter 1 Channel 1 display 2 Channel 2 display 3 Channel 3 display or for messages Four keys enable the user to navigate/scroll through the menus and enter/amend values and settings: Function/description • In Measuring Mode: changes to parameterization •...

  • Page 40: Overview Of The Testo 6383 User Menu

    4 Transmitter 4.4.4. Overview of the testo 6383 user menu...
  • Page 41 4 Transmitter...
  • Page 42 4 Transmitter...

  • Page 43: The Individual Main Menus

    The individual main menus 4.4.5.1. Editing main menu of channel 1 An overview is given in 4.4.4. Overview of the testo 6383 user menu). You can perform basic settings for channel 1. 1. In the Measuring Mode press SET, select...

  • Page 44: Editing Main Menu Alarm

    4 Transmitter 4.4.5.4. Editing Main Menu Alarm With the alarm, the relays, available as options, are programmed. In addition, the alarm statuses are shown on the display (top right) (even without relays). You can choose whether the alarm is to be used to monitor limit values or as a collective alarm.
  • Page 45 If an alarm is assigned to the collective alarm, the relay is switched and a visual alarm can be issued via the display as soon as (at least) one of the warning or error messages of the testo 6383 transmitter (or the connected testo 6610 probe) becomes active.

  • Page 46: Editing Main Menu Settings

    4 Transmitter 4.4.5.5. Editing Main Menu Settings You can edit instrument settings and other settings. > In Measuring Mode, press SET, select Main Menu Settings using  or  and confirm selection with SET. You can edit settings for: • Display •...
  • Page 47 4 Transmitter Display Settings 3. Return to with and use or  to continue to Language. Selecting language You can select the language for the plain text line in the display. > Press SET, select required language with  or , confirm selection with and return to Language.

  • Page 48: Editing Main Menu Analysis

    4 to 20 mA, the value or abort entry with ESC. "6.0 mA". Confirm with 4. Accept setting by pressing and test with multimeter (minimum requirement: resolution 6.5 digits, at least 2-times more accurate than the 6383) as follows:...
  • Page 49 4 Transmitter Analog output 1, 2 or 3: Via test contacts under service cover, see diagram. 1 Positive test contact channel 1 2 Negative test contact channel 1 3 Multimeter Test Analog Output 4. Return to with and use or  to continue to Test Relay Output.

  • Page 50: Editing Message Main Menu

    4 Transmitter 4.4.5.7. Editing Message main menu Messages can be confirmed/acknowledged, the last messages can be called up and the display of the messages can be switched on or off. 1 Operating hours at the time of message 2 Message code (see Status, warning and error messages, page 55).

  • Page 51: Calling Up Main Menu Ident

    4 Transmitter Main Menu Ident 10. Continue to with  or  or return to Measuring Mode with ESC. An overview of the messages can be found in 4.5. Status, warning and error messages. 4.4.5.8. Calling up Main Menu Ident 1 Instrument or probe type 2 Build number...
  • Page 52 In addition, the analog outputs can be adjusted. For instructions on how to do this. See also 4.3.2.10. Analog output adjustment. See also 4.3.2.13. Self adjustment of testo 6615 trace humidity probe. Also pay attention to 4.3.2.10. Analog output adjustment.
  • Page 53 4 Transmitter 1. In the Measuring Mode press SET, select Main Menu Adjust with  or  and confirm selection with SET. 2. Select Self-adjust with  or  and confirm with SET. 3. Select Start Self-adjust with  or  and confirm with SET. Self-adjustment starts, the display value and the output value are “frozen”.

  • Page 54: Editing Reset Main Menu

    4 Transmitter Analog Adj. Ch. 9. With  or  continue to (repeat steps 3 to 8). 10. Return to main menu Adjust with ESC. 11. Continue to main menu Reset with  or  or return to Measuring Mode with ESC. Performing the pressure adjustment Please refer to 4.3.2.11.

  • Page 55: Status, Warning And Error Messages

    • Warning messages • Error messages The status and warning messages for the respective testo 6610 probes connected to the transmitter can be evaluated via the P2A software. All messages are stored in the transmitter with an operating hours stamp. Use the user menu (see 4.4.5.7. Editing Message main menu) or the P2A software (see 7.3.5.
  • Page 56 20 % RH 02130 2-point adjustment As part of the 2-point adjustment, 80 % an adjustment is performed at 80 % RH 02105 Self-adjustment For testo 6615 probe only: The active probe performs an automatic self- adjustment...

  • Page 57: Warning Messages

    4 Transmitter 4.5.2. Warning messages Warning messages show an early warning or a current malfunction which may negatively impact measuring. Message Display Cause Remedying of fault 00809 Pressure too The process pressure Remove the transmitter high** exceeds the pressure from the process and intended for the take any necessary transmitter...
  • Page 58 2-point adjustment where necessary). If the problem persists, contact Testo Service 02809 Sensor early For testo 6617 probe Carry out visual warning* only: The cover inspection. If the mirror- electrode of the sensor like surface of the is damaged; this may...

  • Page 59: Transmitter Error Messages

    0300D T sensor broken The temperature sensor Contact Testo Service is damaged (sensor broken) 03105 Self-adjustment For testo 6615 probe Contact Testo Service error only: The automatic self-adjustment was faulty 03106 Adjustment error The adjustment of the Contact Testo Service...

  • Page 60: Handling Alarm Messages

    03000 Heat function For testo 6614 probe Contact Testo Service defective only: Heat function defective 4.5.4. Handling alarm messages Shown on the Can be used for...

  • Page 61: Namur Fault Conditions

    4 Transmitter Shown on the Can be used for Additional display collective alarm message end 2-point adjustment 75.3 % Probe reset 2-point adjustment drift T ambient high T ambient low Supply voltage low T process high T process low Condensation Values less than 0 % RH Sensor early warning...
  • Page 62 4 Transmitter higher-level control system. The values correspond to the "Namur" industry standard. Status Display Class Analog output message in value in the display display 0 to 4 to 20 10 V 20 mA No probe None Error 21 mA 21 mA 1.1 V 5.5 V 11 V signal...

  • Page 63: Maintenance And Cleaning

    4 Transmitter Status Display Class Analog output message in value in the display display Value above Reading Overrange 20.5 mA 20.5 mA 1.1 V 5.5 V 11 V max. scale Pressure too ooooo Overrange 20.5 mA 20.5 mA 1.1 V 5.5 V 11 V high Heat function -----...
  • Page 64 4 Transmitter Instrument surface ✓ Integrated humidity probe is protected by the plastic cap. • Clean the surface of the instrument with mild cleaning agents (e.g. washing-up liquid) and water. Only use gentle and standard cleaners. • Do not use any aggressive or chafing cleaning agents such as thinner, liquid scouring agent, wax, benzine, concentrated acids and lyes.
  • Page 65 4 Transmitter...
  • Page 66 0970 6383 en 03 Vol. 1...

  • Page 67 6383 · differential pressure transmitter testo 6610 · Probes P2A software · Parameterizing, adjusting and analyzing software Instruction manual Volume 2...

  • Page 69: Content

    Product description ................ 74 6.2.1. Overview of probe and filter types ..............74 6.2.1.1. Probe version ..................74 6.2.1.2. Determining the accuracy/measuring uncertainty ......74 6.2.1.3. Ordering options for testo 6610 probe (0555 6610) ......75 6.2.1.4. Protection caps ...................77 6.2.2. Integrated humidity probe .................77 6.2.3.
  • Page 70 Tips and assistance ................132 8.1. Questions and answers .............. 132 8.2. Accessories and spare parts ............132 8.2.1. Ordering options for testo 6383 transmitter (0555 6383) ....... 135 8.2.2. Ordering options for testo 6610 probes (0555 6610) ........138...

  • Page 71: Testo 6610 Probes

    6610 probes 6.1. Specifications 6.1.1. Functions and use The plug-in, adjusted probes from the testo 6610 family are used together with the testo 6383 transmitter. These measuring units are suitable for the following applications, for example: • Process instrumentation •...

  • Page 72: Self-Diagnosis

    • Early warning when sensor corrosion is starting to develop The testo 6617 probe is able to signal the first signs of corrosion. The probe can thus be changed at an early stage without interrupting the machine availability.

  • Page 73: Design Of The Probe

    6 testo 6610 probes 6.1.2. Design of the probe The probes of the testo 6610 family are made up of the following components (included in delivery): • Probe connector • Probe shaft with protection cap and sensors (% RH and °C or °F)

  • Page 74: Product Description

    (0636 6610) plug-on sensor testo 6612 0555 6610-L12 Duct probe version; accuracy to ±1 % RH; temperature range -30 to +150 °C/ -22 to +302 °F, sensor soldered testo 6613 0555 6610-L13 Cable probe version; accuracy to ±1 % RH;...

  • Page 75: Ordering Options For Testo6610 Probe (0555 6610)

    6 testo 6610 probes The measuring uncertainty of the probe includes the sensor and its electronics as well as the output of the digital measuring signal: 1 Linearity including scatter Systematic error and scattering of the components (due to manufacturing...
  • Page 76 Protection cap made of PTFE with condensate drip hole and condensation protector Protection cap for H atmospheres Nxx Cable length 1 m cable length (testo 6613, 6614, 6615, 6617) 2 m cable length (testo 6613, 6614, 6615, 6617) 5 m cable length (testo 6613, 6614, 6615,...

  • Page 77: Protection Caps

    Protection cap for H atmospheres * When ordering the probe, please use this protection cap code, cf. see 6.2.1.3. Ordering options for testo 6610 probes (0555 6610). ** When purchasing a replacement (protection cap only), please use this order number.
  • Page 78 6 testo 6610 probes Application • Monitoring and regulating the air quality in clean rooms Technical data Parameters • Humidity (% RH/°C /°F ) etc. • Temperature Measuring range • Humidity: 0 to 100 % RH • Temperature: -20 to +70 °C/-4 to +158 °F Material •...
  • Page 79 6 testo 6610 probes ◦ ± (1.0 % RH + 0.007 x reading) for 0 to 90 % RH ◦ ± (1.4 % RH + 0.007 x reading) for 90 to 100 % RH ◦ 0.02 % RH/K, dependent upon the process temperature (with a deviation of 25 °C/+77 °F)

  • Page 80: Testo 6613 Cable Probe

    6 testo 6610 probes Grey line: System error 6383 + probe, electronics 25 °C/+77 °F Black line: System error 6383 + probe, electronics –25 to 70 °C/-13 to 158 °F 6.2.3. testo 6613 cable probe The testo 6613 probe is used when the spatial separation of the transmitter and probe is required.
  • Page 81 6 testo 6610 probes • Clean room applications • Applications for which a sturdy metal housing is required. Testo recommends that the testo 6614 (heated) probe be used for continuous high-humidity processes. Technical data Parameters • Humidity • Temperature Measuring range •...
  • Page 82 PN 1 (if end of probe/cable is involved in process) ** If installing probe under pressure, please use cutting ring screw connection (order no. 0554 1795). Measuring accuracy of testo 6613 cable probe Humidity error, absolute |±% RH| as a factor of process humidity (% RH)
  • Page 83 6 testo 6610 probes Temperature error as a factor of process temperature and temperature of electronics Grey line: System error 6383 + probe, electronics 25 °C/+77 °F Black line: System error 6383 + probe, electronics –25 to 70 °C/-13 to 158° F...

  • Page 84: Testo 6614 Heated Cable Probe

    6 testo 6610 probes 6.2.4. testo 6614 heated cable probe The testo 6614 heatable probe is suitable for use in high-humidity processes in which there is the possibility of condensation for the probe. Also see 4.3.2.12. volume 1, High-humidity adjustment for testo 6614, for the functional principle of the testo 6614.
  • Page 85 6 testo 6610 probes 1 testo 6383 transmitter 2 testo 6614 heated cable probe 3 Temperature probe 4 Assembly distance max. 10 cm Technical data Parameters • Humidity • Temperature Measuring range • Humidity: 0 to 100 % RH •...
  • Page 86 PN 1 (if end of probe/cable is involved in process) ** If installing probe under pressure, please use cutting ring screw connection (order no. 0554 1795). Measuring accuracy of heated testo 6614 cable probe Humidity error, absolute |±% RH| as a factor of process humidity (% RH)

  • Page 87: Testo 6615 Trace Humidity Cable Probe (Self-Adjustment)

    6 testo 6610 probes Grey line: System error 6383 + probe, electronics 25 °C/+77 °F Black line: System error 6383 + probe, electronics –25 to 70 °C/-13 to 158° F 6.2.5. testo 6615 trace humidity cable probe (self- adjustment) The testo 6615 probe corrects deviations in measurements by means of self-adjustment.
  • Page 88 6 testo 6610 probes WARNING In the event of overpressures, the probe may become a projectile. > Mount the probe pressure-tight (see pressure resistance under Technical data) Application • Monitoring and regulating trace humidity processes (compressed air with adsorption or membrane driers and plastic granulate driers) •...
  • Page 89 6 testo 6610 probes Measuring range • Dewpoint: -40 to + 30 °C /-148 to +212 °F • Temperature: -40 to ±120 °C/-40 to +248 °F • (Temp. durability up to +180 °C/+356 °F) Material • Probe shaft: Stainless steel •...
  • Page 90 Dewpoint error, absolute |±% RH| as a factor of process dewpoint (°C Temperature error as a factor of process temperature and temperature of electronics Grey line: System error 6383 + probe, electronics 25 °C/+77 °F Black line: System error 6383 + probe, electronics –25 to 70 °C/-13 to 158° F...

  • Page 91: Testo 6617 Cable Probe (Self-Monitoring)

    6 testo 6610 probes 6.2.6. testo 6617 cable probe (self-monitoring) The testo 6617 probe is used if spatial separation of the transmitter and probe is required, particularly for media (gases, vapours) which can jeopardize/damage the humidity sensor (the testo 6617 has a self-monitoring and early-warning function for such applications).

  • Page 92: Self-Monitoring Of Cover Electrode

    4 Connections (protected against corrosion) 5 Dielectric layer The testo 6617 has a unique self-monitoring function. This allows early detection of damage to the sensor, e.g.: • Mechanical damage (e.g. scratches) • Damage from aggressive gases (e.g. acids in aerosol form) •...
  • Page 93 Probe shaft: Stainless steel • Line: Sheathed, FEP • Connector: ABS plastic For constant use in high humidity (> 80% rF at ≤ 30°C for > 12 h, > 60% rF at > 30°C for > 12 h), please contact us via www.testo.com/service-contact...
  • Page 94 6 testo 6610 probes Accuracy (at 25 °C/77 °F)* • Humidity ◦ ± (1.2 % RH + 0.007 x reading) for 0 to 90 % RH ◦ ± (1.6 % RH + 0.007 x reading) for 90 to 100 % RH ◦...
  • Page 95 (% RH) Temperature error as a factor of process temperature and temperature of electronics Grey line: System error 6383 + probe, electronics 25 °C/+77 °F Black line: System error 6383 + probe, electronics –25 to 70 °C/-13 to 158° F...

  • Page 96: Commissioning

    Installing the probe 6.3.1.1. Installing testo 6613/6614/6615/6617 probes If used with these probes, the testo 6383 transmitter is mounted on the wall, see 4.3. volume 1, see Commissioning. Install probe according to the application and the measuring and spatial conditions, cf. cases A1 to C below In processes with which condensate forms at the humidity probe, install the probe vertically (filter points downwards).
  • Page 97 (order no. 0554 6651) 5 Temperature probe B Duct mounting of testo 6614 heated probe When mounting the testo 6614 heated probe version, the temperature probe must also secured at a distance of approximately 10 cm from the humidity probe. An appropriate...

  • Page 98: Connecting/Removing The Probe To/From The Transmitter

    6.3.2. Connecting/removing the probe to/from the transmitter • Insert probe connector into socket of testo 6383 until it engages. The testo 6383 identifies which probe is connected. • To remove the probe, the lock release button on the probe must...

  • Page 99: Maintenance And Cleaning

    6 testo 6610 probes 6.4. Maintenance and cleaning 6.4.1. Replacing filters/protection caps 6.4.1.1. Replacing the filter/protection caps for wall version Do not damage the sensors when exchanging the filter/the protection cap and do not touch their surfaces! 1. Unscrew defective filter/protection cap (2) from probe shaft (1).

  • Page 100: Replacing The Filter/Protection Cap For Duct Versions

    6 testo 6610 probes 6.4.1.2. Replacing the filter/protection cap for duct versions The following descriptions applies to these probes: • testo 6613 • testo 6614 • testo 6615 • testo 6617 Do not damage the sensor when exchanging the filter/the protection cap and do not touch its surface! 1.

  • Page 101: Cleaning The Instrument And Filter/Protection Cap

    To maintain the extremely high accuracy of the testo 6610 probe, it is not possible for customers to change the sensor. Please contact your Testo Service team for this.

  • Page 102: Parameterizing, Adjusting And Analyzing Software (P2A Software)

    Specifications The P2A software is used for the parameterizing, adjustment and analysis of testo transmitters. The following applies: • Generally, all newer testo transmitters (as of 2007) are supported. • For each newly purchased Testo transmitter, a free software upgrade must be installed, containing the instrument drivers for all transmitters which are connectable at that time.

  • Page 103: System Requirements

    7 Parameterizing, adjusting and analyzing software (P2A software) 7.1.2. System requirements Operating system • Windows ® • Windows ® • Windows ® Computer The computer must fulfil the requirements of the respective operating system. The following requirements must additionally be fulfilled: •...

  • Page 104: Installing P2A Software

    Without the input of a licence key, the software will run only as a demo version (time limit 30 days). 1. You can download the software under the following link: https://www.testo.com/download-center. If the installation program does not start automatically: > Open download folder and start P2A.exe.

  • Page 105: Activating The Connection With The Instrument

    7 Parameterizing, adjusting and analyzing software (P2A software) by the instrument, after it has been connected to the electric power supply. Multiple instruments can be attached, however only one connection is active at all times. ✓ USB driver is installed (see 7.2.1.2. Installing USB driver). 1.
  • Page 106 7 Parameterizing, adjusting and analyzing software (P2A software) 1 Menu bar: Menu Command Explanation File Open Shows the Windows dialogue for searching and opening files. Save as Saves the parameters of an instrument or parameter file under a new name. Edit Copy Copies the parameters of the...
  • Page 107 7 Parameterizing, adjusting and analyzing software (P2A software) Icon File Explanation <Type> <Serial number> Parameter file <Date> <Time>.cfp Symbol shows a transmitter with a white File name can be changed. P for parameter file in The name can be selected freely, the upper left corner but it is recommended that you retain the reference to the...

  • Page 108: Editing Instrument/Parameter File

    7 Parameterizing, adjusting and analyzing software (P2A software) 7.3.2. Editing instrument/parameter file 7.3.2.1. Changing instrument/parameter file ✓ The desired instrument/parameter file is marked. [Change parameterization]. 1. Click on Properties of <Instrument type> <Serial number> dialogue is opened with the Change parameterization register.
  • Page 109 7 Parameterizing, adjusting and analyzing software (P2A software) Field Explanation Unit/analog output Unit: 0 to 1 V/5 V/10 V or 0 to 20 mA/4 to (graphic) 20 mA. Vertical: Current version of the analog output (cannot be changed). Horizontal: Min./max. scale end points of selected unit.
  • Page 110 7 Parameterizing, adjusting and analyzing software (P2A software) Field Explanation Limit values, relay 1 to 4/alarm In this mask, the relays or display values, alarm 1 to 4 alarms are parameterized. Relay x/alarm x Four relays or alarm values are available (optional).
  • Page 111 7 Parameterizing, adjusting and analyzing software (P2A software) Field Explanation Max control If switched to ON (NO contact) or OFF (NC contact) above the limit value; in the event of a subsequent undershooting of Limit value minus Hysteresis, it is switched to OFF (NO contact) or ON (NC contact).
  • Page 112 7 Parameterizing, adjusting and analyzing software (P2A software) Field Explanation Alarm delay The desired alarm delay for the alarms of the min/max control and the visual alarm is entered in the input field (0 to 3600 seconds possible). The alarm delay has no effect on the collective alarms.
  • Page 113 7 Parameterizing, adjusting and analyzing software (P2A software) Field Explanation process The calculation of the mixture dewpoint unit °C is dependent upon the type of the evaporation process: • with passive vaporization: H solution evaporates (with active vaporization) • with active vaporization: H solution is evaporated over a heated metal plate (with active...
  • Page 114 7 Parameterizing, adjusting and analyzing software (P2A software) Field Explanation Display brightness Setting the brightness between 0 and 9: (0 to 9) 0 = dark 9 = light Display contrast Setting the contrast between 0 and 9: (0 to 9) 0 = low contrast 9 = high contrast Display of the error...
  • Page 115 Setting the cycletime in which the self- every adjustment is to be performed. In order to receive reliable readings during the calibration or equalization period of the probe, testo recommends the shortest possible cycle time. A longer cycle time can be set in continuous operation.

  • Page 116: Saving Parameters

    The original name (Instrument type, Serial number) is suggested with the current date/time as standard, e.g. "testo 6383 01234578 061120 1403.cfp". For a standard installation, the files are saved under "C:\Documents and Settings\All Users\Shared Documents\P2A Software". The path can differ depending on the version of the operating system.

  • Page 117: Deleting Instrument/Parameter File

    7 Parameterizing, adjusting and analyzing software (P2A software) Edit > Paste 4. Click on in the menu bar. The parameters are transmitted to the file. You can also use the common keyboard shortcuts for copying (CTRL+C) and pasting (CTRL+V). Parameters can also be transmitted using drag & drop, where you drag the icon of the parameter file onto the icon of the target instrument file.

  • Page 118: Carrying Out Factory Reset

    7 Parameterizing, adjusting and analyzing software (P2A software) 2. Perform action: Action Explanation Carrying out factory Reset the unit, limit value and hysteresis reset parameters to factory settings (see below). Testing analog Test channel 1/optional 2/3 (see 7.3.3.3. output Testing analog output). Test switch outputs Manually switch relays 1 to 4 to test for proper function (see 7.3.3.4.
  • Page 119 7 Parameterizing, adjusting and analyzing software (P2A software) 2. Mark channel and test values. Field/button Explanation Check the analog outputs (see volume 1, see 4.4.5.6. Editing Main Menu Analysis). Current reading Readings are updated every second. Unit Unit according to the type of analog output.

  • Page 120: Testing Switch Output Relays 1 To 4

    7 Parameterizing, adjusting and analyzing software (P2A software) [OK] [Cancel] 3. Click on to close the dialogue. The analog output and the relay return to Measuring Mode again. 7.3.3.4. Testing switch output relays 1 to 4 ✓ The required instrument file is marked. 1.

  • Page 121: Displaying Min./Max. Values

    7 Parameterizing, adjusting and analyzing software (P2A software) [OK] [Cancel] 3. Click on to close the dialogue. The analog output returns to Measuring Mode again. 7.3.3.5. Displaying min./max. values The transmitter saves the minimum or maximum value for each channel (measured since the last voltage supply or since the last manual reset).

  • Page 122: Adjusting The Transmitter

    Also see 4.3.2.6. volume 1, see Adjusting the instrument,. 7.3.4.1. 1-point adjustment The testo 400/650 with precision humidity probe (order no. 0636 9741) is recommended as the reference measuring instrument for 1-point adjustment (offset) (see, 4.3.2.8., volume 1, Adjusting testo 6383 using testo handheld instrument).
  • Page 123 7 Parameterizing, adjusting and analyzing software (P2A software) 5. Confirm confirmation request. The adjustment is carried out. Field Explanation °C/°F Selection of the unit; only for temperature adjustment. Current reading Reading in °C/°F or % RH. Readings are updated every second. Reference value Entry of the read-off value from the reference measuring instrument.

  • Page 124: 2-Point Adjustment

    7 Parameterizing, adjusting and analyzing software (P2A software) 7.3.4.2. 2-point adjustment Also see volume 1, volume 1, see 2-point adjustment (humidity/temperature), page 32. 1. Expose the reference measuring instrument and the instrument to be adjusted to the same constant conditions and wait for equalization period to lapse.

  • Page 125: Adjusting The Analog Output

    7 Parameterizing, adjusting and analyzing software (P2A software) [Start wizard …] 5. Click on and follow the instructions of the wizard. The adjustment is performed when the wizard is closed. Field Explanation How much pressure Required field: Entry of the value read off at is actually applied the pressure sensor.
  • Page 126 7 Parameterizing, adjusting and analyzing software (P2A software) [Start wizard …] 4. Click on and follow the instructions of the wizard. The adjustment is performed when the wizard is closed. Field Explanation Default value The analog output value from the last performed adjustment is given at the output.

  • Page 127: Transmitter History

    7 Parameterizing, adjusting and analyzing software (P2A software) 7.3.5. Transmitter history Parameterizations, adjustment processes and messages that have occurred are registered in the transmitter with an operating hours stamp. In the history overviews (explained later in more detail), past processes and events can be made visible. For parameter changes or adjustments that are performed directly at the instrument (via the user menu), "Transmitter"...
  • Page 128 7 Parameterizing, adjusting and analyzing software (P2A software) Field Explanation User Name with which the user is logged into the operating system. "Transmitter" entry if the change was performed at the instrument. Comments Type of parameter change, e.g. "Unit of channel 1 from Pa to hPa".
  • Page 129 7 Parameterizing, adjusting and analyzing software (P2A software) Field Explanation Offset from 1-point adjustment: Value before the adjustment. Offset to 1-point adjustment: Value after the adjustment. Offset 2-point adjustment: Difference between target and actual value reported by instrument. Pressure n-point adjustment: Reference value set at specification the pressure sensor.
  • Page 130 7 Parameterizing, adjusting and analyzing software (P2A software) Field Explanation Operating hour Operating hour of the probe at which the probe change at the instrument was performed. Unit Unit during the adjustment. Offset from 1-point adjustment: Value before the adjustment. Offset to 1-point adjustment: Value after the adjustment.
  • Page 131 7 Parameterizing, adjusting and analyzing software (P2A software) Field Explanation Message e.g. "Scaling changed". The scaling was changed. Type of message e.g. early warning, status message. > To print out the history data, click on [Print]. The printing job is automatically sent to the default printer for the operating system.

  • Page 132: Tips And Assistance

    8.2. Accessories and spare parts An overview of the probes that can be used with the testo 6383 can be found in volume 1, see Overview of probe and filter types. Description Article no.
  • Page 133 TYGON hose ID 4.8 transparent 0086 0031, sold by the metre Silicone hose transparent, internal diameter 0086 0003, sold by 2 mm, for test pressure connections 6383 the metre Supply Mains unit (desktop, wall-mounted) 0554 1748 Mains unit (top-hat rail mounting)
  • Page 134 + probes ISO calibration certificate humidity, probes 0520 0076 DAkkS calibration certificate temperature, 0520 0261 probes For a complete list of all accessories and spare parts, please refer to the product catalogues and brochures or look up our website at: www.testo.com...

  • Page 135: Ordering Options For Testo 6383 Transmitter (0555 6383)

    8 Tips and assistance 8.2.1. Ordering options for testo 6383 transmitter (0555 6383) Order code Characteristic Axx Measuring range 0 to 50 Pa 0 to 50 Pa 0 to 100 Pa 0 to 500 Pa 0 to 10 hPa -10 to 10 Pa...
  • Page 136 8 Tips and assistance Order code Characteristic Humidity/temperature probe integrated in panel Preparation for external humidity/temperature probe testo 6610 probe Exx Ethernet Without Ethernet interface With Ethernet interface Fxx Differential pressure unit Pa/Min/Max hPa/Min/Max kPa/Min/Max mbar/Min/Max bar/Min/Max O /Min/Max inchH...
  • Page 137 8 Tips and assistance Order code Characteristic /Min/Max gr/ft /Min/Max ppmV/Min/Max °C /Min/Max °F /Min/Max kJ/kg /Min/Max (enthalpy) mbar/Min/Max (water vapour partial pressure) inch H O/Min/Max (water vapour partial pressure) °C (dewpoint for H mixture) °F (dewpoint for H mixture) % vol Hxx Relay Without relay...

  • Page 138: Ordering Options For Testo 6610 Probes (0555 6610)

    °C (dewpoint for H mixture) °F (dewpoint for H mixture) % vol (mixture humidityfor H 8.2.2. Ordering options for testo 6610 probes (0555 6610) Order code Characteristic Lxx Probe type Probe 6612 Probe 6613 Probe 6614 Probe 6615 Probe 6617...
  • Page 139 8 Tips and assistance Order code Characteristic 1 m cable length (testo 6613, 6614, 6615, 6617) 2 m cable length (testo 6613, 6614, 6615, 6617) 5 m cable length (testo 6613, 6614, 6615, 6617) 10 m cable length (testo 6613, 6614,...
