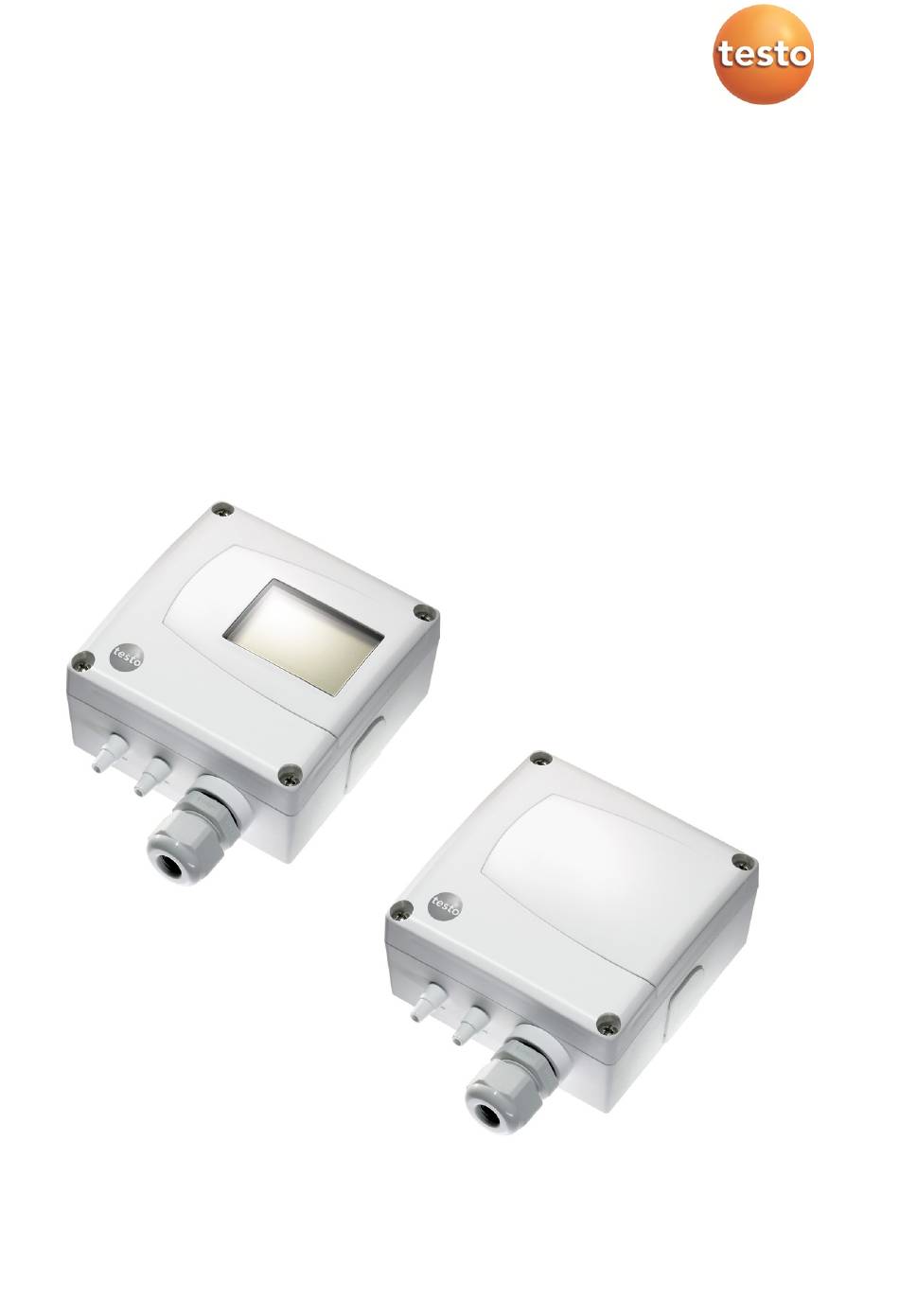

- Page 1 6321 · differential pressure transmitter P2A software · Parameterizing, adjusting and analyzing software Instruction manual...
-
Page 3: Safety And The Environment
Pos : 8 /TD /Sic herheit und Umw elt/Sic her heit gew ährl eisten/MU F 63xx /F achpersonal @ 3\m od_1234794940409_79.doc @ 26337 @ Any additional work must only be carried out by authorized personnel. Otherwise testo will not accept any responsibility for the proper functioning of the instrument after repair and for the validity... -
Page 4: About This Document
> At the end of its useful life, send the product to the separate collection for electric and electronic devices (observe local regulations) or return the product to Testo for disposal. Pos : 11 /TD/Ü berschriften/MUF /Zu di es em Dokum ent @ 3\mod_1234793991331_79.doc @ 26242 @ 1 About this document Pos : 12 /TD/Sic her heit und Umw elt/Z u dies em D ok ument/Verwendung (Standard) @ 0\m od_1173775068554_79.doc @ 337 @ 5... -
Page 5: Table Of Contents
3 Contents Pos : 17 /TD/Ü berschriften/MUF /Inhalt @ 3\m od_1234794019831_79.doc @ 26261 @ 1 Contents Safety and the environment ............3 About this document ..............4 Contents ..................5 Transmitter ..................7 4.1. Specifications .................. 7 4.1.1. Functions and use ................7 4.1.2. - Page 6 Tips and assistance ..............37 6.1. Questions and answers ..............37 6.2. Accessories and spare parts ............37 6.2.1. Ordering options for testo 6321 transmitter (0555 6321) ....38 Pos : 18 /TD/--- Seitenwec hs el --- @ 0\m od_1173774430601_0.doc @ 283 @...
-
Page 7: Transmitter
Pos : 23 /TD/Leistungs bes chr eibung/T ec hnische D aten/MUF 63xx/MUF 6781 Abmess ungen @ 3\mod_1239806330094_79.doc @ 31183 @ 3 4.1.3. Dimensions Pos : 24 /TD/Leistungs bes chr eibung/T ec hnische D aten/MUF 63xx/MUF 6321 @ 3\m od_1241601145321_79.doc @ 32604 @ 35555555555555555555... -
Page 8: Technical Data
4 Transmitter 4.1.4. Technical data Parameter • Differential pressure Accuracy The specifications are only valid if the positive pressure is applied at the positive pressure connection. • 1.2 % of measuring range, additional ±0.3 Pa intrinsic error • = 0.05 % of measuring range per degree Kelvin of K slope drift deviation from nominal temperature 22 °C •... - Page 9 2500 hPa Upon delivery and following a factory reset the readings are shown in the display in the unit that was ordered via the KMAT option Fxx, see Ordering options for testo 6321 transmitter (0555 6321) page 38. Meas. cycle •...
- Page 10 4 Transmitter Maximum load • 4-wire: 500 Ω (power output) Maximal load • 10 kΩ (voltage output) Analog output • 0 to 1 V ± 2.5 mV (4-wire) or • 0 to 5 V ± 12.5 mV (4-wire) or • 0 to 10 V ±...
-
Page 11: Product Description
Pos : 25 /TD/Ü berschriften/MUF /1.2/2.2 Produktbeschr eibung @ 3\m od_1234258723551_79.doc @ 24008 @ 2 4.2. Product description Pos : 26 /TD/Produktbes chr eibung/Ü bersicht/MUF 63xx/Auf einen Blick MUF 6321 @ 3\mod_1241599865646_79.doc @ 32583 @ 3 4.2.1. At a glance... -
Page 12: Scaling
PLC. With the alarm definition, however, the physical measuring range limits are decisive. Pos : 28 /TD/Produktbes chr eibung/Ü bersicht/MUF 63xx/T abell e Skali erung MUF 6321 @ 3\m od_1241617696391_79.doc @ 32646 @ Measuring range/ Maximum scaling standard scaling... -
Page 13: Commissioning
4 Transmitter Measuring range/ Maximum scaling standard scaling -20 to 20 hPa -30 to 30 -50 to 50 hPa -100 to 100 -100 to 100 hPa -200 to 200 -500 to 500 hPa -1000 to 1000 -1000 to 1000 hPa -2000 to 2000 -2000 to 2000 hPa -4000 to 4000... -
Page 14: Wiring The Instrument
(see arrows). 2. Insert screw (4) through hole (3) and screw into rear panel bracket. Pos : 31 /TD/Erste Schritte/MUF 63x x/Gerät v erdr ahten 6321 @ 3\mod_1241618087115_79.doc @ 32667 @ 344 4.3.2. Wiring the instrument... - Page 15 4 Transmitter CAUTION Damage to electronic components! > The terminal strip can be removed from the circuit board in order to screw on the cable ends. After wiring, be sure to completely attach the terminal strip on the contact pins as pre- assembled.
-
Page 16: 4-Wire System
4 Transmitter 4.3.2.1. 4-wire system Voltage output (4-wire, 0 to 1 V/0 to 5 V/0 to 10 V)/voltage output (4-wire, 4 to 20 mA): U = 20 to 30 V DC/AC 4.3.2.2. 3-wire system All ground connections are connected to one another (= one collective ground connection). -
Page 17: Maintenance And Cleaning
Do not use aggressive cleaning agents. • Do not use any solvents. Pos : 34 /TD/Produkt verw enden/MUF 63xx /Status-W arnm eldung en/Nam ur F ehl erbedi ngungen 6321 @ 4\mod_1253024846257_79.doc @ 50363 @ 3 4.4.2. Namur fault conditions If the faults named in the following table occur, the analog outputs output special values that enable a general fault warning in the higher-level control system. -
Page 18: Parameterizing, Adjusting And Analyzing Software (P2A Software)
The P2A software is used for the parameterization, adjustment and analysis of Testo transmitters. The following applies: • If a Testo transmitter is bought at a later stage (and is therefore more recent than the existing P2A software version), a software update is required. -
Page 19: System Requirements
5 Parameterizing, adjusting and analyzing software (P2A software) Parameter file Parameter files are not tied to a specific individual transmitter and contain only parameter data/no history data. If you use various instruments of the same type, you can create parameter files once (e.g. by saving the appropriate instrument file as the parameter file) and transmit these onto the other instruments. -
Page 20: First Steps
3. Click on [Finish] to complete the software installation 5.2.1.3. P2A software upgrade 1. You can find the P2A software upgrade on the Testo website www.testo.com under the product-specific downloads. Download and save P2A software upgrade. 2. Start P2A upgrade.exe file. -
Page 21: Starting The Software
5.2.2. Starting the software 5.2.2.1. Starting the program Windows program menu Windows ® [Start] > All Programs > Testo > P2A Software > Click on (double-click on left mouse button). Windows ® > Click on [Start] | right mouse button |... -
Page 22: Using The Software
5 Parameterizing, adjusting and analyzing software (P2A software) Pos : 43 /TD/Ü berschriften/MUF /3.3 Softw are verw enden @ 3\m od_1234258679599_79.doc @ 23989 @ 2 5.3. Using the software Pos : 44 /TD/Produkt verw enden/MUF 63xx /P2A/Softwar e v erwenden @ 3\mod_1234262654547_79.doc @ 24162 @ 3 5.3.1. - Page 23 5 Parameterizing, adjusting and analyzing software (P2A software) Menu Command Explanation Check instrument Checks the connections to a connections connected instrument without the instrument having to be activated. Service A text file with the most important information on the computer and the software is opened via Display service data.
-
Page 24: Editing Instrument/Parameter File
5 Parameterizing, adjusting and analyzing software (P2A software) 4. Function buttons: Dialogues on editing and testing the instrument are opened by means of the buttons. [Change parameterization] see 5.4.2.1 Changing instrument/parameter file [Test/analyze transmitter] see 5.4.3 Chapter Analyzing/testing the transmitter [Adjusting the transmitter] see 5.3.4 Chapter Adjusting the transmitter... - Page 25 5 Parameterizing, adjusting and analyzing software (P2A software) 2. Change or enter parameters in the corresponding fields. Pos : 46 /TD/Produkt verw enden/MUF 63xx /P2A/Ei nheit / Anal ogausgang ohne R elais @ 4\mod_1244205188941_79.doc @ 44503 @ Field Explanation Unit/ All analog outputs are parameterized in this mask.
-
Page 26: Creating A New Instrument File
The original name (Instrument type, Serial number) is suggested with the current date/time as standard, e.g. "testo 6321 01234578 061120 1403.cfp". For a standard installation, the files are saved under "C:\Documents and Settings\All Users\Shared Documents\P2A Software". The path can differ depending... -
Page 27: Opening The Parameter File
5 Parameterizing, adjusting and analyzing software (P2A software) Pos : 49 /TD/Produkt verw enden/MUF 63xx /P2A/Param eterdatei öffnen @ 3\m od_1234358634164_79.doc @ 24341 @ 4 5.3.2.4. Opening the parameter file All parameter files stored in the standard directory path are automatically displayed in the file list when the software is started. -
Page 28: Analyzing/Testing The Transmitter
3. Confirm control query to perform the reset. The values are reset to the customer-specific factory settings. 4. Click on [OK] [Cancel] to close the dialogue. Pos : 55 /TD/Produkt verw enden/MUF 63xx /P2A/Analogausgang testen 6321 @ 4\mod_1244461179628_79.doc @ 44787 @ 4... -
Page 29: Testing Analog Output
5 Parameterizing, adjusting and analyzing software (P2A software) 5.3.3.3. Testing analog output ✓ The required instrument file is marked. 1. Click on [Test/analyze transmitter]. Properties of <Instrument type> <Serial number> dialogue is opened with the Test/analyze transmitter register. 2. Mark channel and test values. Field/button Explanation Transmitter test... -
Page 30: Displaying Min./Max. Values
5 Parameterizing, adjusting and analyzing software (P2A software) Field/button Explanation [Activate] The entered defined value is forwarded to the analog output by clicking. The current reading is frozen. A warning informs that the value is being transmitted to the connected instrument in the event of existing cabling. - Page 31 5 Parameterizing, adjusting and analyzing software (P2A software) Field/button Explanation Channel Channel 1 min./max. Value Min. or max. value, 1 decimal place. Unit Unit selected in Unit/analog output. 3. Reset Min./max. values. 4. Click on [Reset min./max. values]. 5. Confirm control query to perform the reset. The values are reset to the factory settings.
-
Page 32: Adjusting The Transmitter
5.3.4. Adjusting the transmitter Pos : 58 /TD/Produkt verw enden/MUF 63xx /P2A/Messum form er abgleic hen 6321 @ 4\mod_1244460546736_79.doc @ 44755 @ This function is used to adjust an attached instrument. The following adjustments may be carried out using the software: •... -
Page 33: Adjusting The Analog Output
9. Disconnect connections between the pressure sensor and the pressure connections of the testo 6321. Pos : 60 /TD/Produkt verw enden/MUF 63xx /P2A/Analogausgang abgleic hen _6321 @ 4\mod_1244461217550_79.doc @ 44819 @ 4 5.3.4.2. - Page 34 5 Parameterizing, adjusting and analyzing software (P2A software) [Start wizard …] 4. Click on and follow the instructions of the wizard. The adjustment is performed when the wizard is closed. Field Explanation Default value The analog output value from the last performed adjustment is given at the output.
-
Page 35: Transmitter History
5 Parameterizing, adjusting and analyzing software (P2A software) 5.3.5. Transmitter history Pos : 62 /TD/Produkt verw enden/MUF 63xx /P2A/Messum form er-Historie 6321 @ 4\m od_1244458681753_79.doc @ 44723 @ Parameterizations and adjustment processes are registered in the transmitter with an operating hours stamp. - Page 36 5 Parameterizing, adjusting and analyzing software (P2A software) Field Explanation Selection of adjustment histories: n-point adjustments Analog adjustments. Operating hours / Operating hour/time stamp at which the date/time change at the instrument was performed. Name with which the user is logged into the User operating system.
-
Page 37: Tips And Assistance
Pos : 66 /TD/Ü berschriften/8.2 Z ubehör und Ers atz teil e @ 0\mod_1177402058734_79.doc @ 1102 @ 2 6.2. Accessories and spare parts Pos : 67 /TD/Ti pps und Hilfe/Z ubehör und Ers atz teil e/MUF 63xx/Z ubehör Ersatzteile MUF 6321 @ 3\mod_1239975742627_79.doc @ 31715 @ Description Article no. -
Page 38: Ordering Options For Testo 6321 Transmitter (0555 6321)
6 Tips and assistance Pos : 68 /TD/Ti pps und Hilfe/Z ubehör und Ers atz teil e/MUF 63xx/Bes tell optionen MUF 6321 @ 3\m od_1239975748830_79.doc @ 31736 @ 3 6.2.1. Ordering options for testo 6321 transmitter (0555 6321) Order code... - Page 39 6 Tips and assistance Order code Characteristic White housing, without testo logo White housing, black-and-white testo logo Fxx Differential pressure unit Pa/Min/Max hPa/Min/Max kPa/Min/Max mbar/Min/Max bar/Min/Max mm H O /Min/Max inch H O /Min/Max inch HG /Min/Max kg/cm /Min/Max PSI/Min/Max...
- Page 40 Testo SE & Co. KGaA Celsiusstr. 2 79822 Titisee-Neustadt Germany Tel.: +49 7653 681-0 E-Mail: info@testo.de www.testo.com 0970 6321 en 04...
