Project Timber Evolution My Den Building Instructions page 5

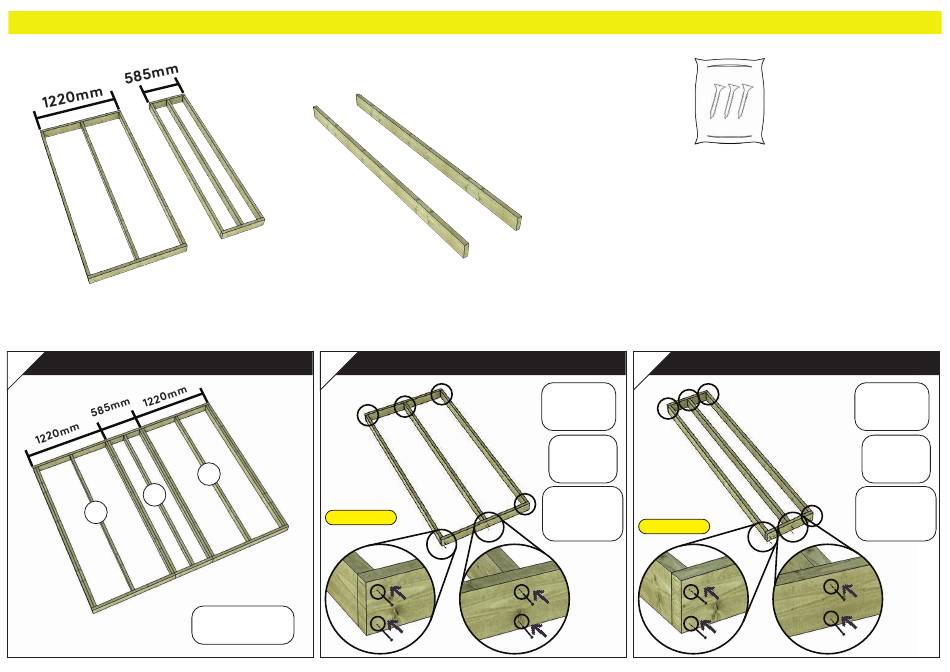

Base Modules
1
Base Module fixing
B
A
Side
Front
Gable Bearers
(For each end of the assebled base)
2
A
Side
ID: PT25385
Module A x2
Module B x1
Base Module Woodkits
Base Module fixing
1220mm
Module
100mm
Screws
Pilot drill
holes before
fixing
Fixing Kit
Parts List required:
1. Base Module A - 1220mm x 2528mm (2)
[ID: PT23585]
2. Base Module B - 585mm x 2528mm (1)
[ID: PT25386]
3. Gable Bearers - 38mm x 2452mm (2)
[ID: PT23598]
3
Base Module fixing
Side
ID: PT25386
585mm
Module
100mm
Screws
Pilot drill
holes before
fixing
