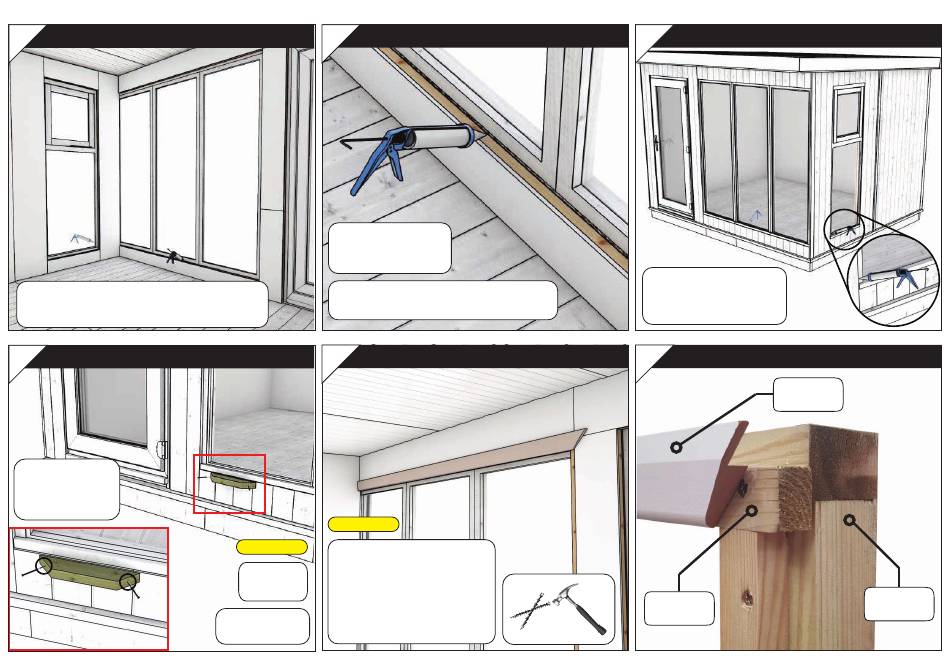

Project Timber Evolution My Den Building Instructions page 22

78
Silicone Sealant - optional
The window frames can also be sealed with
silicone sealant around the edges where the
window frames meet the timber framing.
81
Door Stop fixing
28mm x 28mm
x 250mm
Door Stop
79
Silicone Sealant - optional
* Silicone sealant
is not provided with
the building.
Silicone sealant can be added around
the edges of the window frames
82
ID: 21084
ID: PT21078
Fit the top architrave over
the battens on the window
50mm
frame. Secure the
Screws
architrave using panel pins
See top window
Pilot drill holes
architrave detail.
before fixing
Internal Cover Trims
80
Silicone Selant - optional
Repeat previous stage
where silicone sealant
is applied.
83
Top Window Architrave Detail
Top window
architrave
Window
battens
Window
frames
