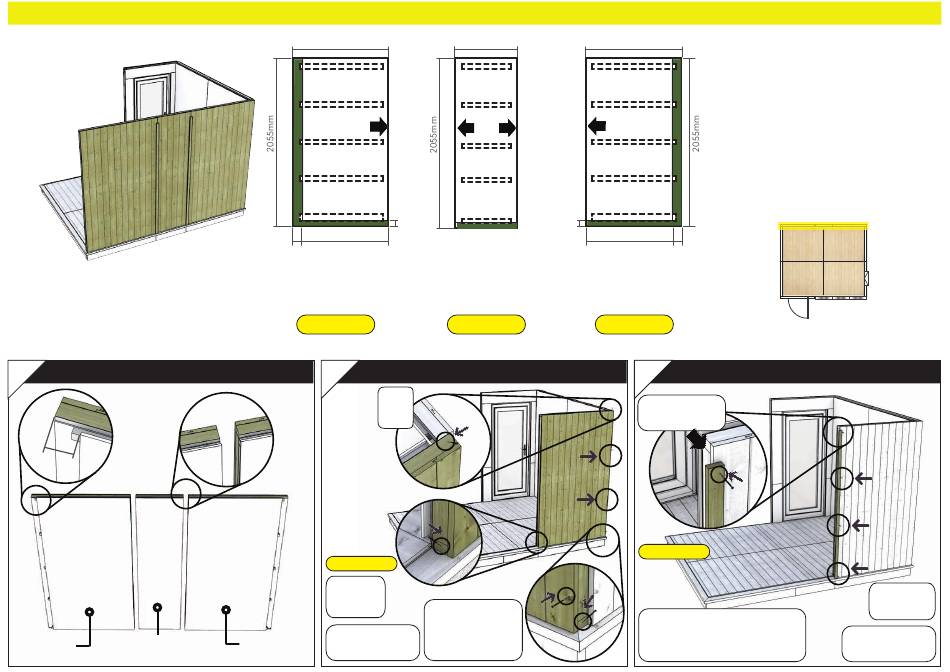

Project Timber Evolution My Den Building Instructions page 11

Side
Rear
(RIGHT)
29 Back Panels Position
74mm
585mm
1220mm
Back Panel (Centre)
Back Panel (LEFT)
Rear Wall Panels Section Stages
1220mm
Lining Flush
74mm 1146mm
Back Panel
LEFT (1220mm)
Diagram
ID: PT25544
30 Back Panel (LEFT) Stages
Angle
screw
at top
ID: PT25544
50mm
Screws
Pilot drill holes
1220mm
before fixing
Back Panel (Right)
585mm
Lining
Flush
16mm 16mm
Back Panel
CENTRE (585mm)
Diagram
ID: PT25524
Back
Align and fix
the back plain
(LEFT) panel
1220mm
Parts List required:
1. Back Panel 1220mm
LEFT (1) and RIGHT (1)
Lining Flush
2. Back Panel 585mm (1)
3. Rear Cloaking Strip (2)
60mmx16mmx2012mm
Panel Position Diagram
1146mm 74mm
Side
(Left)
Back Panel
RIGHT (1220mm)
Diagram
ID: PT25545
31 Back Cloaking Strip fixing
Gap for guttering
at top
ID: PT21078
Side
(RIGHT)
Position and fix the
Back Cloaking Strip (CS)
60mmx16mmx2012mm
Rear
Side
(Right)
Front of Building
50mm
Back
Screws
Pilot drill holes
before fixing
