Project Timber Evolution My Den Building Instructions page 13

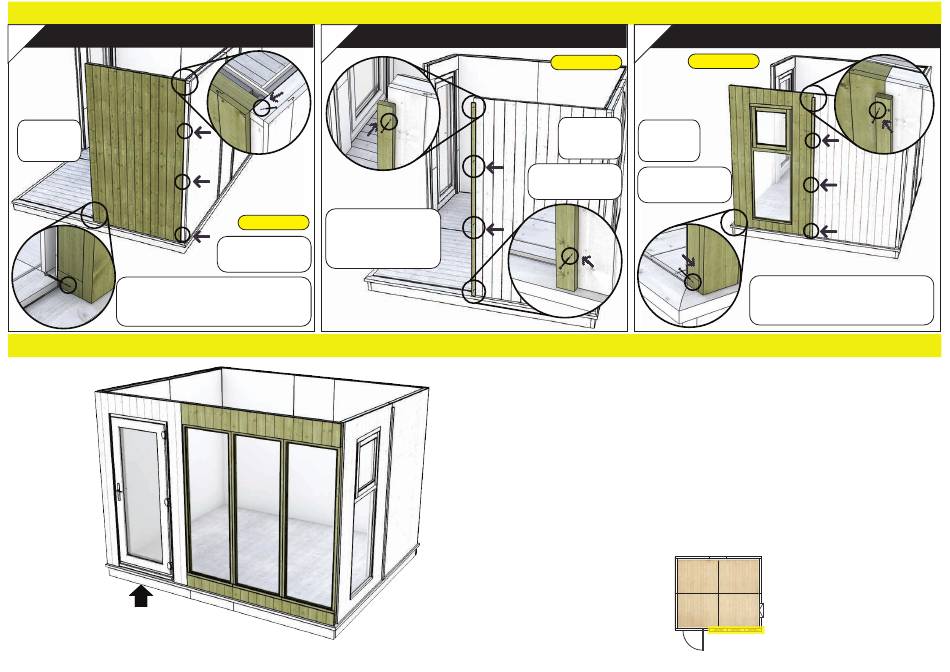

Right Gable (Low) Panel Stages
35
50mm
Screws
Side
(RIGHT)
Position and fix the side
Plain Gable Panel (right)
Door
(LEFT)
Gable Wall (RIGHT) Panel Stages
36
RIGHT - Gable Cloaking Strip (CS)
Back
Position and fix
ID: PT25535
the right gable
Pilot drill holes
cloaking strip
before fixing
(RIGHT)
Door on the Left Panel Stages
(RIGHT)
Front
ID: PT21078
50mm
Screws
Pilot drill holes
before fixing
Side
Parts List required:
1. Window Glazing Unit (W610mm) - (3) [ID: PT18490]
2. Plain Panel TOP (W1830mm) - (1) [ID: PT20322]
3. Plain Panel BOTTOM (W1830mm) - (1) [ID: PT25547]
Side
37
Side Opening Window (RIGHT) fixing
ID: PT25522
Front
50mm
Screws
Pilot drill holes
before fixing
Side
(RIGHT)
Position and fix the side
Window Panel (RIGHT)
Panel Position Diagram
Rear
Side
Side
(Left)
(Right)
Front of Building
