Project Timber Evolution My Den Building Instructions page 17

Front

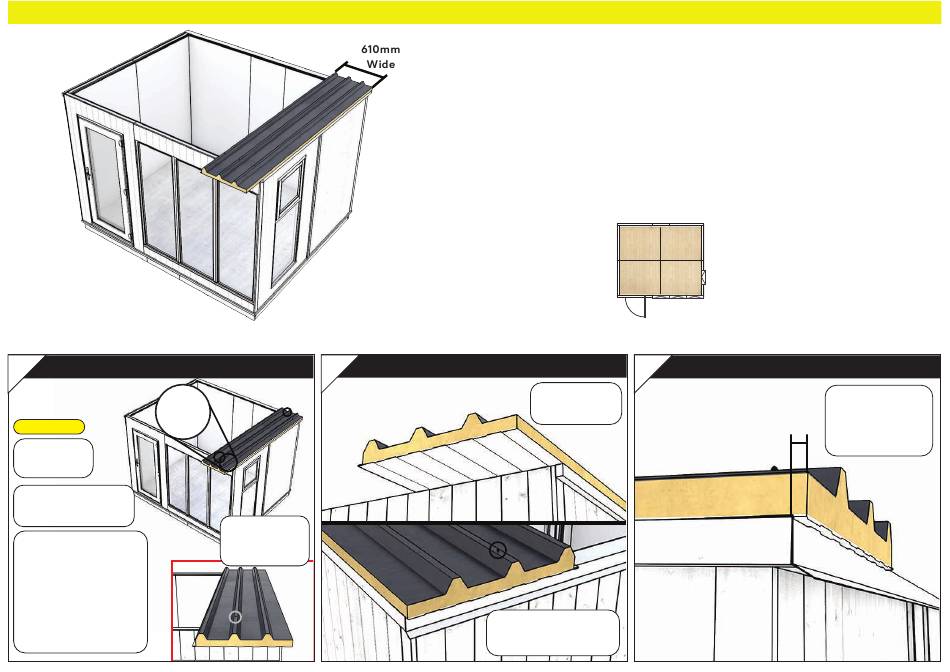

56 Roof Section Stages
See
Cross-section
diagram
ID: 21192
115mm Metal
Roof Screws
* Use Step ladder when
fixing the roof sections,
2 people are required.
Position the 610mm
width of roof section
and secure to fit
underneath to the
wall panels. Secure
the metal roof the
wall panels with
metal screws.
Roof Section Stages
Side
(RIGHT)
Roof Section Stages
57
Screws must fix
through the
top ridge
Side
(RIGHT)
Parts List required:
1. Metal Roof Section L2920mm x W610mm - (1) [ID: 21192]
2. 115mm Metal Roof Screws
Side
(Left)
Roof section
Front position
Side
(RIGHT)
Only 1 screw is required
at the back to hold the
position of the roof
Back
Floor Plan
Rear
Side
(Right)
Front of Building
58 Roof Section Stages
13mm
Side
Roof sections
overhang
13mm at the
rear.
Rear
