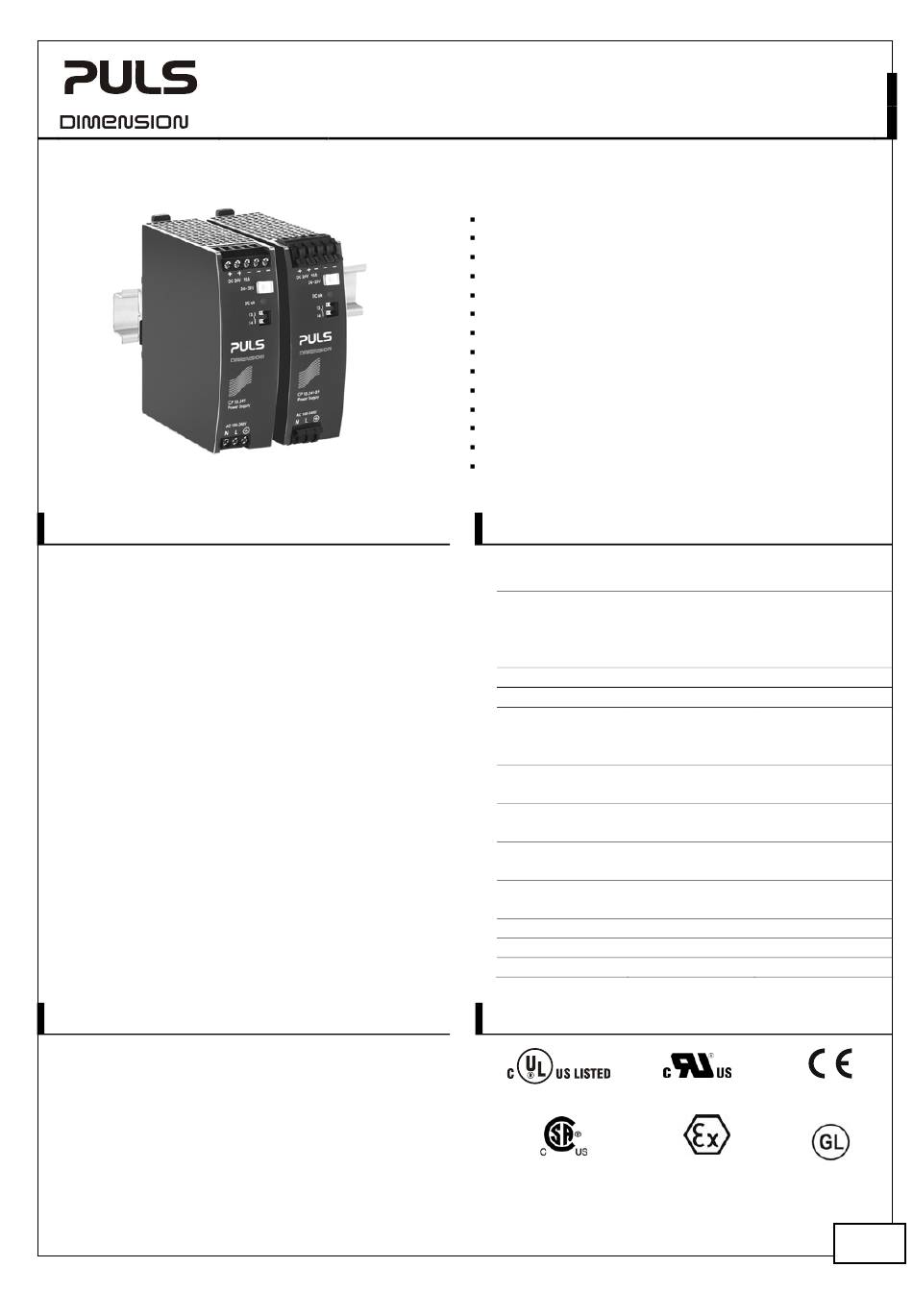

Puls Dimension CP Series Manual

CP-Series
G D
ENERAL ESCRIPTION

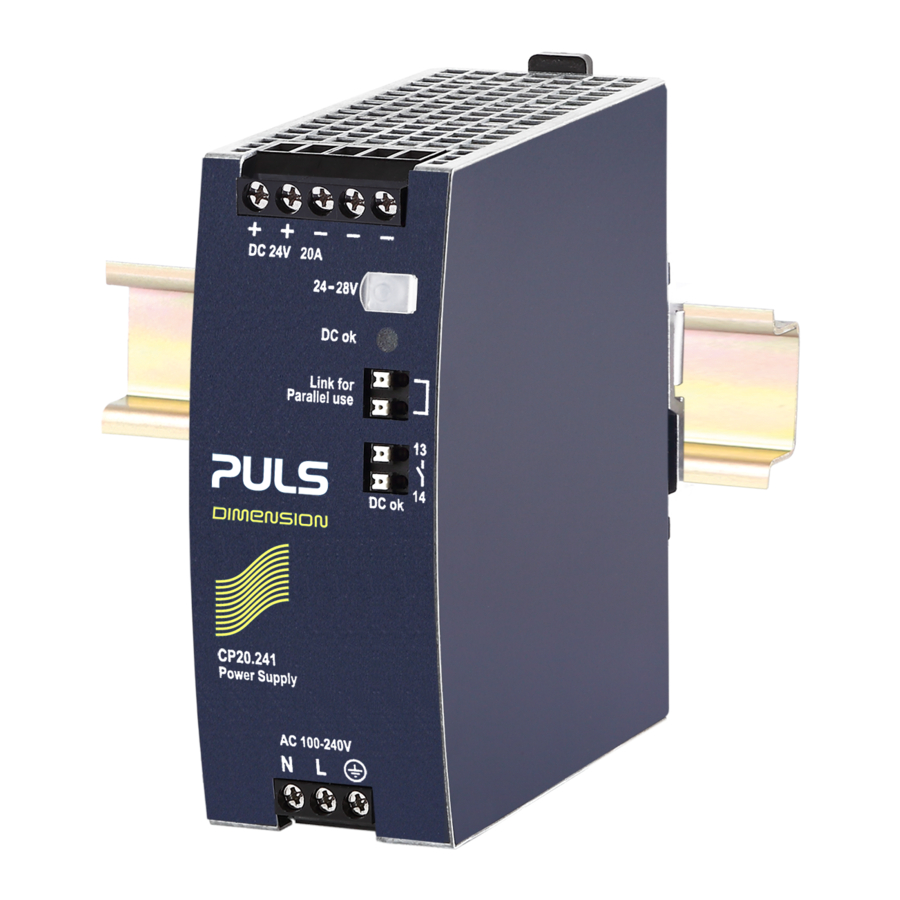

The DIMENSION CP-Series units are high-end power
supplies in a medium price range without compromising
quality, reliability and performance. The CP-Series is
part of the DIMENSION power supply family. The most
outstanding features of
efficiency, advanced inrush current limitation, active PFC
and the wide operational temperature range.
The CP-Series includes all the essential basic functions.
The devices have a power reserve of 20% included,
which may even be used continuously at temperatures
up to +45°C. Additionally, the CP10 can deliver three
times the nominal output current for at least 12ms
which helps to trip fuses on faulty output branches.
The CP10.241-S1 is equipped with quick-connect spring-
clamp terminals for a fast and reliable electrical
connection. Spring-clamp terminals are the preferred
terminals when applications are exposed to mechanical
vibration.
High immunity to transients and power surges as well as
low electromagnetic emission, a DC-OK relay contact
and a large international approval package for a variety
of applications makes this unit suitable for nearly every
situation.
O N
RDER UMBERS
Power Supply CP10.241
CP10.242
CP10.241-S1 24-28V with spring-clamp
Accessory ZM12.SIDE
YR40.242
Jun. 2015 / Rev. 1.2 DS-CP10.241-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
CP10.241, CP10.242, CP10.241-S1
CP10.241 are the high
24-28V Standard unit
With Extended DC Input
(DC 110-300V)
terminals
Side mount bracket
Redundancy module
www.pulspower.com Phone +49 89 9278 0
24V, 10A, S
P S
OWER UPPLY
AC 100-240V Wide-range Input
Width only 39mm
Optional with Spring-clamp Terminals (CP10.241-S1)
Optional with Extended DC Input Range (CP10.242)
Efficiency up to 95.2%, Excellent Partial Load Efficiency
20% Output Power Reserves
PLUS
Safe Hiccup Overload Mode
Easy Fuse Breaking due to High Overload Peak Current
Active Power Factor Correction (PFC)
Minimal Inrush Current Surge
Full Power Between -25°C and +60°C
DC-OK Relay Contact
Meets ITE, ATEX, Class I Div2 and SEMI F47 Requirements
3 Year Warranty
S - D
HORT FORM
Output voltage DC 24V
Adjustment range 24 – 28V
Output current 10A
12A
8.6A
10.3A
Output power 240W / 288W
Output ripple < 50mVpp
AC Input voltage AC 100-240V
Mains frequency 50-60Hz
AC Input current 2.15 / 1.13A
Power factor 0.99 / 0.97
AC Inrush current 6 / 9A pk
DC Input DC 110-150V
DC 110-300V
Efficiency 93.6 / 95.2%
Losses 16.4 / 12.1W
Temp. range -25°C to +70°C
Derating 6W/°C
Hold-up time 37 / 37ms
Dimensions 39x124x117mm
Weight 600g / 1.3lb
M
ARKINGS
IND. CONT. EQ.
UL 508
IECEx
Class I Div 2
II 3G Ex nA nC II T3 Gc
planned
Germany
P I
INGLE HASE NPUT
ATA
at 24V, amb <60°C
at 24V, amb <45°C
at 28V, amb <60°C
at 28V, amb <45°C
at <60°C / <45°C
20Hz to 20MHz
-15%/ +10%
±6%
at 120 / 230Vac
at 120 / 230Vac
at 40°C 120/230Vac
±20%
CP10.241
±20% CP10.242
at 120 / 230Vac
at 120 / 230Vac
operational
+60 to +70°C
at 120 / 230Vac
WxHxD
UL 60950-1
EMC, LVD
ATEX
Marine, planned
planned
1/27
