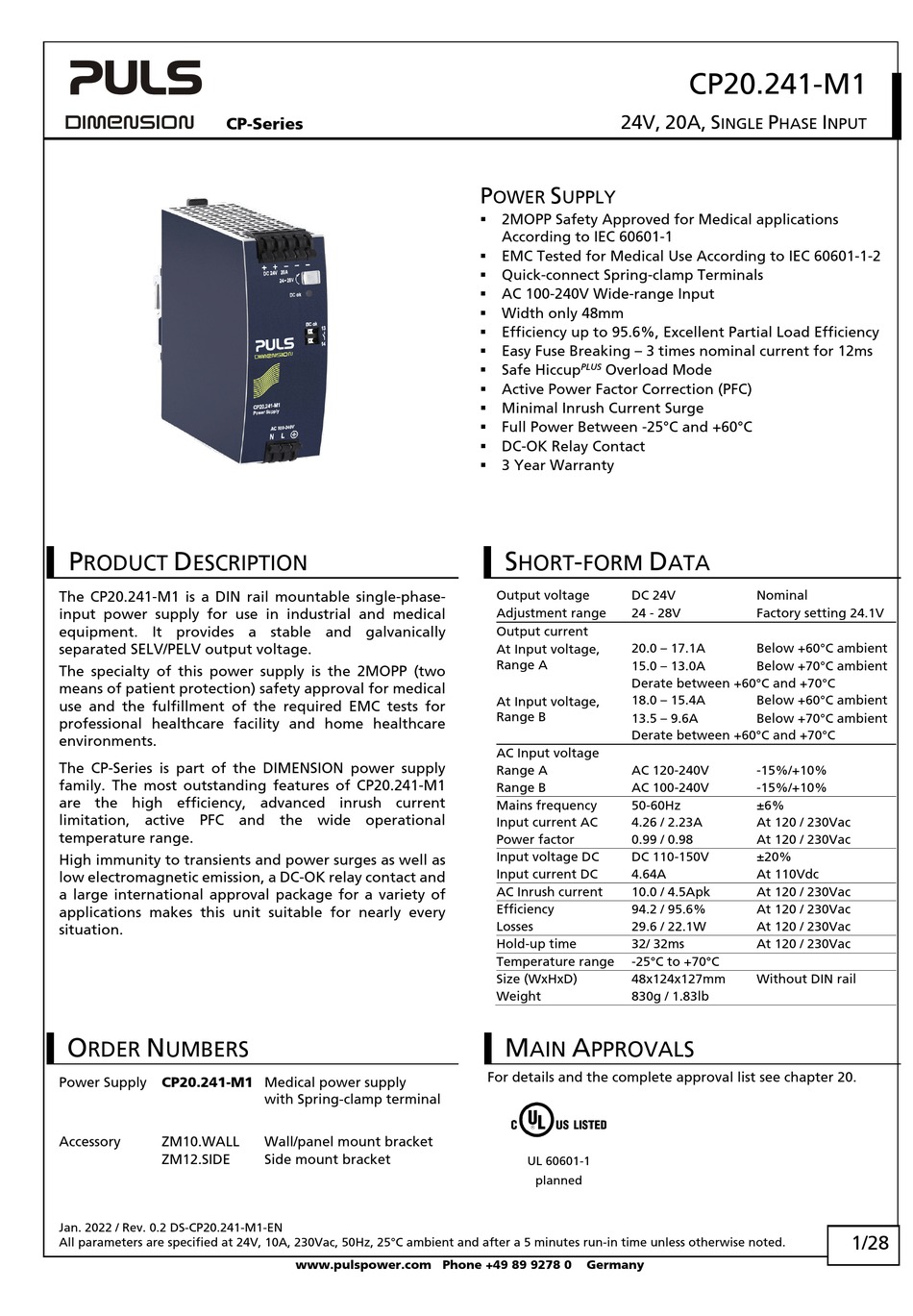

CP-Series
P D
RODUCT ESCRIPTION

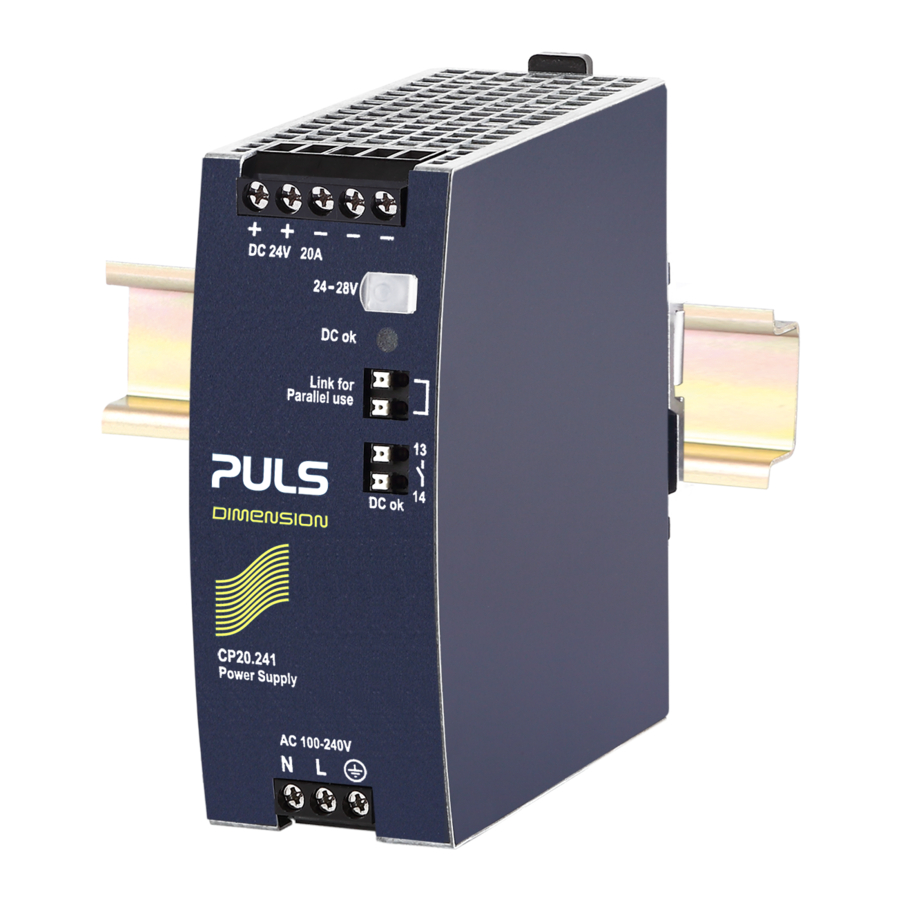

The CP20.241-M1 is a DIN rail mountable single-phase-
input power supply for use in industrial and medical
equipment. It provides a stable and galvanically
separated SELV/PELV output voltage.
The specialty of this power supply is the 2MOPP (two
means of patient protection) safety approval for medical
use and the fulfillment of the required EMC tests for
professional healthcare facility and home healthcare
environments.
The CP-Series is part of the DIMENSION power supply
family. The most outstanding features of CP20.241-M1
are the high efficiency, advanced inrush current
limitation, active PFC and the wide operational
temperature range.
High immunity to transients and power surges as well as
low electromagnetic emission, a DC-OK relay contact and
a large international approval package for a variety of
applications makes this unit suitable for nearly every
situation.
O N
RDER UMBERS
Power Supply CP20.241-M1 Medical power supply
Accessory ZM10.WALL
ZM12.SIDE
Jan. 2022 / Rev. 0.2 DS-CP20.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
with Spring-clamp terminal
Wall/panel mount bracket
Side mount bracket
www.pulspower.com Phone +49 89 9278 0
24V, 20A, S
P S
OWER UPPLY
 2MOPP Safety Approved for Medical applications
According to IEC 60601-1
 EMC Tested for Medical Use According to IEC 60601-1-2
 Quick-connect Spring-clamp Terminals
 AC 100-240V Wide-range Input
 Width only 48mm
 Efficiency up to 95.6%, Excellent Partial Load Efficiency
 Easy Fuse Breaking – 3 times nominal current for 12ms
 Safe Hiccup PLUS Overload Mode
 Active Power Factor Correction (PFC)
 Minimal Inrush Current Surge
 Full Power Between -25°C and +60°C
 DC-OK Relay Contact
 3 Year Warranty
S - D
HORT FORM
Output voltage DC 24V
Adjustment range 24 - 28V
Output current
20.0 – 17.1A
At Input voltage,
Range A
15.0 – 13.0A
Derate between +60°C and +70°C
18.0 – 15.4A
At Input voltage,
Range B
13.5 – 9.6A
Derate between +60°C and +70°C
AC Input voltage
Range A AC 120-240V
Range B AC 100-240V
Mains frequency 50-60Hz
Input current AC 4.26 / 2.23A
Power factor 0.99 / 0.98
Input voltage DC DC 110-150V
Input current DC 4.64A
AC Inrush current 10.0 / 4.5Apk
Efficiency 94.2 / 95.6%
Losses 29.6 / 22.1W
Hold-up time 32/ 32ms
Temperature range -25°C to +70°C
Size (WxHxD) 48x124x127mm
Weight 830g / 1.83lb
M A
AIN PPROVALS
For details and the complete approval list see chapter 20.
UL 60601-1
planned
Germany
CP20.241-M1
P I
INGLE HASE NPUT
ATA
Nominal
Factory setting 24.1V
Below +60°C ambient
Below +70°C ambient
Below +60°C ambient
Below +70°C ambient
-15%/+10%
-15%/+10%
±6%
At 120 / 230Vac
At 120 / 230Vac
±20%
At 110Vdc
At 120 / 230Vac
At 120 / 230Vac
At 120 / 230Vac
At 120 / 230Vac
Without DIN rail
