Puls DIMENSION CP Series Manual

4v, 5a, single phase input
Hide thumbs Also See for DIMENSION CP Series:
Table of Contents

Advertisement

Quick Links

Download this manual

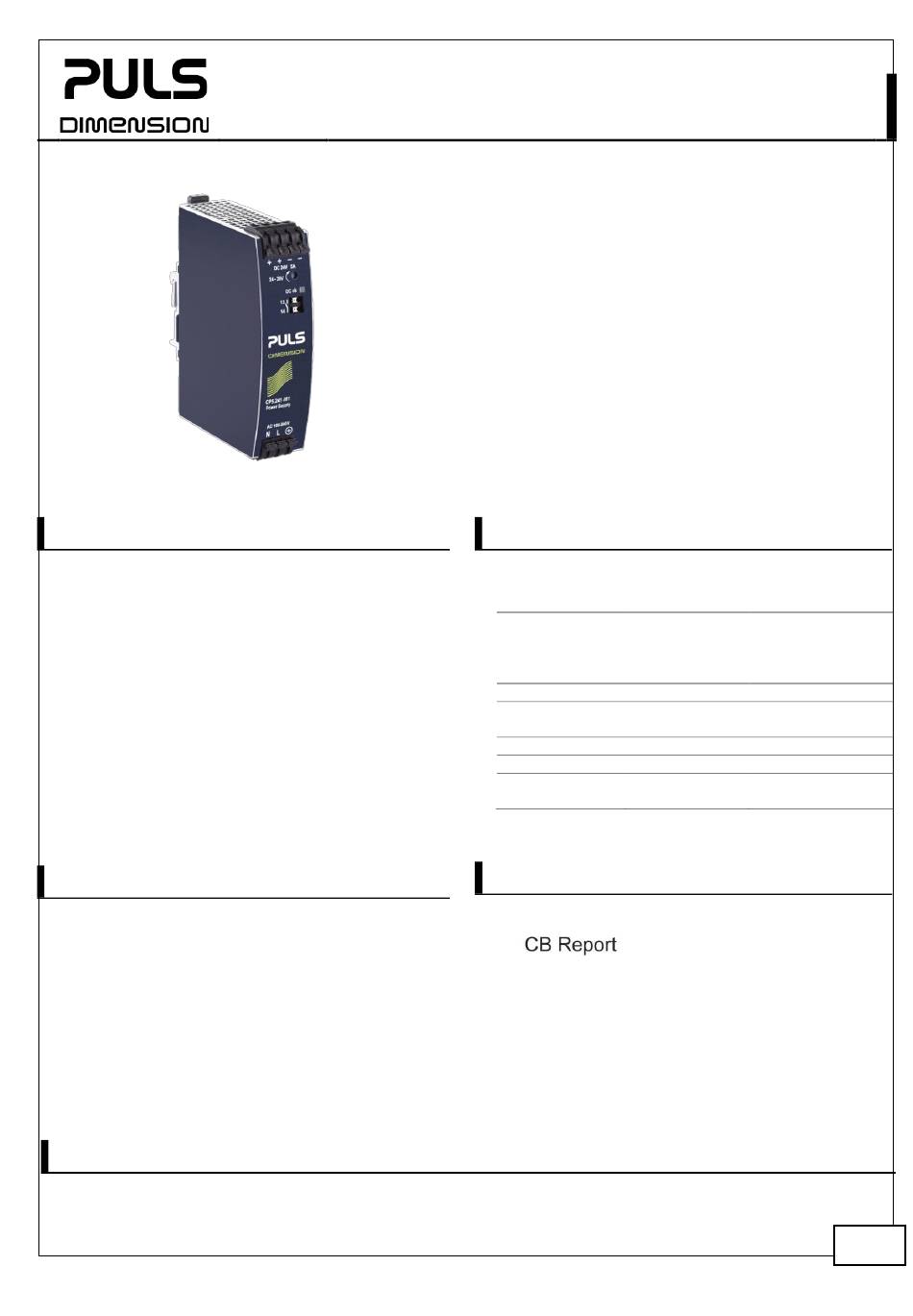

CP-Series
P
D
RODUCT
ESCRIPTION

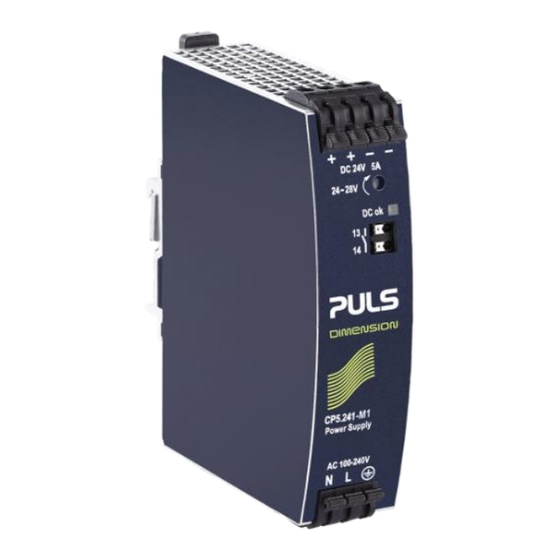

The CP5.241-M1 is a DIN rail mountable single phase input
power supply for industrial use and for use in medical
equipment. It provides a stabilized and galvanically separated
SELV/PELV output voltage.
The specialty of this power supply is the 2MOPP (Two Means of
Patient Protection) safety approval for medical use and the
fulfillment of the required EMC tests for professional healthcare
facility and home healthcare environments.
The CP-Series is part of the DIMENSION power supply family.
The most outstanding features of this family are the high
efficiency, advanced inrush current limitation and active
High immunity to transients and power surges as well as low
electromagnetic emission, a DC-OK relay contact and a large
international approval package for a variety of applications
make this unit suitable for nearly every situation.
O
N
RDER
UMBERS
Power Supply
CP5.241-M1
Accessory
ZM10.WALL
I
NDEX
Feb. 2024 / Rev.1.1 DS-CP5.241-M1-EN All parameters are typical values specified at 230Vac, 50Hz input voltage, 24V, 5A output load,
25°C ambient and after a 5 minutes run-in time unless otherwise noted.
PFC.
Medical power supply
with Spring-clamp
terminal
Wall/Panel mount bracket
www.pulspower.com Phone +49 89 9278 0 Germany
P
S
OWER
UPPLY
▪ 2MOPP safety approved for medical applications
according to IEC 60601-1
▪ Quick-connect spring-clamp terminals
▪ AC 100-240V wide-range Input
▪ Width only 32mm
▪ Efficiency up to 94.3% with excellent partial load efficiency
▪ Easy fuse breaking – 3 times nominal current for 12ms
▪ Safe Hiccup
PLUS
overload mode
▪ Active power factor correction (PFC)
▪ Minimal inrush current surge
▪ Full power between -25°C and +60°C
▪ DC-OK relay contact
▪ 3 Year warranty
S
-
D
HORT
FORM
ATA
Output voltage
DC 24V
Adjustment range
24 - 28V
Output current
5.0 – 4.3A
Input voltage AC
AC 100-240V
Mains frequency
50-60Hz
Input current AC
1.09 / 0.6A
Power factor
0.98 / 0.91
Input Inrush current
5 / 6A
Efficiency
93.6 / 94.3%
Power losses
8.2 / 7.3W
Hold-up time
35 / 35ms
Temperature range
-25°C to +60°C
Size (WxHxD)
32x124x102mm
Weight
440g
M
A
AIN
PPROVALS
Details and complete list of approvals in chapter 19.
Medical
2MOPP - IEC 60601-1
CP5.241-M1
24V, 5A, S
P
I
INGLE
HASE
NPUT
Nominal
Factory setting 24.1V
Up to +60°C ambient
-15%/+10%
±6%
At 120 / 230Vac
At 120 / 230Vac
At 40°C 120 / 230Vac
peak
At 120 / 230Vac
At 120 / 230Vac
At 120 / 230Vac
Without DIN rail
1/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIMENSION CP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Puls DIMENSION CP Series

Summary of Contents for Puls DIMENSION CP Series

  • Page 1 CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT OWER UPPLY ▪ 2MOPP safety approved for medical applications according to IEC 60601-1 ▪ Quick-connect spring-clamp terminals ▪ AC 100-240V wide-range Input ▪ Width only 32mm ▪ Efficiency up to 94.3% with excellent partial load efficiency ▪...

  • Page 2: Table Of Contents

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT Page Page Intended Use ..............3 17. Safety and Protection Features ........15 Installation Instructions ..........3 18. Dielectric Strength ............. 16 AC-Input ............... 4 19. Approvals and Fulfilled Standards......17 Input Inrush Current ............. 5 20.

  • Page 3: Intended Use

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 1. I NTENDED This device is designed for installation in an enclosure and is intended for use in medical equipment. Do not use this device in HF surgical equipment or similar apertures. Do not use this device in equipment, where malfunctioning may cause severe personal injury or threaten human life without additional appropriate safety devices, that are suited for the end-application.

  • Page 4: Ac-Input

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 3. AC-I NPUT The device is suitable to be supplied from TN, TT or IT mains networks with AC voltage. AC input nom. AC 100-240V AC input range 85-264Vac Continuous operation 264-300Vac Occasionally for maximal 500ms Allowed voltage L or N to earth max.

  • Page 5: Input Inrush Current

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 4. I NPUT NRUSH URRENT An active inrush limitation circuit (NTCs, which are bypassed by a relay contact) limits the input inrush current after turn-on of the input voltage. The charging current into EMI suppression capacitors is disregarded in the first microseconds after switch-on. AC 100V AC 120V AC 230V...

  • Page 6: Output

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 5. O UTPUT The output provides a SELV/PELV rated voltage, which is galvanically isolated from the input voltage. The output is designed to supply any kind of loads, including capacitive and inductive loads. If extreme large capacitors, such as EDLCs (electric double layer capacitors or "Ultracapacitors"with a capacitance >...
  • Page 7 CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT Fig. 5-1 Output voltage vs. output current, typ. Fig. 5-2 Dynamic output current capability, typ. Output Voltage Adjus tment Output Voltage (dynamic behavior, < 12ms ) R ange Adjus tment R ange A: continuous current B : intermittent current Output C urrent...

  • Page 8: Hold-Up Time

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 6. H The hold-up time is the time during which a power supply’s output voltage remains within specification following the loss of input power. The hold-up time is output load dependent. At no load, the hold-up time can be up to several seconds. The green DC-ok LED is also on during this time.

  • Page 9: Efficiency And Power Losses

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 8. E FFICIENCY AND OWER OSSES AC 100V AC 120V AC 230V Efficiency typ. 92.9% 93.6% 94.3% At 24V, 5A Average efficiency typ. 91.3% 91.7% 92.0% 25% at 1.25A, 25% at 2.5A, 25% at 3.75A.

  • Page 10: Functional Diagram

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 9. F UNCTIONAL IAGRAM Fig. 9-1 Functional diagram 10. F RONT IDE AND LEMENTS Input Terminals N, L Line input PE (Protective Earth) input Output Terminals Two identical + poles and two identical - poles Positive output –...

  • Page 11: Connection Terminals

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 11. C ONNECTION ERMINALS The terminals are IP20 Finger safe constructed and suitable for field and factory wiring. CP5.241-M1 Input Output DC-ok Signal Type Quick-connect spring- Quick-connect Push-in termination clamp termination spring-clamp termination Solid wire Max.

  • Page 12: Emc According To Medical Standards

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 14. EMC ACCORDING TO EDICAL TANDARDS EMC Immunity According to medical standard: EN 60601-1-2 Electrostatic discharge EN 61000-4-2 Contact discharge Criterion A Air discharge 15kV Criterion A Air discharge DC OK signal Criterion A Electromagnetic RF field EN 61000-4-3...

  • Page 13: Emc According To Generic Standards

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 15. EMC ACCORDING TO ENERIC TANDARDS In regard to EMC, the power supply is designed for applications in medical applications, industrial environment as well as in residential, commercial and light industry environment. The device is investigated according to EN 61000-6-1, EN 61000-6-2, EN 61000-6-3 and EN 61000-6-4.

  • Page 14: Environment

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 16. E NVIRONMENT Operational temperature -25°C to +60°C Operational temperature is the same as the ambient or surrounding temperature and is defined as the air temperature 2cm below the unit, see Fig. 16-1 Storage temperature -40°C to +85°C For storage and transportation...

  • Page 15: Safety And Protection Features

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 17. S AFETY AND ROTECTION EATURES Class of protection PE (Protective Earth) connection required min. 500MOhm At delivered condition between input and output, Insulation resistance measured with 500Vdc min. 500MOhm At delivered condition between input and PE, measured with 500Vdc min.

  • Page 16: Dielectric Strength

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 18. D IELECTRIC TRENGTH The output voltage is floating and has no ohmic connection to the ground. The output is insulated to the input by a double or reinforced insulation. Type and routine tests are conducted by the manufacturer. Field tests may be conducted in the field using the appropriate test equipment which applies the voltage with a slow ramp (2s up and 2s down).

  • Page 17: Approvals And Fulfilled Standards

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 19. A PPROVALS AND ULFILLED TANDARDS IEC 60601-1 CB Scheme, Medical electrical equipment – Part 1: General requirements for basic safety and essential performance 2x MOPP and 2x MOOP (Except risk assessment) 20.

  • Page 18: Physical Dimensions And Weight

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 21. P HYSICAL IMENSIONS AND EIGHT Width 32mm Height 124mm 102mm Depth The DIN rail depth must be added to the unit depth to calculate the total required installation depth. Weight 440g DIN rail Use 35mm DIN rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm.

  • Page 19: Accessories

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 22. A CCESSORIES 22.1. ZM10.WALL – W ANEL OUNT RACKET This bracket is used to mount the devices on a wall/panel without utilizing a DIN rail. The bracket can be mounted without detaching the DIN rail brackets.

  • Page 20: Application Notes

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 23. A PPLICATION OTES 23.1. P URRENT APABILITY The unit can deliver peak currents (up to several milliseconds) which are higher than the specified short-term currents. This helps to start current demanding loads. Solenoids, contactors and pneumatic modules often have a steady state coil and a pick-up coil.

  • Page 21: Charging Of Batteries

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 23.2. C HARGING OF ATTERIES The power supply can be used to charge lead-acid or maintenance free batteries. Two 12V SLA or VRLA batteries are needed in series connection. Instructions for charging batteries: Use only matched batteries when putting 12V types in series.

  • Page 22: Use In A Tightly Sealed Enclosure

    CP5.241-M1 24V, 5A, S CP-Series INGLE HASE NPUT 23.7. U SE IN A IGHTLY EALED NCLOSURE When the power supply is installed in a tightly sealed enclosure, the temperature inside the enclosure will be higher than outside. In such situations, the inside temperature defines the ambient temperature for the power supply. The following measurement results can be used as a reference to estimate the temperature rise inside the enclosure.
