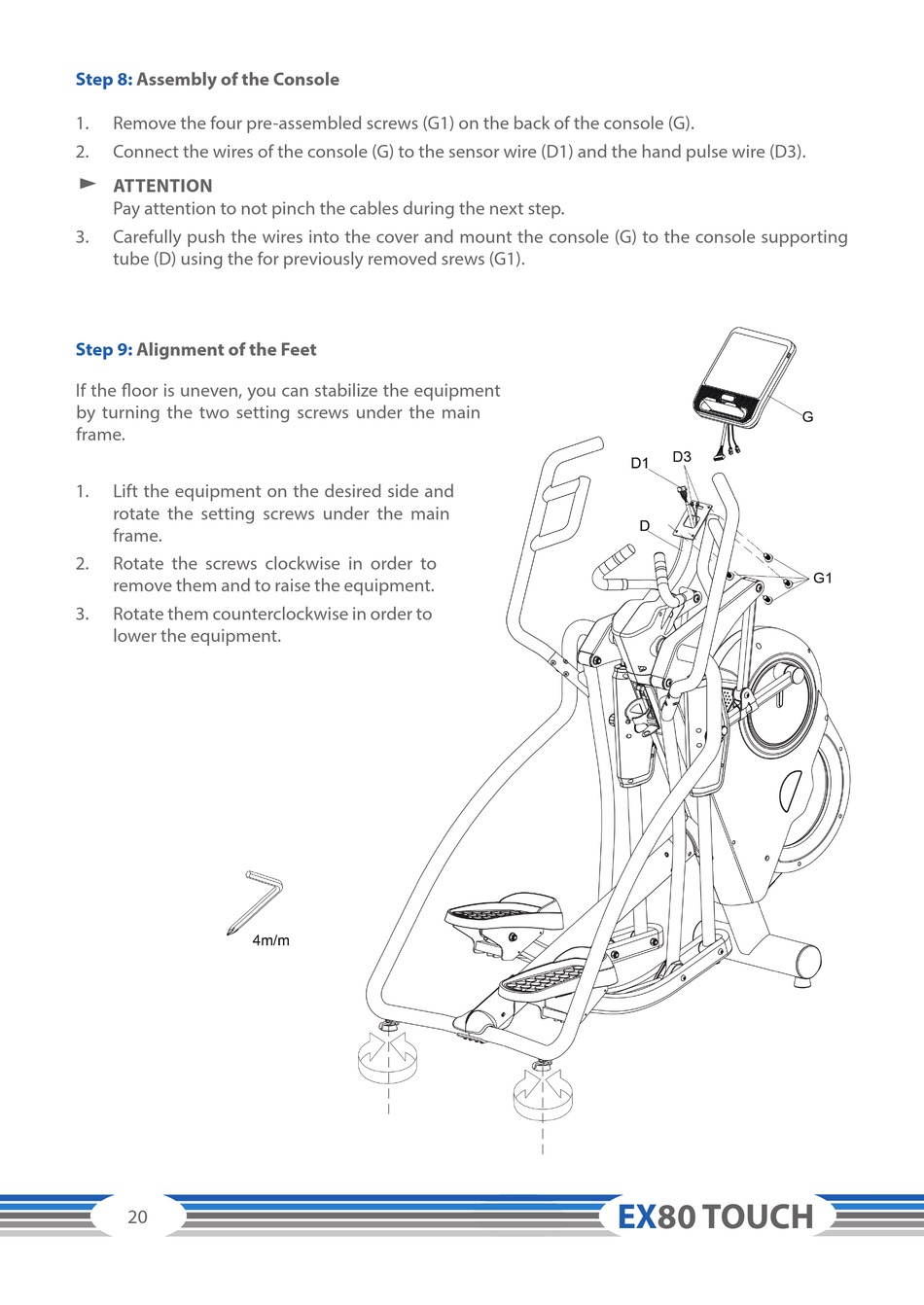

Step 8: Assembly of the Console
1. Remove the four pre-assembled screws (G1) on the back of the console (G).
2. Connect the wires of the console (G) to the sensor wire (D1) and the hand pulse wire (D3).
࣑ ATTENTION
Pay attention to not pinch the cables during the next step.
3. Carefully push the wires into the cover and mount the console (G) to the console supporting
tube (D) using the for previously removed srews (G1).
Step 9: Alignment of the Feet
If the floor is uneven, you can stabilize the equipment
by turning the two setting screws under the main
frame.
1. Lift the equipment on the desired side and
rotate the setting screws under the main
frame.
2. Rotate the screws clockwise in order to
remove them and to raise the equipment.
3. Rotate them counterclockwise in order to
lower the equipment.
