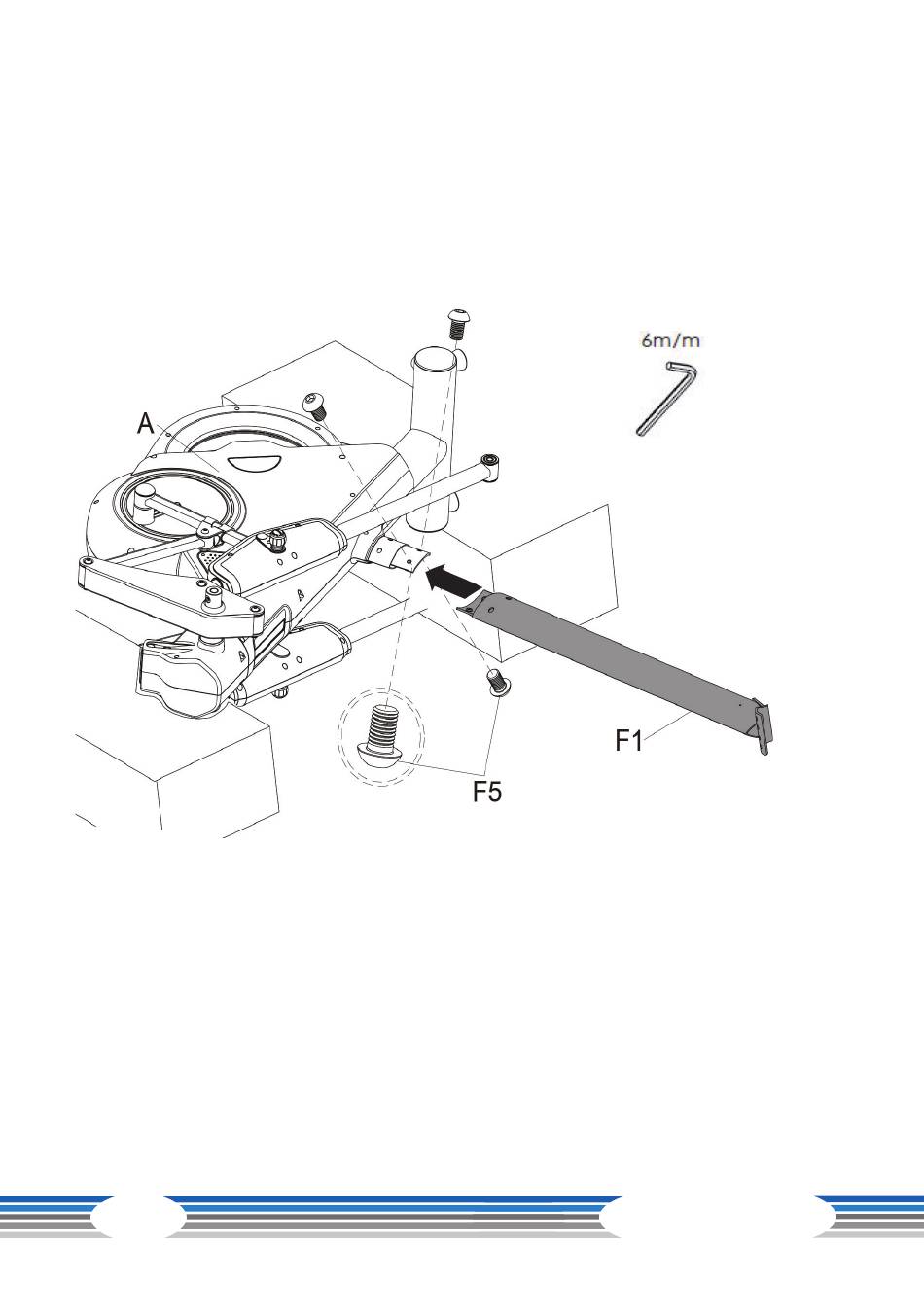

Step 2:
Mounting the Central Supporting Tube
1.
Remove the two pre-assembled screws (F5) from the main frame (A).
2.
Remove the two pre-assembled screws (F5) from the central supporting tube (F1).
3.
Mount the central supporting tube (F1) to the main frame (A) using the previously removed
screws (F5)
4.
Loosely tighten the screws.
14
EX80 TOUCH
