Step 7: Assembly of the Console Supporting Tube and the Bottle Holder
࣑ ATTENTION
Pay attention to not pinch the cables during the next step.
1. Connect the cable of the console supporting tube (D1) to the cable of the main frame (A1) until
you hear a click sound.
NOTICE
L
Do not remove the pre-assembled screws.
2. Loosen the two pre-assembled screws (J1) at the main frame (A).
3. Mount the console supporting tube (D) to the main frame (A): Hand tighten both pre-assembled
screws (J1) and the other two screws (J1), see view G.
4. Mount the bottle holder (H) to the main frame (A) using two screws (J6).
5. Tighten all screws.

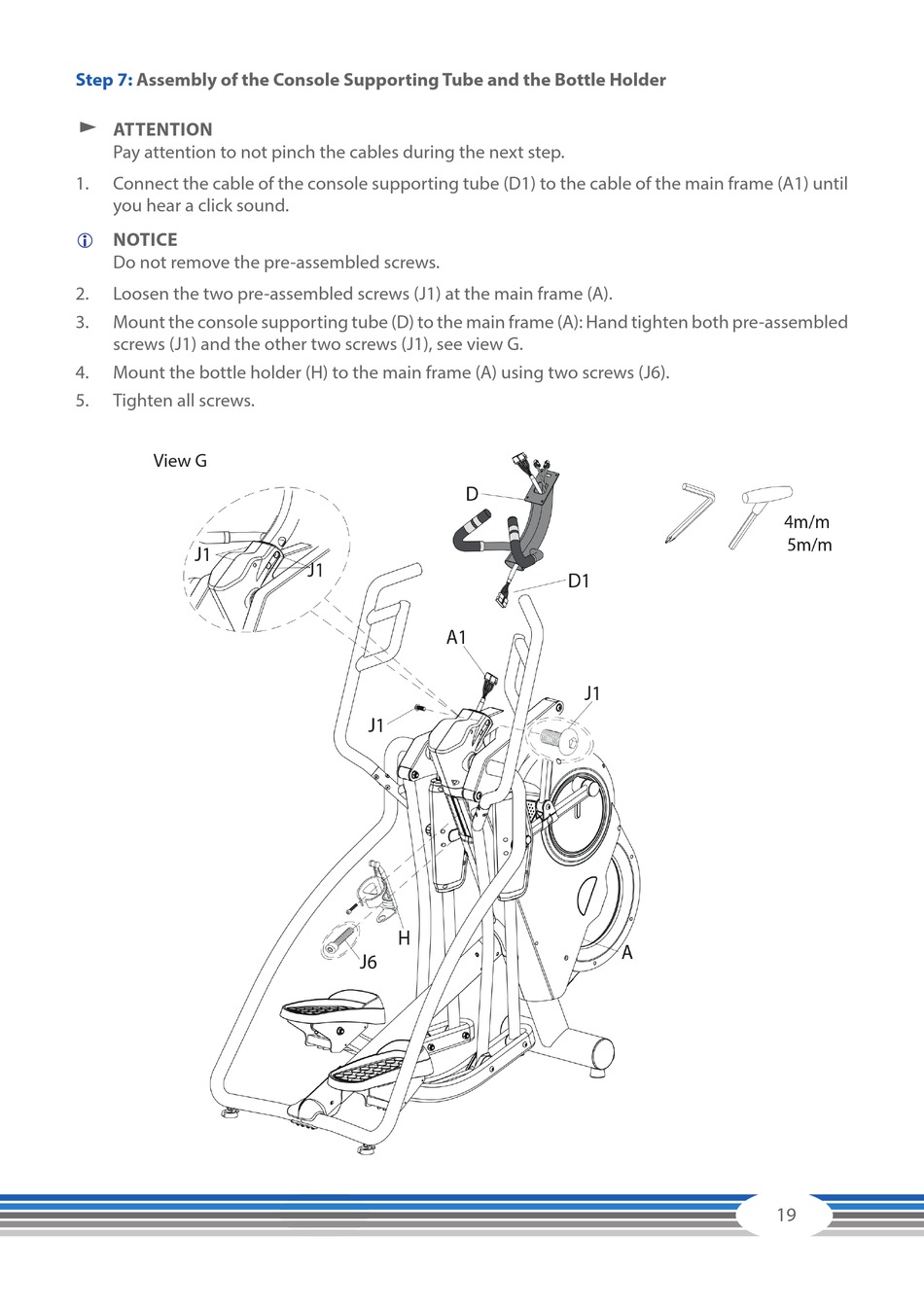

View G
