IMB760 LGA4189 EATX Motherboard

⚫

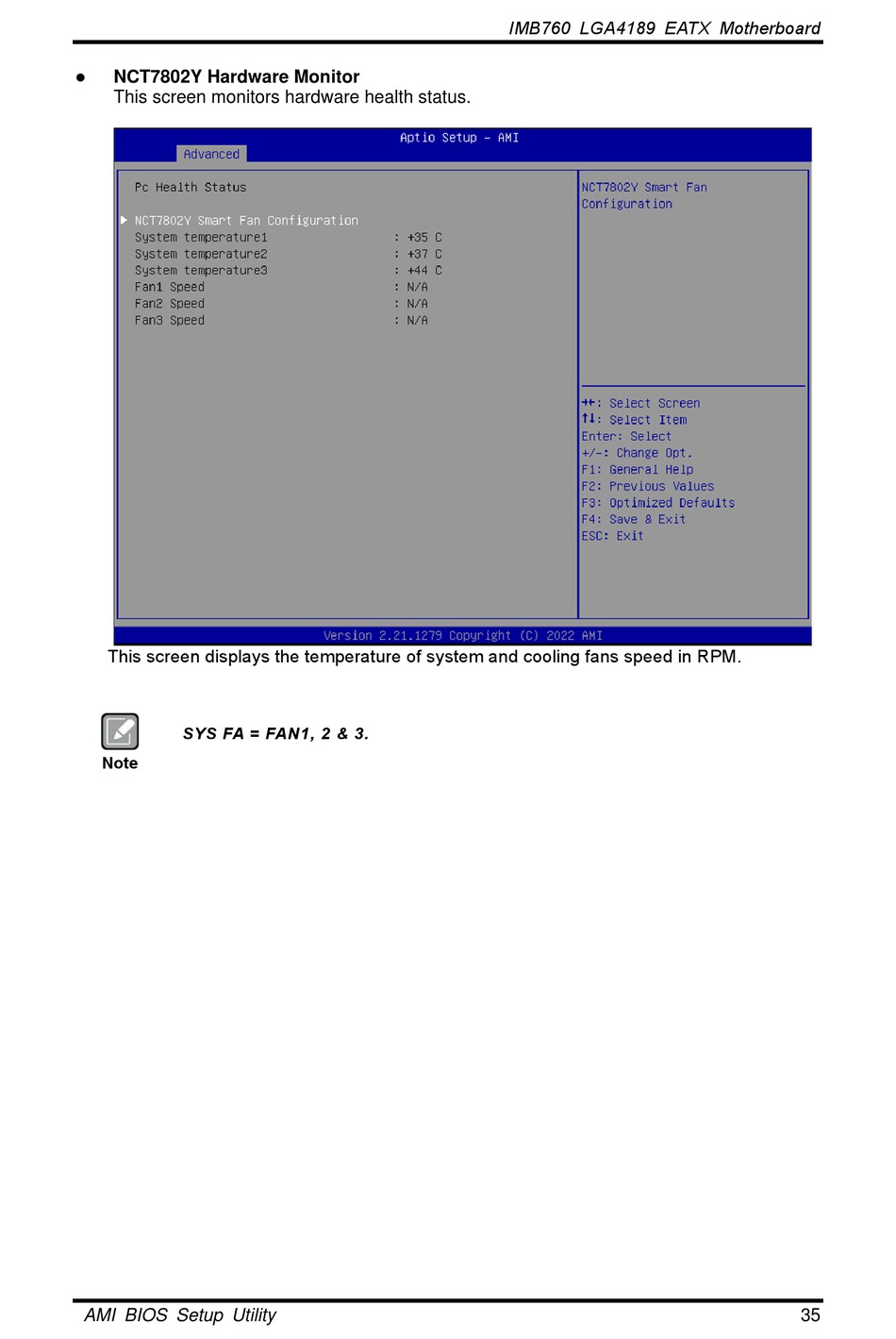

NCT7802Y Hardware Monitor

This screen monitors hardware health status.

This screen displays the temperature of system and cooling fans speed in RPM.

SYS FA = FAN1, 2 & 3.

Note

AMI BIOS Setup Utility
