AXIOMTEK IMB760 User Manual page 52

IMB760 LGA4189 EATX Motherboard

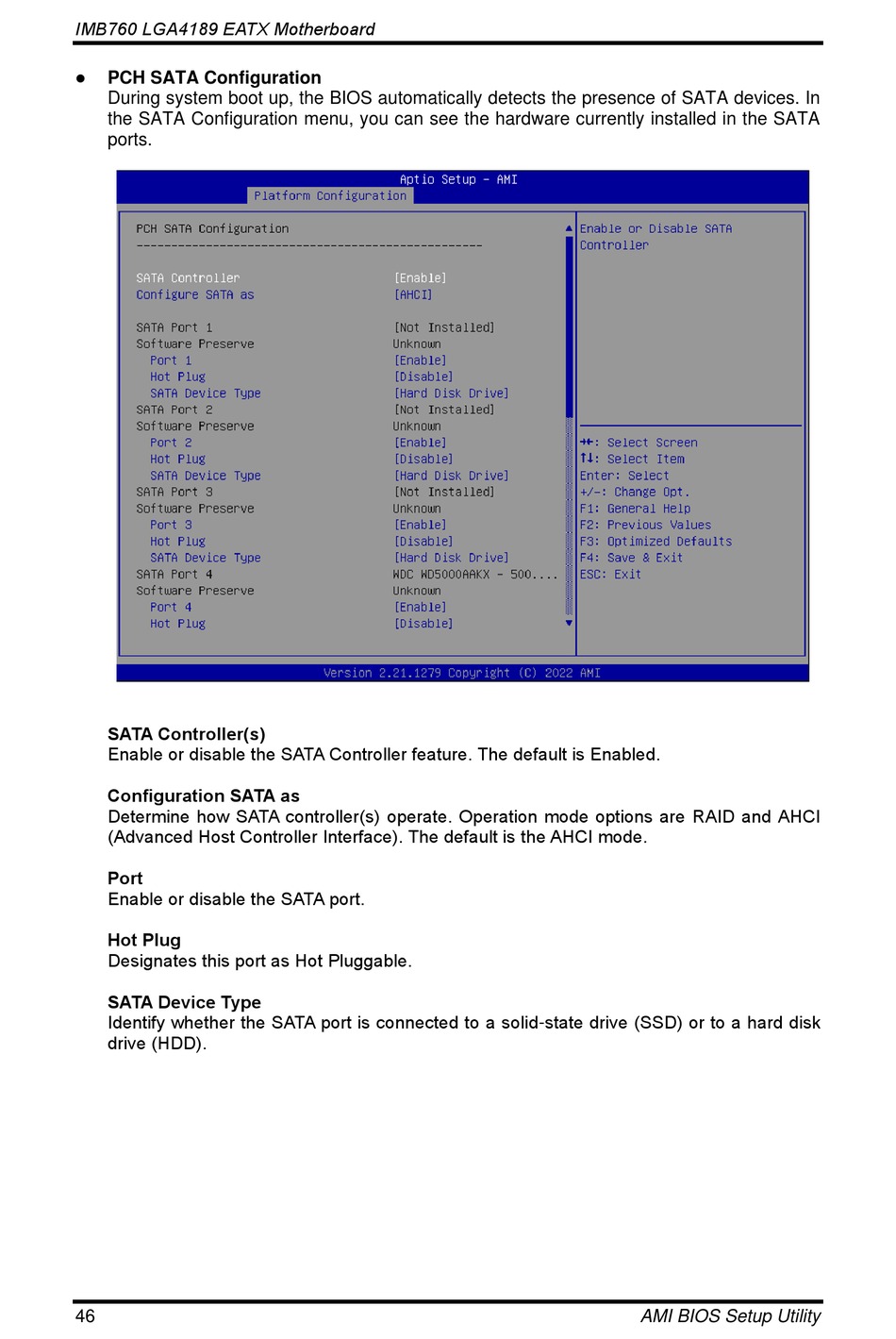

⚫ PCH SATA Configuration
During system boot up, the BIOS automatically detects the presence of SATA devices. In
the SATA Configuration menu, you can see the hardware currently installed in the SATA
ports.
SATA Controller(s)
Enable or disable the SATA Controller feature. The default is Enabled.
Configuration SATA as
Determine how SATA controller(s) operate. Operation mode options are RAID and AHCI
(Advanced Host Controller Interface). The default is the AHCI mode.
Port
Enable or disable the SATA port.
Hot Plug
Designates this port as Hot Pluggable.
SATA Device Type
Identify whether the SATA port is connected to a solid-state drive (SSD) or to a hard disk
drive (HDD).
46 AMI BIOS Setup Utility
