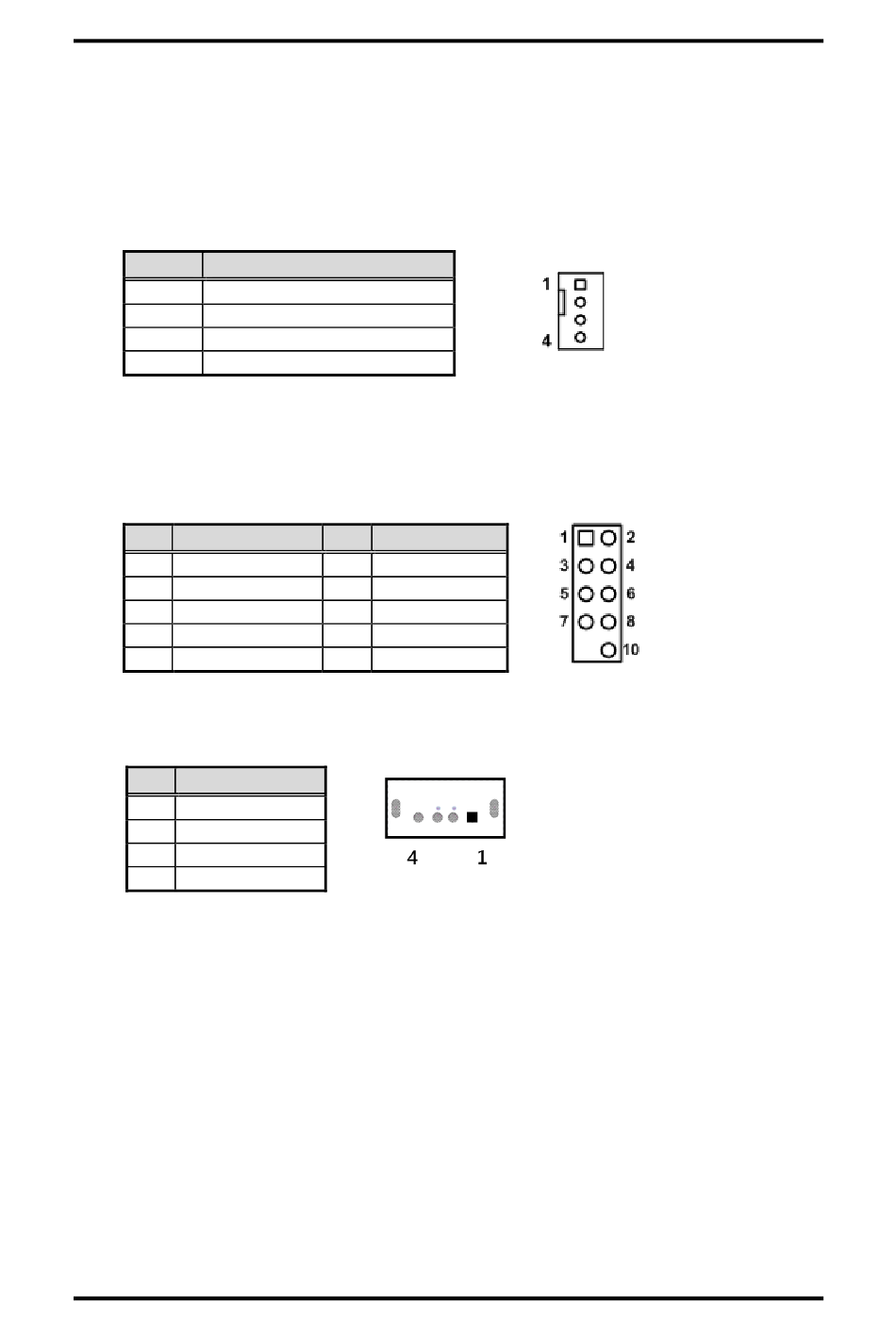

Fan Connectors (FAN1~FAN6 and CPU FAN1/2)

This motherboard has eight fan connectors. Find fan speed option(s) at BIOS Setup
Utility: Advanced\HW Monitor\PC Health Status.
FAN1~6 (4x1-pin p=2.54mm) are for the the system fan connectors.
CPU FAN1/2 (4x1-pin p=2.54mm) are for the the CPU fan connector.
Pin Signal
1 GND
2 +12V
3 FAN Speed Detection
4 FAN Speed Control
2.5.14

Internal USB Headers (USB3~4)

The USB 3~4 are 5x2-pin p=2.54mm headers is for USB 2.0 interface.
Pin Signal
1 +5 V_DUAL
3 USB 5, 7
5 USB 5, 7
7 GND
USB 1 and USB 2 is a Type-A 180D connector with USB 2.0 signal.
Pin Signal
1 +5V_DUAL
2 USB-
3 USB+
4 GND
Board and Pin Assignments
Pin Signal
2 +5 V_DUAL
4 USB 6, 8
6 USB 6, 8
8 GND
10 GND
