IMB760 LGA4189 EATX Motherboard

⚫

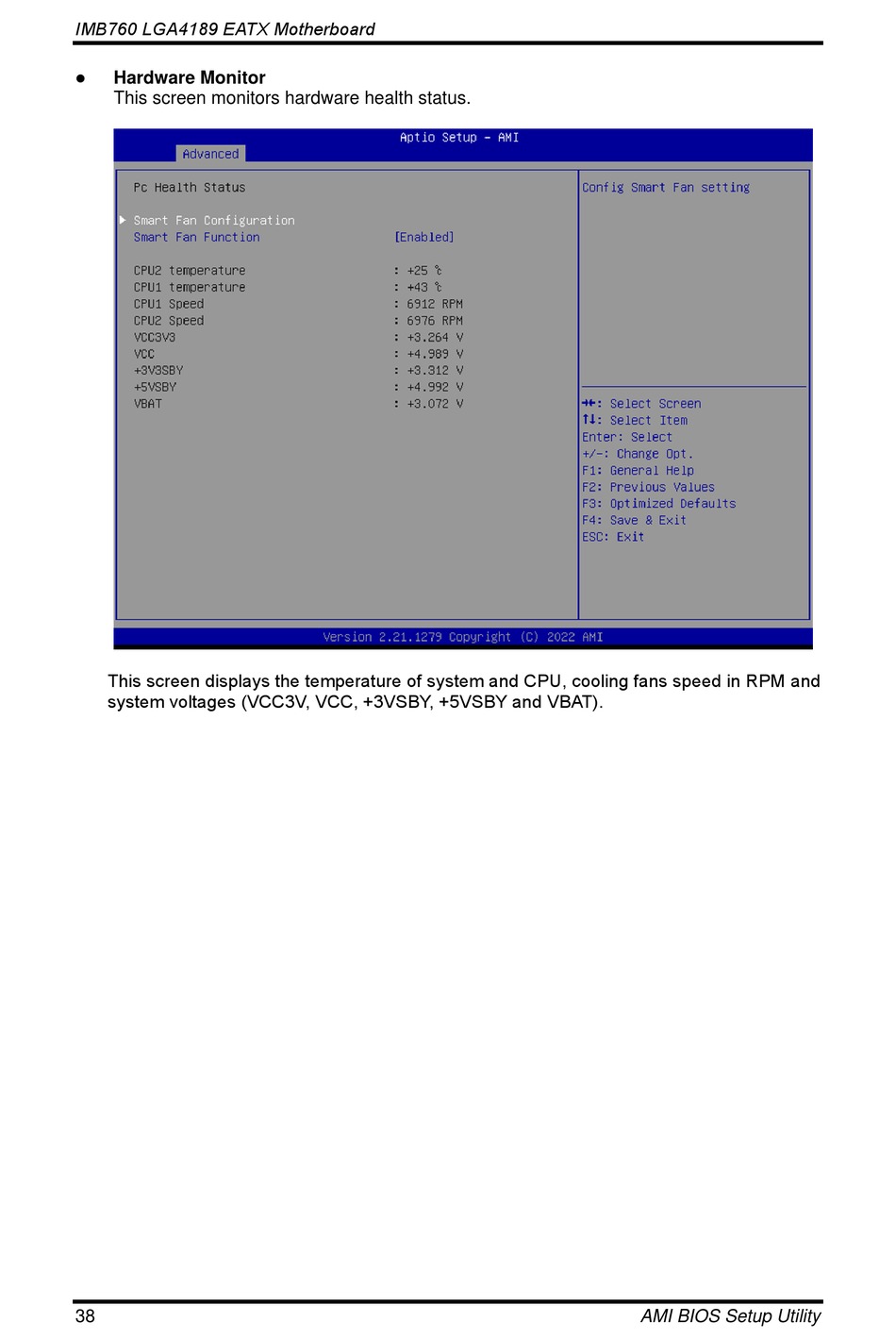

Hardware Monitor

This screen monitors hardware health status.

This screen displays the temperature of system and CPU, cooling fans speed in RPM and

system voltages (VCC3V, VCC, +3VSBY, +5VSBY and VBAT).

AMI BIOS Setup Utility
