Hardware Installation and Reference Guide

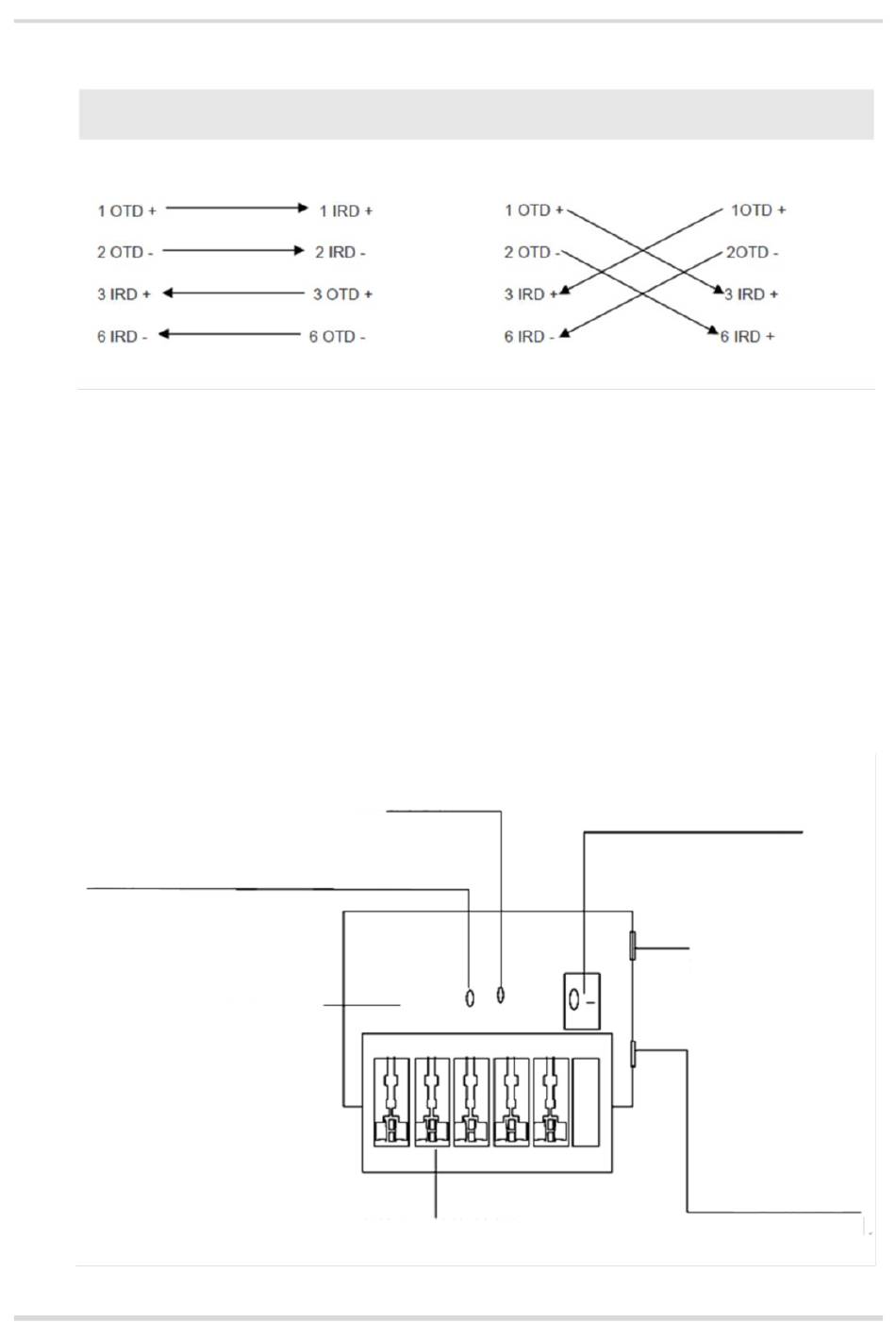

Figure 6-3
Connection Modes of 100BASE-TX/10BASE-T Twisted-pair Cables
Straight-Through Cable
Device A
6.2
Lightning Protection
Installing AC Power Arrester (Lightning Protection Power Strip)
The AC power port must be connected to an external lightning protection power strip to prevent the switch from
being struck by lightning when the AC power cord is introduced from the outdoor and directly connected to the
power port of the switch. The lightning protection power strip can be fixed on the cabinet, workbench, or wall in
the equipment room by using cable ties and screws. AC power enters the lightening protection power strip and
then gets to the switch.
Figure 6-4
Power Arrester
Normally running indicator: When the
indicator is green, the circuit is working
properly. Otherwise, the protective circuit is
damaged.
Installed electronic circuit board
Device B
Grounding and polarity detection indicator: If the
indicator is red, cable connection is incorrect (the
ground cable is not connected, or the N and L lines are
reversely connected). Check your power supply line.
Multi-purpose sockets (connected to the power
supply of the switch)
Crossover Cable
Device A
71
Appendix
Device B
Power switch
IEC standard socket, which is
connected to the power supply
in the equipment room through
the power cable
Overload auto-protector, which
can be reset manually
