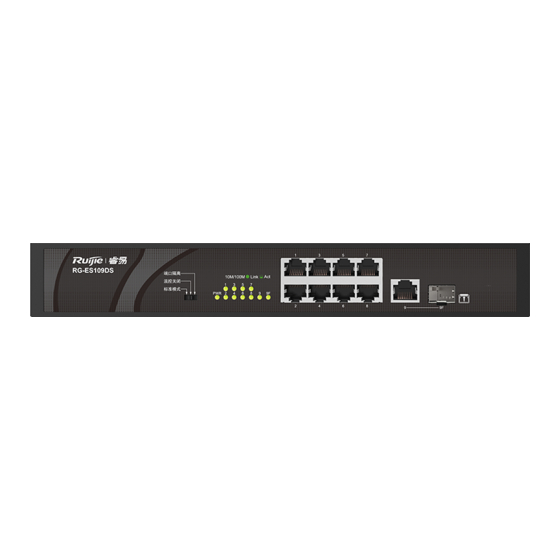

RG-ES109DS / RG-ES110GDS
交换机快速安装指南
Switch Quick Installation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the RG-ES109DS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ruijie RG-ES109DS

  • Page 1 RG-ES109DS / RG-ES110GDS 交换机快速安装指南 Switch Quick Installation Guide...
  • Page 2: Install The Switch

    Ruijie Ethernet Switches Installation Quick Start 本指南适用于 RG-ES109DS 和 RG-ES110GDS, 文中图片以 RG-ES109DS 为例进行说明。 This quick start applies to RG-ES109DS and RG-ES110GDS. RG-ES109DS is used as an example to illustrate the installation and connection of the switch. 设备安装 Install the switch 安装前准备...
  • Page 3 安装到 19 英寸标准机架 Mounting to a standard 19-inch rack 检查机架的接地与平稳性。 Ensure that the rack is stable and level, and is properly grounded. 用包装盒内的螺钉将两个 L 型支架分别固定到交换机的两侧。 Fix the 2 L-shaped brackets to both sides of the switch with the included screws. 将交换机放置于机架内的适当位置,用螺钉(需自备)将...
  • Page 4: Connect The Switch

    设备连接 Connect the switch 交换机支持端口自动翻转(Auto MDI/MDIX),用网线连接交换机与对端以太网设备时,  使用直连线或交叉线均可。 RG-ES109DS 交换机的端口 9 与端口 9F 复用,且 9F 端口优先。即,当使用交换机的 9F  口时,9 口不能使用。RG-ES110GDS 交换机的端口 9F 和 10F 端口是独立光端口。 警 告 此为 A 级产品,在生活环境中,该产品可能会造成无 线电干扰,在这种情况下,可能需要用户对干扰采 取切实可行的措施。 Note  The switch supports auto MDI/MDIX, so both a straight cable and a crossover cable can...
  • Page 5  For RG-ES109DS, port 9 and port 9F compose a combo port, and port 9F owns a higher priority. So when port 9F of the switch is used, port 9 cannot be used. For RG-ES110GDS, ports 9F and 10F are independent SFP ports.
  • Page 6 Blinking: Data is being transmitted over the port. Off: The port is not connected or is not connected properly. Toggle for switching operating modes: Standard Mode: It is the default operating mode. In this mode, the switch functions as a common unmanaged switch, and all ports of the switch can communicate with each other.
  • Page 7: Specifications

    规格参数 Specifications 产品型号 RG-ES109DS RG-ES110GDS 10/100Mbps RJ45 端口数 10/100/1000Mbps 端口 RJ45 端口数 1000Mbps SFP 端 口数 与 9 端口复用,且 SFP 端口优先 为独立 SFP 端口 工作模式 支持三种模式切换:标准模式、流控关闭、端口隔离 交换模式 存储转发 性能 MAC 地址表 MAC 地址学习 自动学习、自动老化 外形尺寸(长×宽×高) 294mm×178mm×44mm 电源输入 100~240V AC,50/60Hz,0.4A RJ45 端口...
  • Page 8 RG-ES109DS RG-ES110GDS Product model Number of 10/100 Mbps RJ45 port Number of 10/100/1000 Mbps RJ45 port Port Number of 1000 This SFP port and port 9 compose a Both are independent SFP Mbps SFP port combo port, and the SFP port owns ports.
  • Page 9 For more information about the product and installation procedures, log in to www.ruijie.com.cn 锐捷网络股份有限公司 版权所有,保留一切权利 © Copyright ruijie networks Co., Ltd. RUIJIE NETWORKS CO., LTD. Ruijie Science and Technology Park, Juyuanzhou, No. 618, Jinshan Road, Fuzhou Technical Support: http://bbs.ruijiery.com Technical Support Hotline: +86-400-100-0078(China) Website: http://www.ruijiery.com http://www.ruijie.com.cn 锐捷网络股份有限公司...
