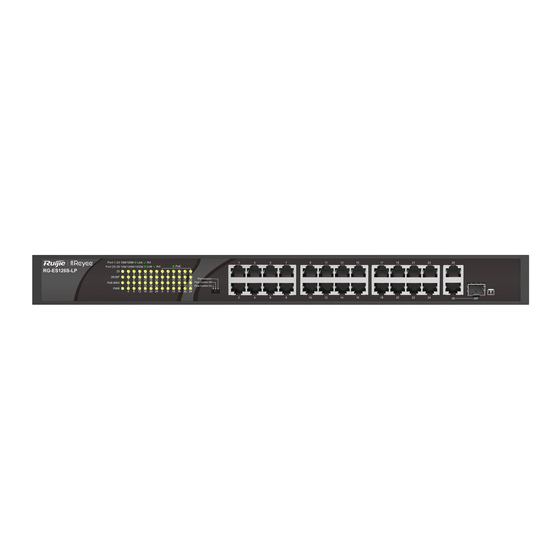

Ruijie RG-ES126S-LP Quick Installation Manual
Hide thumbs
Also See for RG-ES126S-LP:
- Hardware installation and reference manual (83 pages) ,
- Hardware installation and reference manual (58 pages) ,
- Hardware installation and reference manual (50 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ruijie RG-ES126S-LP
Summary of Contents for Ruijie RG-ES126S-LP
- Page 1 RG-ES126S-LP / RG-ES126S-P 交换机快速安装指南 Switch Quick Installation Guide...
- Page 2 Ruijie Ethernet PoE Switches Installation Quick Start 本指南适用于 RG-ES126S-LP 和 RG-ES126S-P， 文中图片以 RG-ES126S-LP 为例进行说 明。 This quick start applies to RG-ES126S-LP and RG-ES126S-P. RG-ES126S-LP is used as an example here to illustrate the installation and connection of the switch. 设备安装 Install the switch 安装前准备...
- Page 3 desktop. 安装到 19 英寸标准机架 Mounting to a standard 19-inch rack 检查机架的接地与平稳性。 Ensure that the rack is stable and level, and is properly grounded. 用包装盒内的螺钉将两个 L 型支架分别固定到交换机的两侧。 Fix the 2 L-shaped brackets to both sides of the switch with the included screws. 将交换机放置于机架内的适当位置，用螺钉（需自备）将...
- Page 4 安装到墙面 Mounting to the wall 请勿将交换机的散热孔朝下安装，否则会有安全隐患。 DO NOT install the switch with its ventilation holes facing down, otherwise there will be potential safety hazards. 用包装盒内的螺钉将两个 L 型支架分别固定到交换机的两侧。 Fix the 2 L-shaped brackets to both sides of the switch with the included screws. 将交换机...
-
Page 5: Connect The Switch
expansion bolts with a screwdriver, so as to ensure that the switch is installed to the wall firmly. 设备连接 Connect the switch 交换机支持端口自动翻转（Auto MDI/MDIX），用网线连接交换机与对端以太网设备时， 使用直连线或交叉线均可。 交换机 PoE 端口支持优先级机制，当受电设备的总功耗超过交换机整机最大 PoE 供电功率 ... - Page 6 时，交换机将按端口 1>2>…>24 的优先级顺序，切断优先级最低的端口的供电，直到受电 设备的总功耗恢复到交换机整机最大 PoE 供电功率以内。 端口 26 与端口 26F 复用，且 26F 端口优先。即，当使用交换机的 26F 口时，26 口不能使 用。 警 告 此为 A 级产品，在生活环境中，该产品可能会造成无 线电干扰，在这种情况下，可能需要用户对干扰采 取切实可行的措施。 The switch supports auto MDI/MDIX, so both a straight cable and a crossover cable can be used to connect the switch to Ethernet devices.
- Page 7 指示灯/开关 说明 长亮：相应端口已连接。 Link/Act 闪烁：相应端口正在传输数据。 1~24、25、26/26F 熄灭：相应端口未连接或连接异常。 长亮：端口已连接受电设备，并供电正常。 熄灭：端口未连接受电设备，或没有供电。 1~24 长亮：PoE 总输出功率达到整机最大功率。 PoE-MAX 熄灭：PoE 总输出功率未达到整机最大功率。 长亮：交换机通电正常。 熄灭：交换机未通电或通电异常。 标准模式：默认模式。此模式下，交换机为普通非网管型交换机，所有端 口之间可以相互通信。 流控关闭：此模式下，交换机关闭所有端口流控，以满足各种复杂环境的 工作模式拨码开关 “网络克隆”需求。 端口隔离：此模式下，1~24 端口之间不能相互通信，但都能与 25、26 和 26F 口进行通信。可以隔离 DHCP 广播，减少广播风暴。 LED indicator/Toggle Description Solid on: The corresponding port is connected to a device. Link/Act Blinking: Data is being transmitted over the corresponding port.
-
Page 8: Specifications
Port Isolation: In this mode, ports 1 to 24 cannot communicate with each other, but can communicate with ports 25, 26 and 26F respectively, which helps isolate DHCP broadcast and reduce broadcast storm. 规格参数 Specifications 产品型号 RG-ES126S-LP RG-ES126S-P 10/100/1000Mbps RJ45 端口数 10/100Mbps RJ45 端口数... - Page 9 产品型号 RG-ES126S-LP RG-ES126S-P MAC 地址表学习 自动学习、自动老化 MAC 地址表 PoE 供电标准 IEEE 802.3af、IEEE 802.3at PoE 供电线芯 4 芯供电（1 2 为+，3 6 为-） PoE 供电 PoE 供电端口 1~24 端口最大供电功率 整机最大供电功率 230W 370W 外形尺寸（长×宽×高） 440mm×208mm×44mm 440mm×240mm×44mm 输入电压 220V AC，50Hz，2.5A max 220V AC，50Hz，3A RJ45 端口...
- Page 10 产品型号 RG-ES126S-LP RG-ES126S-P GB9254-2008 安规 GB4943-2011 Product model RG-ES126S-LP RG-ES126S-P Number of 10/100/1000 Mbps RJ45 port Number of 10/100 Mbps RJ45 port Port Number of 1000 Mbps SFP port This SFP port and port 26 compose a combo port, and the SFP port owns a higher priority.
- Page 11 Product model RG-ES126S-LP RG-ES126S-P port Maximum output power of the 230 W 370 W switch 440 mm × 240 mm × 44 440 mm × 208 mm × 44 mm Dimensions (L x W x H) AC Input 220V AC, 50Hz, 2.5A max...
- Page 12 For more information about the product and installation procedures, log in to www.ruijie.com.cn 锐捷网络股份有限公司 版权所有，保留一切权利 Copyright © ruijie networks Co., Ltd. RUIJIE NETWORKS CO., LTD. Ruijie Science and Technology Park, Juyuanzhou, No. 618, Jinshan Road, Fuzhou Technical Support: http://bbs.ruijiery.com Technical Support Hotline: +86-400-100-0078(China) Website: http://www.ruijiery.com http://www.ruijie.com.cn...
