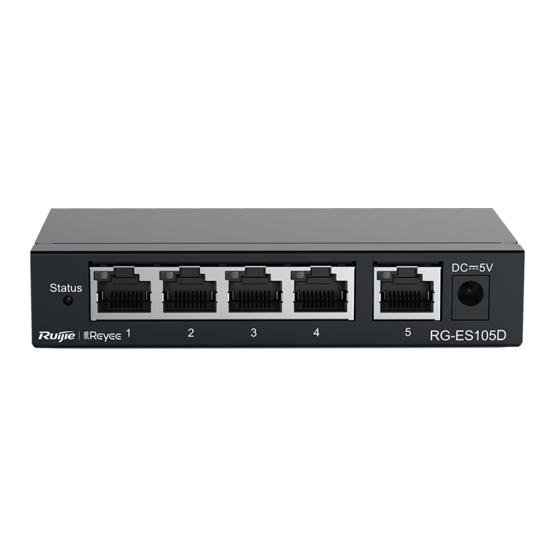

Ruijie RG-ES100 Series Switches
Hardware Installation and Reference Guide V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RG-ES100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ruijie RG-ES100 Series

  • Page 1 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide V1.0...
  • Page 2 Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited. Exemption Statement This document is provided “as is”.
  • Page 3 It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance  Ruijie Networks Website: https://www.ruijienetworks.com/  Technical Support Website: https://ruijienetworks.com/support...
  • Page 4: Product Overview

    Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview 1 Product Overview The RG-ES100 series switches include the following models: Table 1-1 RG-ES100 Series Switches 10/100/1000 Base-T Model 1000Base-X SFP Port Console Port Auto-sensing Ethernet Port (Ports support RG-ES109G-LP-L PoE+/PoE)...
  • Page 5 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview Switchover Button of the port: when the LED is solid green, it indicates that the link is up; when the LED blinks green, data is being transmitted or received.
  • Page 6 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview Front Panel Figure 1-2 Front Panel of RG-ES109G-LP-L Note: 1. System status LED 6. 10/100/1000Base-T auto-sensing Ethernet port 2. Port Mode LED Switch-Over Button 3. Copper port status LED 4.
  • Page 7 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview The PoE power exceeds the power of the entire device (54 W). The new connected PD cannot be Blinking green powered up due to insufficient power. The switching function is operational.
  • Page 8 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview Consumption Less than 430W with PoE full load Port Mode When the button is turned to the left position (Mode 1), the LED indicates the switching status Switchover Button of the port: when the LED is solid green, it indicates that the link is up;...
  • Page 9 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview Front Panel Figure 1-5 Front Panel of RG-ES126G-P-L Note: 1. System status LED 6. 10/100/1000Base-T auto-sensing Ethernet port 2. Port Mode LED Switch-Over Button 7. 1000Base-X SFP port 3. Working Mode Switch-Over Button 8.
  • Page 10 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview LEDs Panel Identification State Meaning The switch is not receiving power. The PoE power exceeds the power of the entire device (370 W). The new connected PD cannot System status LED...
  • Page 11 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview 1.3 RG-ES126G-LP-L Technical Specifications Model RG-ES126G-LP-L Supports 24 10/100/1000 Base-T auto-sensing Ethernet ports; Port Supports 2 1000Mbps SFP ports. Mini-GBIC-SX Mini-GBIC-LX Mini-GBIC-LH40 Mini-GBIC-ZX50 Mini-GBIC-ZX80 Optical Module Mini-GBIC-ZX100 Mini-GBIC-GT The supported module type may change at any time. Consult us for the latest information.
  • Page 12 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview Product Appearance On the front panel, the RG-ES126G-LP-L Ethernet switch provides twenty-four 10/100/1000Base-T Ethernet ports, and two 1000M SFP ports. On the back panel, it provides an AC power port.
  • Page 13 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview The RG-ES126G-LP-L adopts turbine fans for heat dissipation, thereby ensuring normal function of the device in the specified environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to allow air circulation.
  • Page 14 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview Blinking Indicates PoE overload.
  • Page 15: Preparation Before Installation

    Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Preparation before Installation 2 Preparation before Installation 2.1 Safety Suggestions To avoid personal injury and equipment damage, please carefully read the safety suggestions before you install the RG-ES100 series switch. The following safety suggestions do not cover all possible dangers.
  • Page 16: Static Discharge Damage Prevention

    Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Preparation before Installation the leakage current of the system totals 30mA. A leakage protector with 30mA rated action current supports less than ten power supplies (that is, Action current of the leakage protector/2/Maximum leakage current of each power supply =30/2/1.5=10).
  • Page 17: Temperature And Humidity

    2.2.2 Temperature and Humidity To ensure the normal operation and prolong the service life of RG-ES100 series switch, you should keep proper temperature and humidity in the equipment room. If the equipment room has temperature and humidity that do not meet the requirements for a long time, the equipment may be damaged.
  • Page 18 2.2.5 Grounding A good grounding system is the basis for the stable and reliable operation of the RG-ES100 series switch. It is the chief condition to prevent lightning stroke and resist interference. Please carefully check the grounding conditions on the installation site according to the grounding requirements, and perform grounding operations properly as required.
  • Page 19: Lightning Resistance

    All the above constitute the comprehensive grounding requirements. The resistance of earth wires should be less than 1 ohm. The RG-ES100 series switch back plane is reserved with one grounding pole, as shown in Figure 2-1. Figure 2-1 Grounding of RG-ES100 2.2.6 Lightning Resistance...
  • Page 20: Requirements Of Installation Tools

    Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Preparation before Installation 2.2.7 EMI Electro-Magnetic Interference (EMI), from either outside or inside the equipment or application system, affects the system in the conductive ways such as capacitive coupling, inductive coupling, and electromagnetic radiation.
  • Page 21: Product Installation

    Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Installation 3 Product Installation Please ensure that you have carefully read Chapter 2. Make sure that the requirements set forth in Chapter 2 have been met. 3.1 Installation Flowchart 3.2 Confirmations before Installation Before installation, please confirm the following points: ...
  • Page 22  Do not place any articles on the RG-ES100 series switch.  Reserve a spacing of at least 10 cm around the chassis for good ventilation. Do not stack the devices.
  • Page 23: Mounting The Switch On The Wall

    Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Installation 3.3.2 Mounting the Switch on the Wall RG-ES109G-LP-L can be mounted on the wall. (Mounting screws and wall anchors are customer supplied.) In actual installation, users need to determine the size and depth of the two mounting holes on the wall based on the sizes of wall anchors and screws.
  • Page 24 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Installation RG-ES126G-P-L is provided with mounting brackets. The installation process is as follows: Step 1: Attach the mounting brackets to the switch with the supplied screws, as shown in Figure 3-5.
  • Page 25: Mounting The Switch On A Table

    Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Installation The wall mounting procedure for the RG-ES126G-LP-L switch is the same as that of the RG-ES126G-P-L. SUITABLE FOR MOUNTING ON CONCRETE OR OTHER NON-COMBUSTIBLE SURFACE ONLY. 3.3.3 Mounting the Switch on a Table Attach the four rubber pads to the recessed areas on the bottom of the switch, as shown in Figure 3-7.
  • Page 26 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Installation Place the switch on the table, as shown in Figure 3-9 and Figure 3-10. Figure 3-9 Mounting the Switch on the Table Figure 3-10 Mounting the Switch on the Table...
  • Page 27: Checking After Installation

    Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Installation 3.4 Checking after Installation Before checking the installation, switch off the power supply so as to avoid any personal injury or damage to the component due to connection errors.
  • Page 28: System Debugging

    Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide System Debugging 4 System Debugging 4.1 Startup Check 4.1.1 Checking before the Device is Powered on  The switch is fully grounded.  The power cable is correctly connected.  The power supply voltage complies with the requirement of the switch.
  • Page 29: Maintenance And Troubleshooting

    Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Maintenance and Troubleshooting 5 Maintenance and Troubleshooting 5.1 General Troubleshooting Procedure 5.2 Troubleshooting Common Faults Symptom Possible Causes Solution Forgetting A password is manually configured but Please contact Ruijie Networks Customer Service management interface it is forgotten.
  • Page 30: Appendix A Connectors And Connection Media

    Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Appendix A Connectors and Connection Media Appendix A Connectors and Connection Media 1000BASE-T/100BASE-TX/10BASE-T Ports The 1000BASE-T/100BASE-TX/10BASE-T is a port that supports adaptation of three rates, and automatic MDI/MDIX Crossover at these three rates.
  • Page 31 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Appendix A Connectors and Connection Media Optical Fiber Connection For the optical fiber ports, select single-mode or multiple-mode optical fibers for connection according to the fiber module connected. The connection schematic diagram is shown in Figure A-4:...
  • Page 32 SFP modules (Mini-GBIC module) and 10G SFP+ modules are available to address the requirements of interface types of switch modules. You can select the Mini-GBIC module to suit your specific needs. The models and technical specifications of some Mini-GBIC and 10G SFP+ modules are listed below. For details, see Ruijie Transceiver Installation and Reference Guide.
  • Page 33 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Appendix B Mini-GBIC and SPF+ Module Mini-GBIC-LX-SM1310 9/125 10km 62.5/125 275m GE-eSFP-SX-MM850 50/125 550m GE-eSFP-LX-SM1310 9/125 10km GE-SFP-LX-SM1310 9/125 10km Mini-GBIC-LH40-SM1310 9/125 40km GE-SFP-SX-SM1310-BIDI 50/125 500m GE-SFP-SX-SM1550-BIDI 50/125 500m GE-SFP-LX20-SM1310-BIDI 9/125...
  • Page 34 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Appendix B Mini-GBIC and SPF+ Module Appendix C Lightning Protection Installing AC Power Arrester (lightning protection cable row) The external lightning protection cable row shall be used on the AC power port to prevent the switch from being struck by lightning when the AC power cable is introduced from the outdoor and directly connected to the power port of the switch.
  • Page 35 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Appendix B Mini-GBIC and SPF+ Module Tools: Cross or straight screwdriver, Multimeter, Diagonal pliers Installation Steps: Tear one side of the protection paper for the double-sided adhesive tape and paste the tape to the framework of the Ethernet port arrester.
  • Page 36 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Appendix B Mini-GBIC and SPF+ Module  Poor arrester grounding. The length of the grounding line should be as short as possible to ensure that it is in good contact with the switch grounding terminal. Use the multimeter to confirm the contact condition after the grounding.
  • Page 37 Appendix D Cabling Recommendations in Installation When RG-ES100 series switches are installed in standard 19-inch cabinets, the cables are tied in the binding rack on the cabinet by the cabling rack, and top cabling or bottom cabling is adopted according to the actual situation in the equipment room.
  • Page 38 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Appendix D Cabling Recommendations in Installation  Cables of different types (such as power cords, signal cables, and grounding cables) should be separated in cabling and bundling. When they are close, crossover cabling can be adopted. In the case of parallel cabling, power cords and signal cables should maintain a space equal to or greater than 30 mm.
  • Page 39 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Appendix D Cabling Recommendations in Installation Figure D-3 Bundling Up Cables (3)  Cables not to be assembled or remaining parts of cables should be folded and placed in a proper position of the cabinet or cabling slot.
  • Page 40 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Appendix D Cabling Recommendations in Installation  The hard power cable should be fastened by the terminal connection area to prevent stress.  Do not use self-tapping screws to fasten terminals.
  • Page 41: Appendix E Site Selection

    Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Appendix E Site Selection Appendix E Site Selection  The machine room should be at least 5km away from the heavy pollution source such as the smelter, coal mine and thermal power plant, 3.7km away from the medium pollution source such as the chemical industry, rubber industry and electroplating industry, and 2km away from the light pollution source such as the food manufacturer and leather plant.

This manual is also suitable for:

Rg-es109g-lp-lRg-es126g-p-lRg-es126g-lp-l
