- Page 1 RG-ES105D, RG-ES105GD, RG-ES108D, RG-ES108GD Series Switch Hardware Installation and Reference Guide Document Version: V1.2 Date: 2023-02-15 Copyright © 2023 Ruijie Networks...
- Page 2 Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is designed merely as a user guide. Ruijie Networks has tried its best to ensure the accuracy and reliability of the content when compiling this manual, but it does not guarantee that the content of the manual is completely free of errors or omissions, and all the information in this manual does not constitute any explicit or implicit warranties.
- Page 3 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Preface Thank you for using our products. This manual will guide you through the installation of the device. This manual describes the functional and physical features and provides the device installation steps, hardware troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors.
- Page 4 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Warning An alert that calls attention to important rules and information that if not understood or followed can result in data loss or equipment damage. Caution An alert that calls attention to essential information that if not understood or followed can result in function failure or performance degradation.
-
Page 5: Product Overview

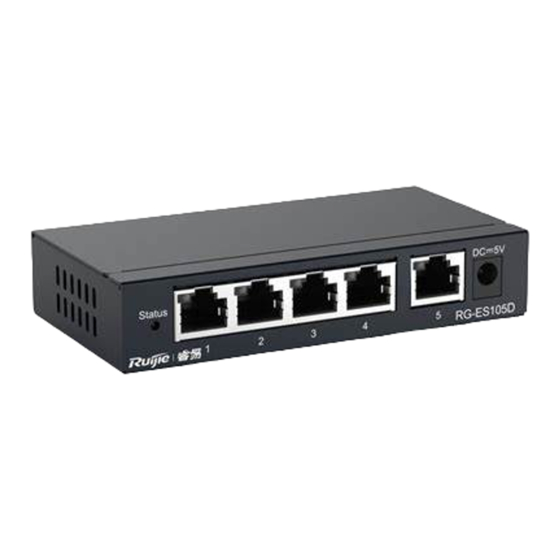

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide 1 Product Overview The RG-ES100 series switch includes the following models. 10/100/1000 Base-T 10/100 Base-T Auto- 1000Base-X SFP Console Model Auto-sensing sensing Ethernet Port Port Port Ethernet Port RG-ES105D RG-ES108D RG-ES105GD RG-ES108GD 1000Base-T is backward compatible with 100Base-T and 10Base-T. - Page 6 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide (W x D x H) Weight 0.25 kg (0.55 lbs) (With Package) Device operation in a residential environment may cause radio interference. Product Appearance On the front panel, the RG-ES105D Ethernet switch provides five 10/100Base-TX Ethernet ports and one DC power port.
- Page 7 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Note: 1. Grounding hole Heat Dissipation The RG-ES105D adopts natural heat dissipation, thereby ensuring normal operation. You must maintain a minimum clearance of 100 mm (3.94 in.) around the RG-ES105D. It is recommended that you clean the RG-ES105D once every 3 months to avoid dust from blocking vents.
- Page 8 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Rated voltage range: 5 V DC Rated current range: 1 A Not supported Not supported Power Consumption Operating 0° C to 40° C (32° F to 104° F) Temperature Storage -40° C to +70° C (-40° F to +158° F)
- Page 9 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Note: 1. System status LED 2. Port status LED 3. 10/100/1000Base-T Ethernet port 4. DC power port 5. Nameplate on the bottom of the device Back Panel Figure 1-6 Back Panel of the RG-ES105GD Note: 1.
- Page 10 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide The port is connected at a rate of 10/100/1000 Solid green Mbps. The port is receiving or sending traffic at a rate of Blinking green 10/100/1000 Mbps. 1.3 RG-ES108D Technical Specifications...
- Page 11 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Device operation in a residential environment may cause radio interference. Product Appearance On the front panel, the RG-ES108D Ethernet switch provides eight 10/100Base-TX Ethernet ports and a DC power port. Figure 1-7 Appearance of the RG-ES108D...
- Page 12 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Note: 1. Grounding hole Heat Dissipation The RG-ES108D adopts natural heat dissipation, thereby ensuring normal operation. You must maintain a minimum clearance of 100 mm (3.94 in.) around the RG-ES108D. It is recommended that you clean the RG-ES108D once every 3 months to avoid dust from blocking vents.
- Page 13 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Storage -40° C to +70° C (-40° F to +158° F) Temperature Operating Humidity 10% to 90% RH Storage Humidity 5% to 95% RH Not supported Temperature Not supported Warning Accessing...
- Page 14 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Note: 1. System status LED 2. Port status LED 3.10/100/1000Base-T Ethernet port 4. DC power port 5. Nameplate on the bottom of the device Back Panel Figure 1-12 Back Panel of the RG-ES108GD Note: 1.
-
Page 15: Preparation Before Installation
Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide 2 Preparation Before Installation 2.1 Safety Suggestions To avoid personal injury and device damage, carefully read the safety suggestions before you install the RG-ES100 series switch. The following safety suggestions do not cover all possible dangers. -
Page 16: Static Discharge Damage Prevention
Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide with 30 mA rated action current supports less than ten power supplies (that is, action current of the leakage protector/2/maximum leakage current of each power supply = 30/2/1.5 =10). In other words, the leakage protector with 30 mA rated action current supports no more than ten power supplies. - Page 17 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide In an environment with a low humidity, insulating strips may dry and shrink. Static electric ity may occur easily and endanger circuits on the device. In an environment with a high temperature, the router is subject to more serious harm. Its performance may degrade significantly and various hardware faults may occur.
- Page 18 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide 2.2.4 Grounding A good grounding system is the basis for stable and reliable operati on of the device, preventing lightning strokes and resisting interference. Carefully check the grounding conditions at the installation site according to the grounding requirements, and perform grounding operations properly as required .
-
Page 19: Lightning Resistance
Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide 2.2.5 Lightning Resistance When the AC power cable is imported outdoors and directly connected to the power port of the RG-ES100 series switch, use the lightning line bank to prevent the switch from being hit by lightning shocks. In this case, connect the mains supply AC cable to the lightning line bank, and connect the switch to the lightning line bank. -
Page 20: Installation Tools
Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide 2.3 Installation Tools Table 2-4 Installation Tools Common Tools Phillips screwdriver, cables, bolts, diagonal pliers, and straps Special Tools Anti-static wrist strap Meters Multimeter The tool kit is customer-supplied. -
Page 21: Product Installation
Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide 3 Product Installation 3.1 Installation Flowchart 3.2 Precautions Before Installation Before installation, confirm the following points: Check whether ventilation requirements are met for the switch. - Page 22 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Check whether the requirements of temperature and humidity are met for the switch. Check whether power cables are already laid out and whether the requirements of electrical current are met.
-
Page 23: Mounting The Switch On A Table
Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide 3.3.2 Mounting the Switch on a Table Place the switch on a table. Figure 3-2 Placing the Switch on a Table The device must be installed and operated in the place that can restrict its movement. - Page 24 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Maintain a minimum clearance of 100 mm (3.94 in.) around the device.
-
Page 25: System Commissioning
Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide 4 System Commissioning 4.1 Startup Check 4.1.1 Checking Before the Device Is Powered On The switch is well grounded. The power cable is correctly connected. The power supply voltage complies with the requirement of the switch. -
Page 26: Maintenance And Troubleshooting
Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide 5 Maintenance and Troubleshooting 5.1 Troubleshooting Procedure 5.2 Troubleshooting Common Faults Symptom Possible Causes Solution The status indicator is Check whether the power socket in the equipment The power module does not work. - Page 27 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide The port has special configuration that has no common working mode with the connected switch. The Rx and Tx ends are connected Switch the Rx and Tx ends of the optical fiber.
-
Page 28: Appendix A Connectors And Connection Media
Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Appendix A Connectors and Connection Media 1000BASE-T/100BASE-TX/10BASE-T Ports The 1000BASE-T/100BASE-TX/10BASE-T supports adaptation of three rates and automatic MDI/MDIX crossover at these three rates. The 1000BASE-T complies with IEEE 802.3ab, and uses the cable of 100-ohm Category-5 or Supper Category-5 UTP or STP, which can be up to 100 m. - Page 29 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Optical Fiber Connection For the optical fiber ports, select single-mode or multimode optical fibers for connections according to the optical module connected. Figure A-4 shows the connection schematic diagram. Figure A-4 Optical Fiber Connections...
-
Page 30: Appendix B Mini-Gbic
GBIC module to suit your specific needs. The models and technical specifications of some mini-GBIC modules are listed below. For details, see Ruijie Transceiver Installation and Reference Guide. Table B-1 Models and Technical Specifications of the 1000M Mini-GBIC (SFP) Module... - Page 31 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide 50/125 550 m Mini-GBIC-LX-SM1310 9/125 10 km 62.5/125 275 m GE-eSFP-SX-MM850 50/125 550 m GE-eSFP-LX-SM1310 9/125 10 km GE-SFP-LX-SM1310 9/125 10 km Mini-GBIC-LH40-SM1310 9/125 40 km GE-SFP-SX-SM1310-BIDI 50/125 500 m GE-SFP-SX-SM1550-BIDI...
-
Page 32: Appendix C Lightning Protection
Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Appendix C Lightning Protection Installing the AC Power Arrester (Lightning Protection Cable Row) The external lightning protection cable row must be used on the AC power port to prevent the switch from being struck by lightning when the AC power cable is introduced from the outdoor and directly connected to the power port of the switch. - Page 33 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide During the switch usage, the Ethernet port arrester must be connected to the switch to prevent the switch damage by lightning before the outdoor network cable connects to the switch. Tools: cross or straight screwdriver, multimeter, and diagonal pliers...
- Page 34 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Poor arrester grounding: The grounding line must be as short as possible to ensure that it is in good contact with the switch grounding terminal. Use the multimeter to confirm the contact after grounding.
-
Page 35: Appendix D Cabling Recommendations In Installation
Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Appendix D Cabling Recommendations in Installation When RG-ES100 series switches are installed in standard 19-inch cabinets, cables are tied in the binding rack on the cabinet by the cabling rack, and top or bottom cabling is adopted according to the actual situation in the equipment room. - Page 36 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Cables of different types (such as power cords, signal cables, and ground cables) should be separated in cabling and bundling. When they are close, crossover cabling can be adopted. In the case of parallel cabling, maintain a space of at least 30 mm for power cords and signal cables.
- Page 37 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Cables not to be assembled or remaining parts of cables should be folded and placed in a proper position of the cabinet or cabling slot. The proper position will not affect device running or cause device or cable damage during commissioning.
- Page 38 Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide The hard power cable should be fastened by the terminal connection area to prevent stress. Do not use self-tapping screws to fasten terminals. Power cables of the same type in the same cabling direction should be bundled up into cable bunches, with clean and straight cables in cable bunches.
-
Page 39: Appendix E Site Selection
Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Appendix E Site Selection The equipment room should be at least 5 km away from the heavy pollution source such as the smelter, coal mine , and thermal power plant, 3.7 km away from the medium pollution source such as the chemical industry, rubber industry, and electroplating industry, and 2 km away from the light pollution source such as the food manufacturer and leather plant.
