- Page 1 RG-ES106D-P V2 User Manual To better use the Ruijie device, read this manual before installation and usage, and save the manual for future reference.
-
Page 2: Package Contents
Power Adapter (1.2 m/3.94 ft) KA3 x 25 mm Screw Expansion Anchor User Manual Log in to the official website of Ruijie Networks (https://www.ruijienetworks.com) and enter the corresponding product category to find the product and download the related documentation. Installation 1. -
Page 3: Wall Mounting
2. Wall Mounting Step 1 Take out two expansion anchors and two screws from the packing materials. Step 2 Drill two holes on the wall. The holes should be level with each other and their centers should be 112.6 mm (4.43 in) apart. Hammer the two expansion anchors into the holes, and drive two screws into the expansion anchors. -
Page 4: Leds And Ports

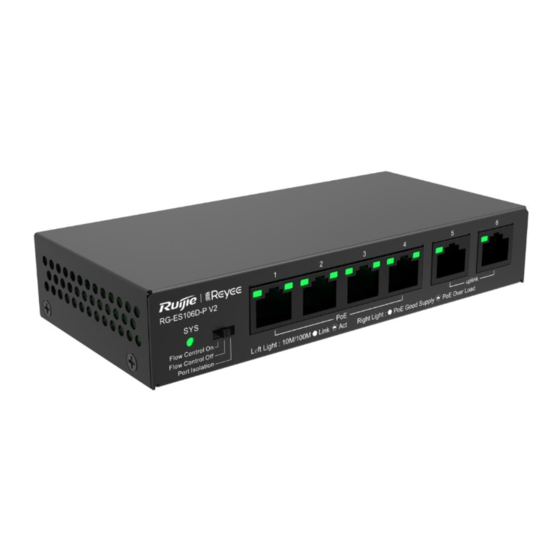

LEDs and Ports ① ② ③ ④ ⑤ 1. System Status LED 4. 10/100Base-T Link/Act LED 2. DIP Switch 5. PoE Status LED 3. 10/100Base-T Self-adaptive Ethernet ports (Ports 1 to 4 are PoE ports) Specifications Model RG-ES106D-P V2 IEEE802.3i, IEEE802.3u, IEEE802.3x, Standard &... -
Page 5: Ce Mark Warning
Standard mode: Flow control is enabled and all ports can communicate with each other. Flow Control Off mode: Flow control is disabled and Working Mode all ports can communicate with each other. VLAN mode: Ports 1 to 4 cannot communicate with each other but they can communicate with ports 5 and 6.
