Product Layout
1. Power LED: Green when the Matrix is powered on.
Red when the Matrix is in standby mode
2. IR Sensor: Receives IR signals from the included
remote control
3. Select Buttons (x16):
Input Select Button (x8): Each button includes 1
LED, one for each source input
Output Select Button (x8): Each button includes 1
LED, one for each display output
4. Control Buttons (x4):
Enter: Press to confirm the operation
Lock: Press for 3 seconds to lock/unlock all from
buttons
All: Selects one input source to display on all
outputs. Example: Source device on input 1 to
display on all displays: Press Input Select 1 + All
+ Enter
Clear: Press this button to clear your selection
5. Memory Save/ Memory Recall: Stores the Matrix'
current switch status to memory
Memory Save: Press and hold button 1-4 to save the
current configuration into memory
Memory Recall. Press button 1-4 to recall the
configuration saved to memory
4

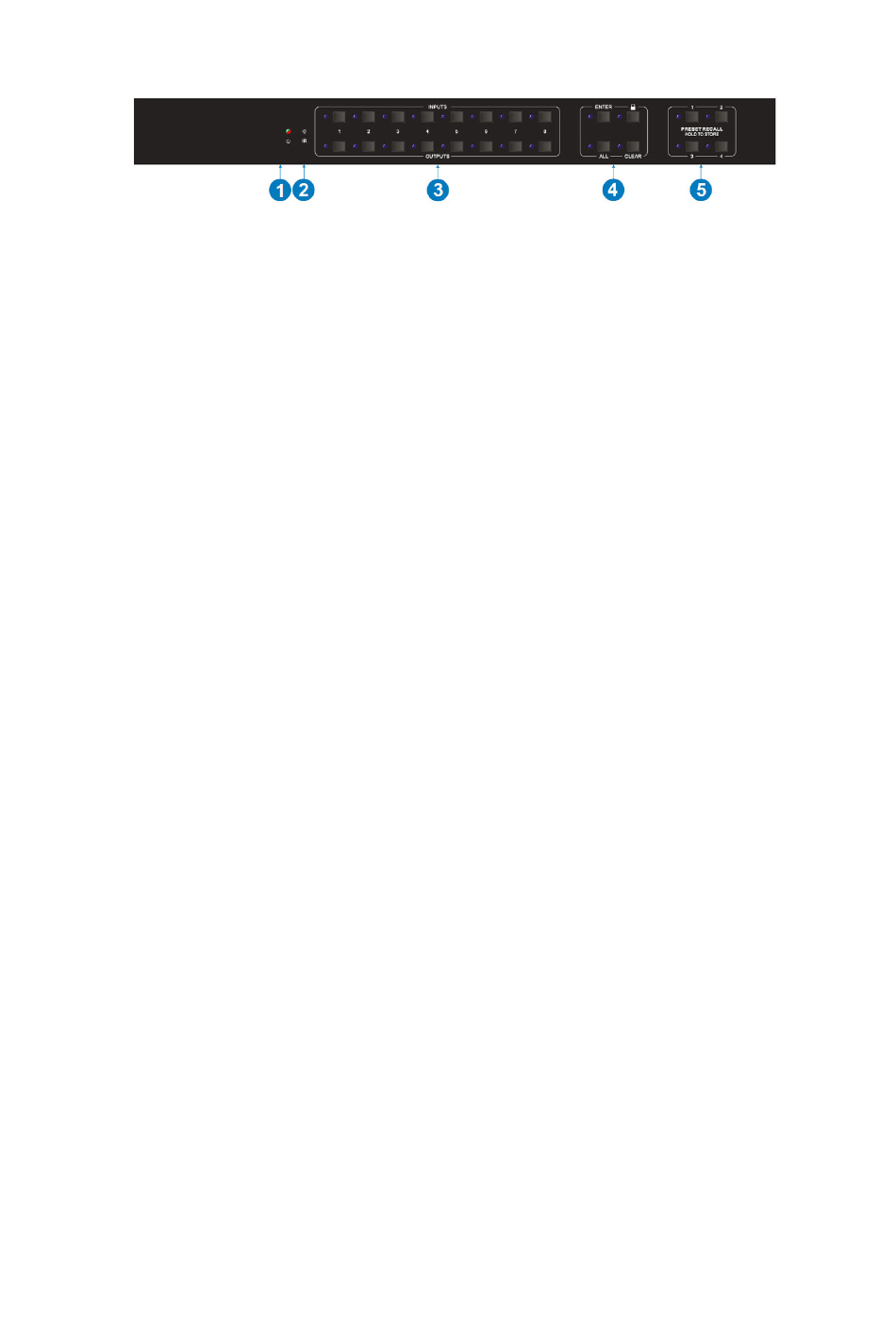

Figure 1: Front Panel Layout
