RS232 Control
Connect the control PC's RS232 serial port to the Matrix
Pro's RS232 port using the included RS232 cable.
RS232 Control Software
The 8x8 Matrix Pro can be controlled from a Windows PC
using an RS232 connection with a 3rd party RS232 control
software such as CommWatch shown below. Please use
the same configuration settings for the RS232 control
software of your choosing.
•
Download CommWatch or the serial command
software of your choice
•
Installation: Copy the control software files and
paste them to the hard driver of your PC
•
Uninstallation: Delete all control software files from
the PC
Basic Settings
1.
Connect all input and output devices as needed,
then connect the PC to the Matrix Pro.
2.
Double click the software icon to run the control

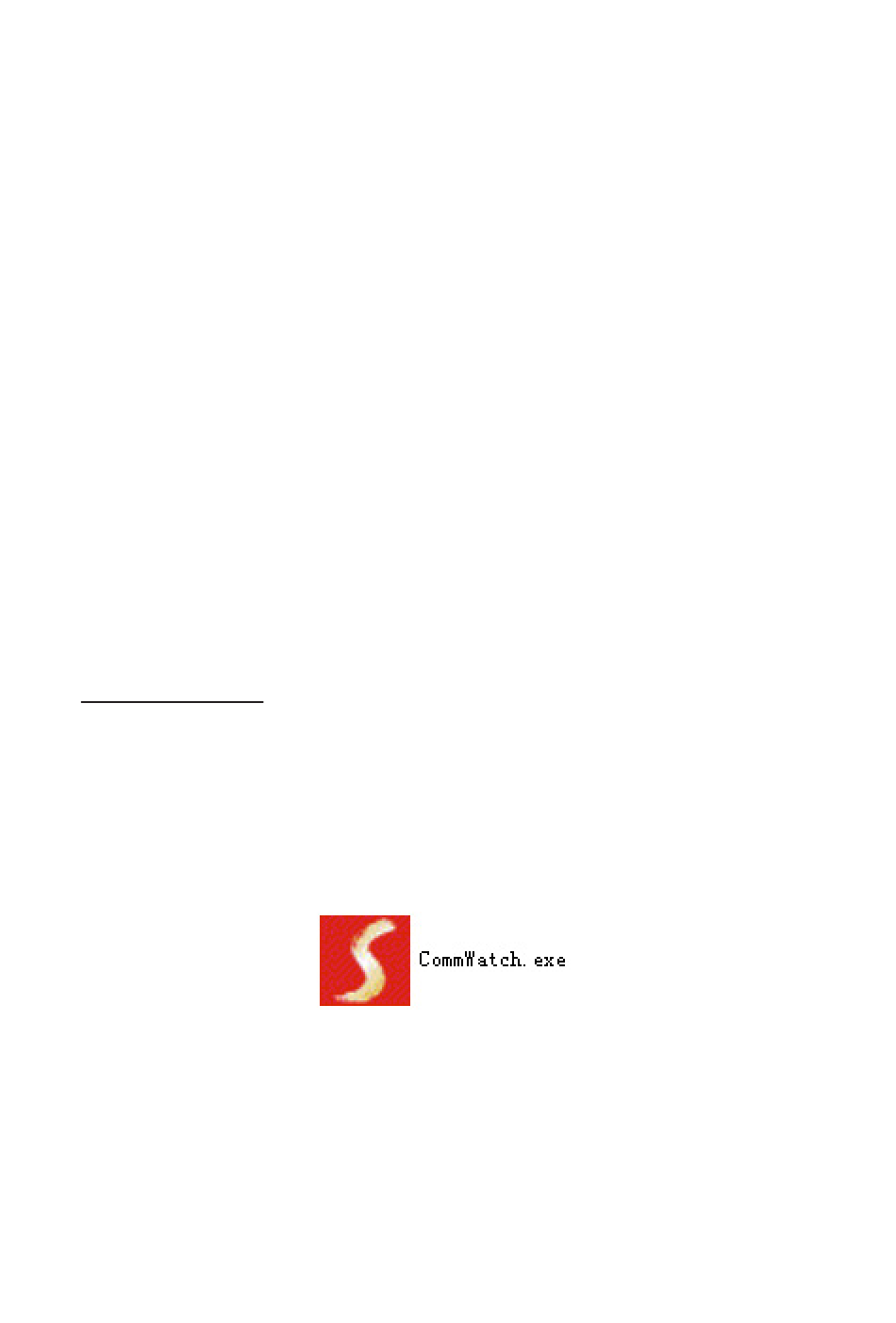

software. The CommWatch icon is shown below.
The examples shown on this page and the following page
are from CommWatch serial command software.
