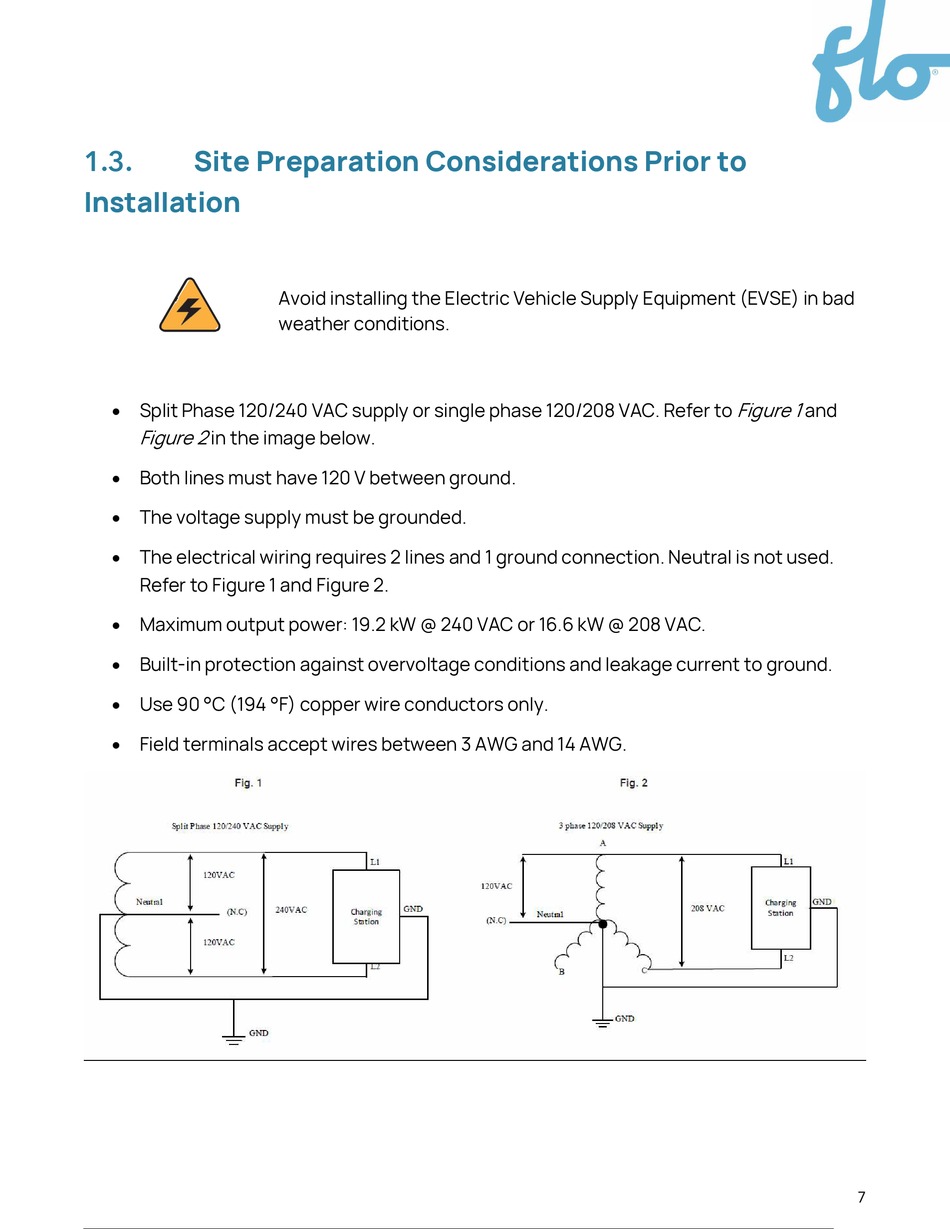

Flo CoRe+ MAX Installation Manual page 7

Site Preparation Considerations Prior to
1.3.
Installation
 Split Phase 120/240 VAC supply or single phase 120/208 VAC. Refer to
Figure 2
in the image below.
 Both lines must have 120 V between ground.
 The voltage supply must be grounded.
 The electrical wiring requires 2 lines and 1 ground connection. Neutral is not used.
Refer to Figure 1 and Figure 2.
 Maximum output power: 19.2 kW @ 240 VAC or 16.6 kW @ 208 VAC.
 Built-in protection against overvoltage conditions and leakage current to ground.
 Use 90 °C (194 °F) copper wire conductors only.
 Field terminals accept wires between 3 AWG and 14 AWG.
Avoid installing the Electric Vehicle Supply Equipment (EVSE) in bad
weather conditions.
Figure 1
and
