Flo CoRe+ MAX Installation Manual page 12

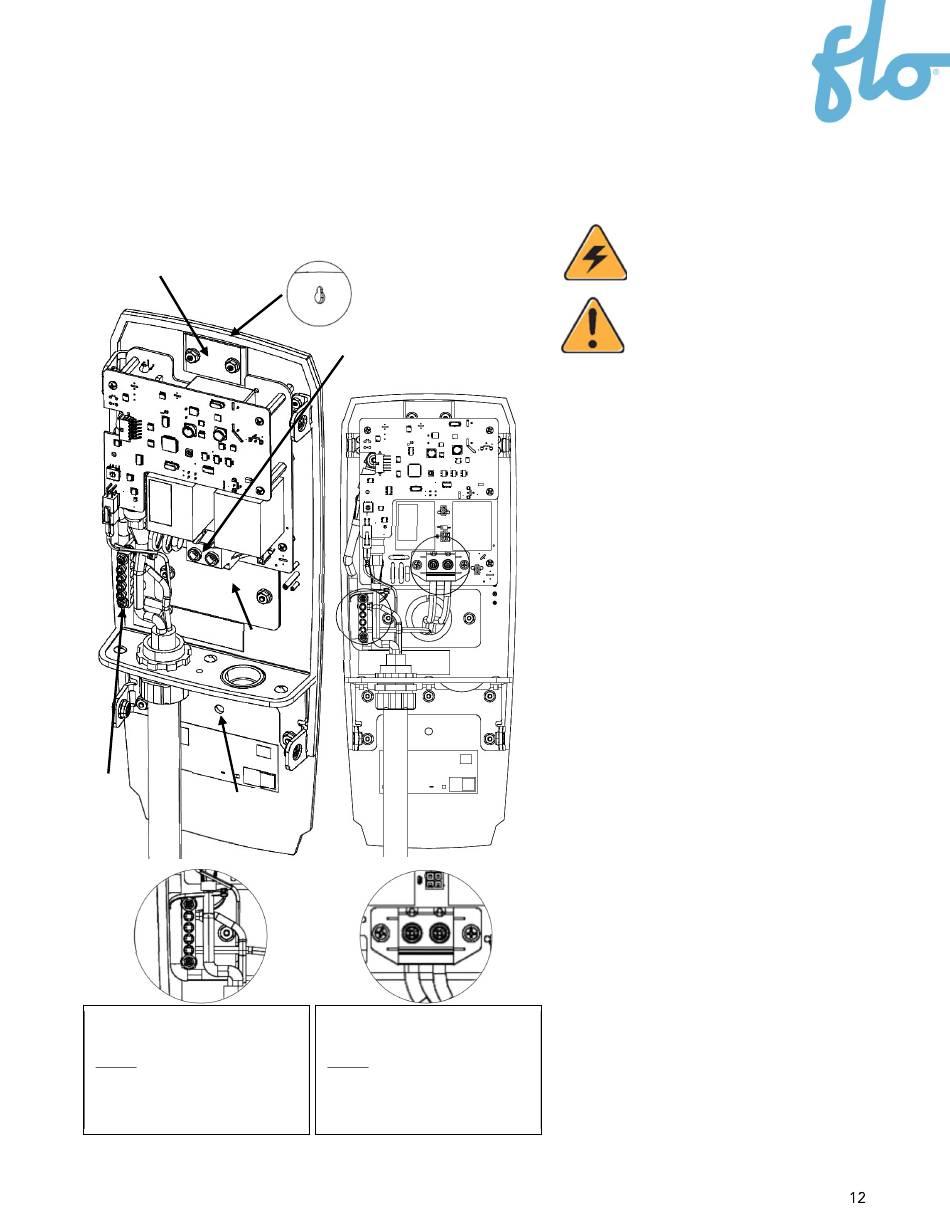

3.3.1. Power Cable Entry on a Station with an Electrical Box
or CoRe+ MAX Pedestal
Protection plate
Back plate
Ground
Bottom anchor
terminal
hole
A
Ground conductor connection
- GND
Torque
6 AWG  4 N-m [35 lb-in]
8 AWG  2.8 N-m [25 lb-in]
10 AWG  2.3 N-m [20 lb-in]
Upper anchor keyhole
Power terminal
B
A
B
Power conductor connection –
L1L2
Torque
3 AWG  3 N-m [27 lb-in]
4 to 14 AWG  2.5 N-m [22 lb-in]
Avoid installing the EVSE in bad
weather conditions.
IMPORTANT:
The protection plate should
always remain over the keyhole.
1. Remove the back plate.
2. Install the head base to align the rectangular
opening with the box opening in the wall or post.
3. Attach the head base to the wall or post with
an anchoring apparatus that can support at
least 56.7 kg (125 lbs.) per anchor point (2) in
the vertical and horizontal directions.
4. Hang the head base on the upper anchor
(previously attached to the wall or post) via the
keyhole at the top. While doing so, ensure that
there is a tight fit and that there is no gap
between the gasket and the mounting wall.
5. Complete the mounting of the head base by
screwing a mounting bolt through the bottom
anchor hole.
6. Make sure that the opening between the
charging station and the electrical box or
pedestal is properly sealed.
7. Connect the two power conductors (L1 and
L2) and the ground conductor (GND) as
indicated with the appropriate torque.
8. The ground conductor must be connected to
the terminal ground.
