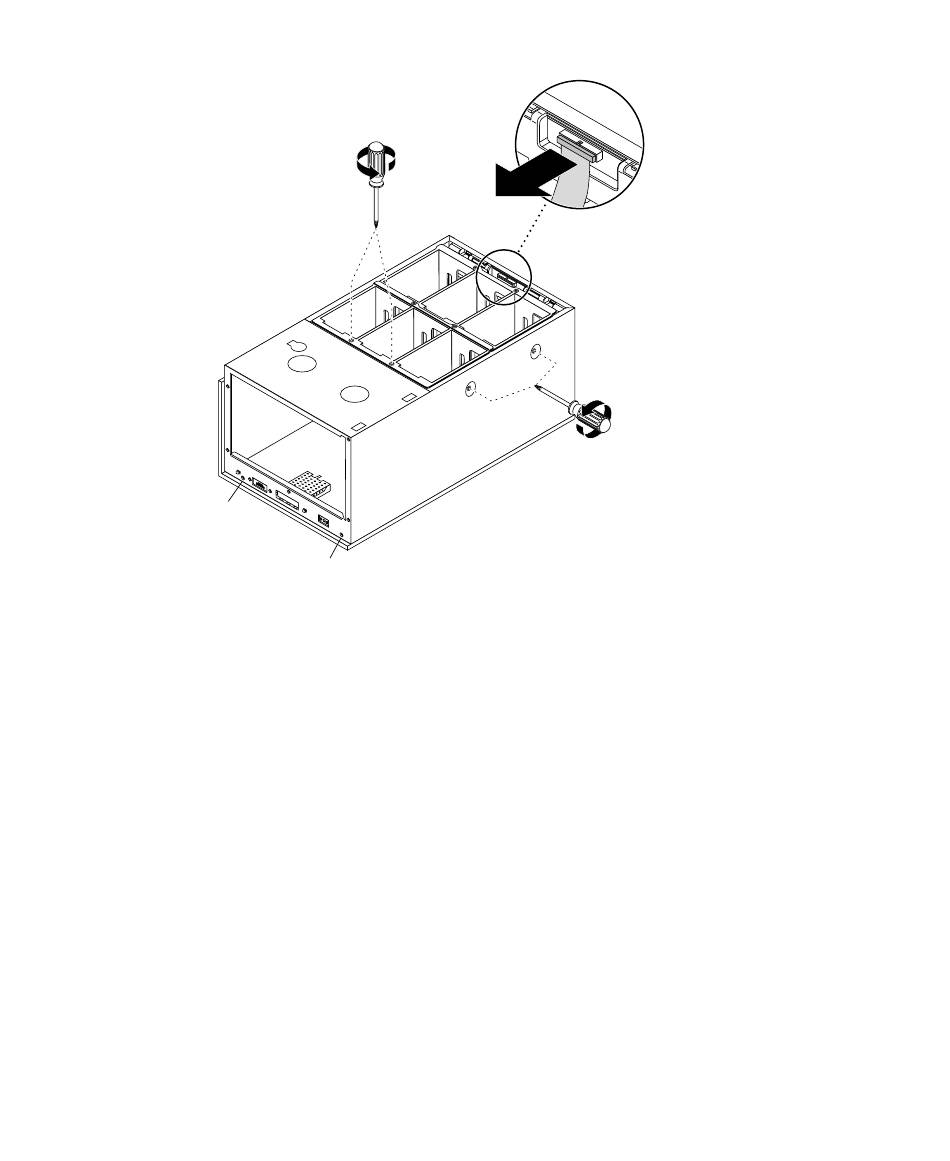

FIGURE 3-24
3.8.2

Removing the LED Clip

1. Remove the LED cable from the LED clip (FIGURE 3-24).
2. Press down on the two clip tabs.
3. Unhook the clip from the chassis.
3.8.3

Replacing the LED Clip and Cable

1. Hang the clip onto the two hooks on the chassis lip.
2. Push the two catches downward on the clip so that the clip snaps are secured to
the chassis.
3. Connect the replacement LED cable to the main logic board (FIGURE 3-25).
B
Removing the Drive Cage and the LED Cable From the LED Clip
Chapter 3 Service 3-27
