Removing the Major Assemblies

1. Turn the MultiPack-FC enclosure so that it rests on its stationary side panel, with
the locking drive access panel facing you.
2. Unlock the drive access panel and remove it.
3. Remove the power supply (four screws and the lock box).
4. Remove the daughter board and its plastic clip from the drive cage (FIGURE 3-23).
Daughter board

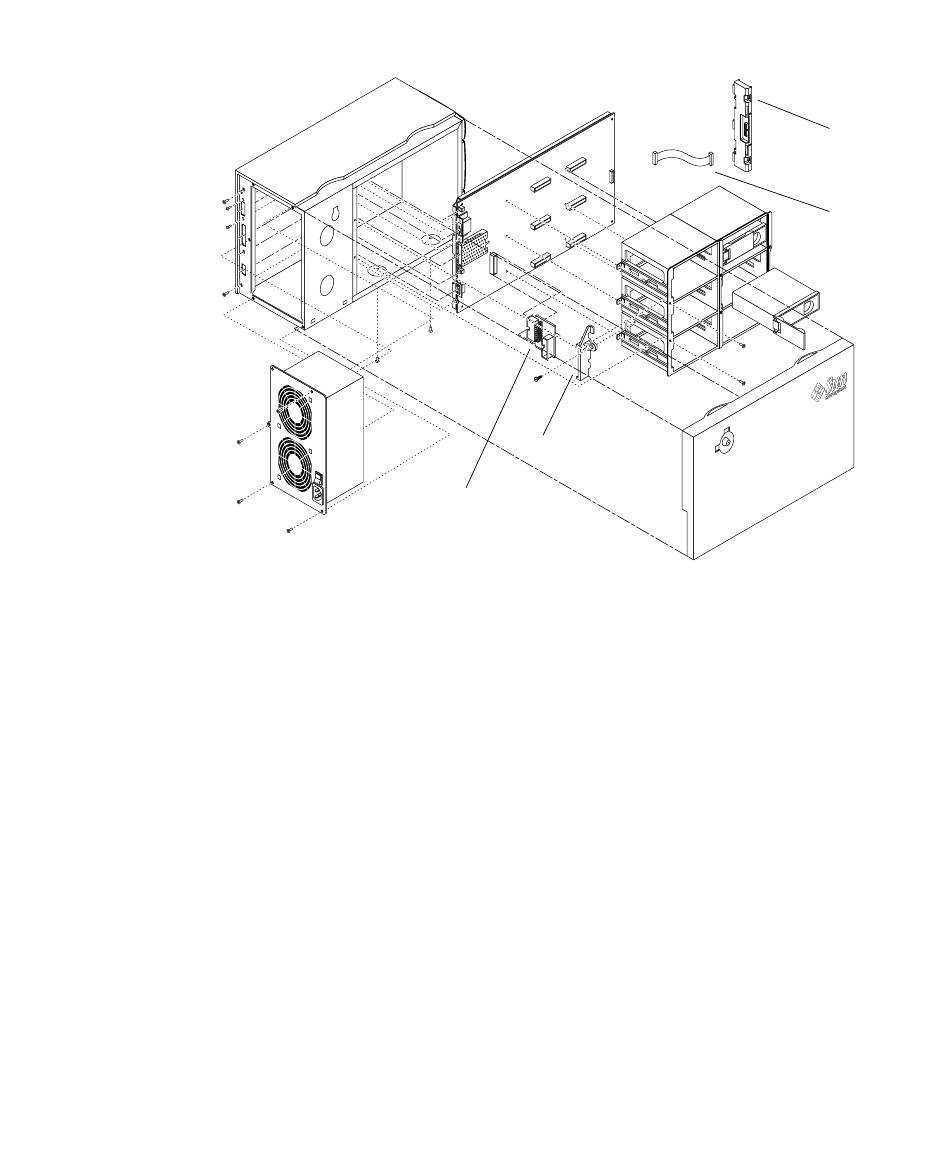

MultiPack-FC Removable Parts Breakdown
Daughter board clip
LED clip
LED cable
