9. Pull the drive cage and backplane assembly upward until the assembly clears the
enclosure. Remove the assembly from the enclosure.
1
2

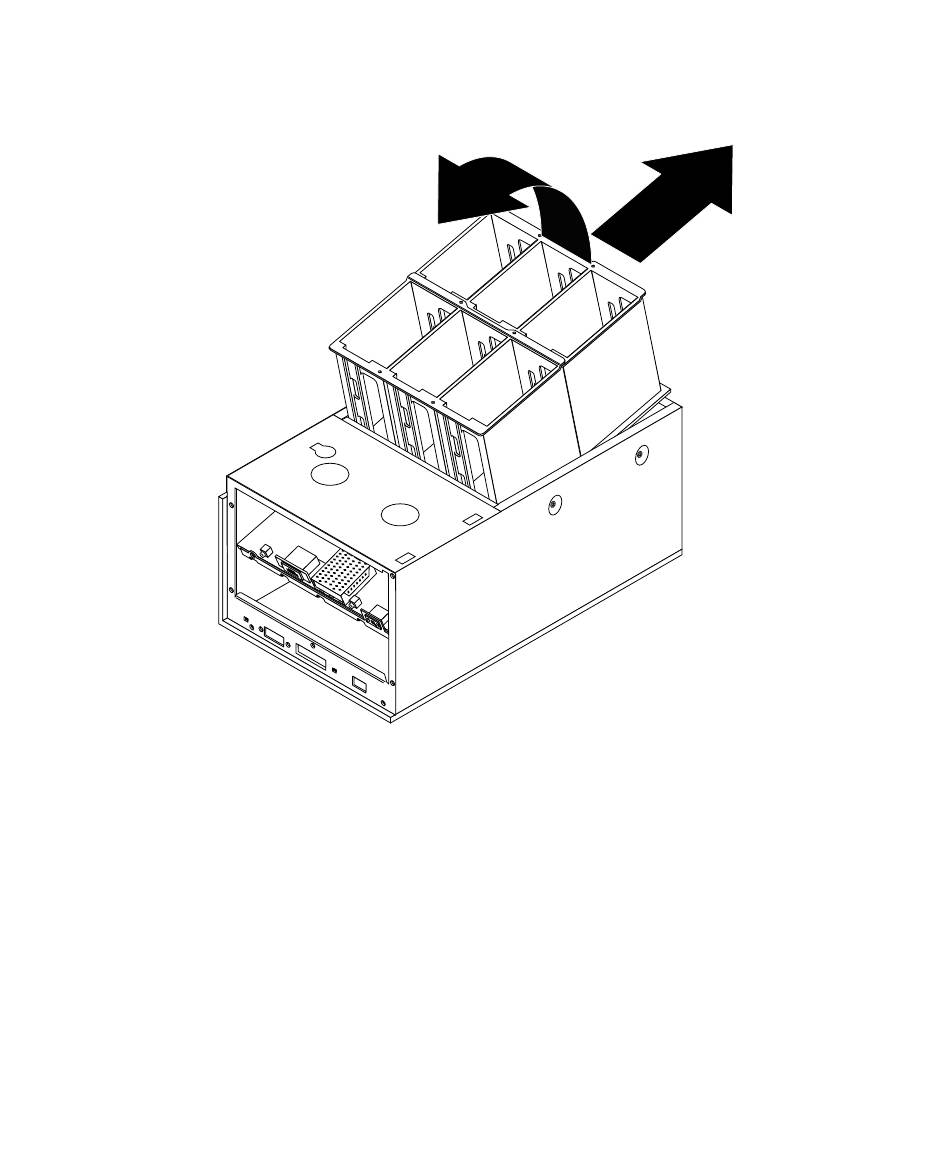

Removing the Drive Cage and Backplane Assembly
FIGURE 3-21
10. Reassemble the system.
a. Replace the drive cage and backplane assembly.
Slide the assembly towards the back of the system so that the screw holes align.
b. Replace the LED cable.
c. Replace the daughter board and the daughter board clip.
d. Replace the power supply.
e. Replace the drives.
f. Replace the drive access panel.
Chapter 3
Service
3-23
