Removing And Replacing The Drive Cage And Backplane; Removing The Drive Cage And Backplane; Section 3.7 "Removing And Replacing The Drive Cage And Backplane - Sun Microsystems StorEdge MultiPack-FC Installation, Operation And Service Manual

Hard drive array

Table of Contents

Lock box

Screw

FIGURE 3-14

4. Reconnect the Fibre Channel cable(s) and power cord.

5. Turn on the power to your system.

See Section 2.4.1 "Powering On the System".

3.7

Removing and Replacing the Drive Cage

and Backplane

3.7.1

1. Be sure that the power to the system is off.

Screw

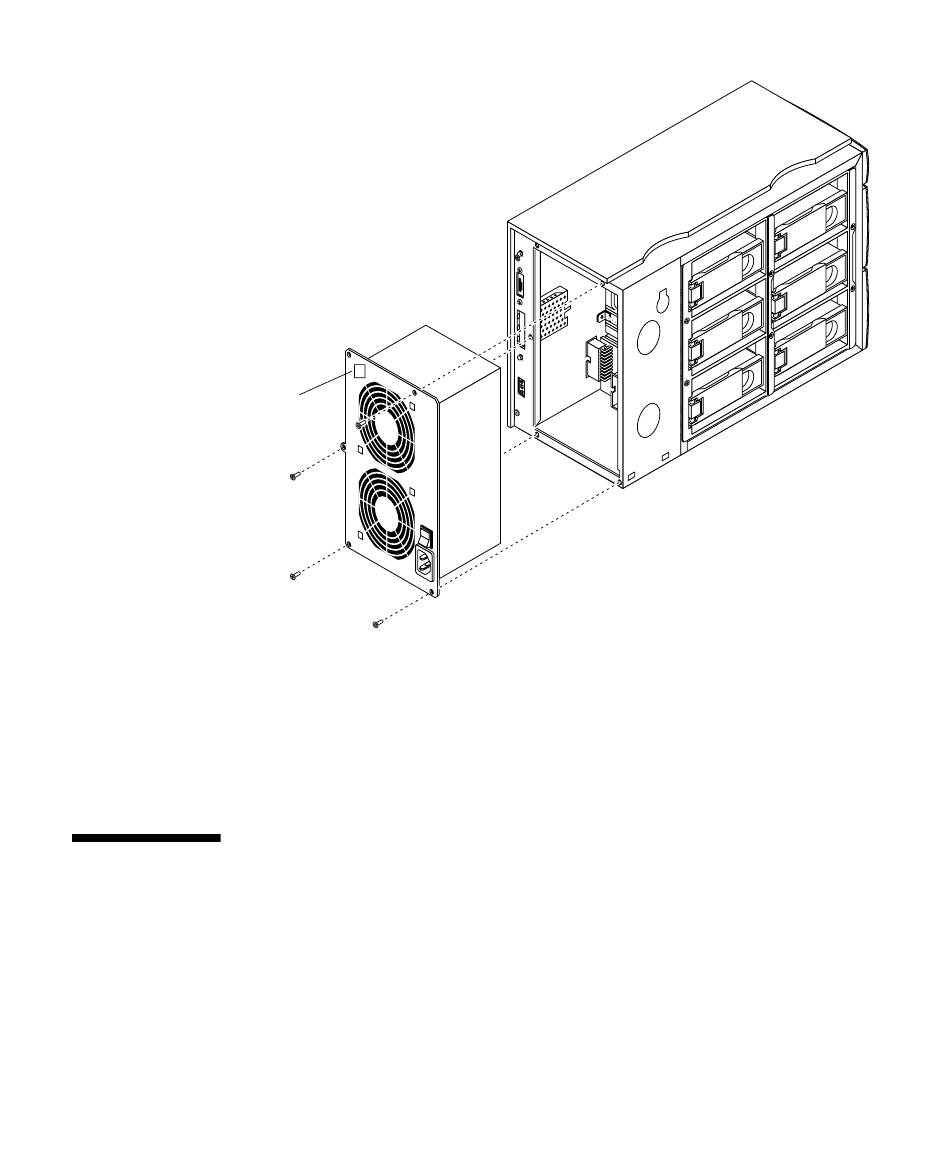

Lock Box and Power Supply Screw Locations on Back Panel

Chapter 3

Service

3-17
