2
PANEL DESCRIPTION

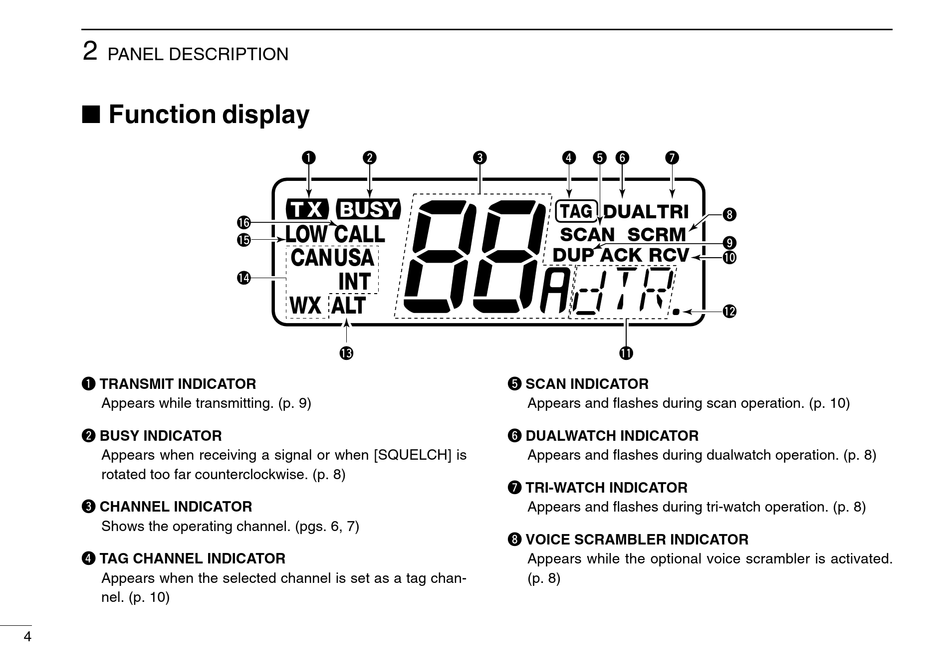

I Function display

q TRANSMIT INDICATOR
Appears while transmitting. (p. 9)
w BUSY INDICATOR
Appears when receiving a signal or when [SQUELCH] is
rotated too far counterclockwise. (p. 8)
e CHANNEL INDICATOR
Shows the operating channel. (pgs. 6, 7)
r TAG CHANNEL INDICATOR
Appears when the selected channel is set as a tag chan-
nel. (p. 10)
4
q w
T X BUSY
!6
LOW CALL
!5
CANUSA
!4
INT
WX ALT
!3
e r t y
TAG DUAL
SCAN SCRM
DUP ACK RCV
!1
t SCAN INDICATOR
Appears and flashes during scan operation. (p. 10)
y DUALWATCH INDICATOR
Appears and flashes during dualwatch operation. (p. 8)
u TRI-WATCH INDICATOR
Appears and flashes during tri-watch operation. (p. 8)
i VOICE SCRAMBLER INDICATOR
Appears while the optional voice scrambler is activated.
(p. 8)
u
TRI
i
o
!0
!2
