I Mounting the transceiver

The universal mounting bracket supplied with your transceiver
allows overhead or dashboard mounting. Please read the fol-
lowing instructions carefully.
• Mount the transceiver securely with the 4 supplied screws
(M5 x 20) to a surface which is more than 10 mm thick and
can support more than 5 kg.
• Mount the transceiver so that the face of the transceiver is at
90 ° to your line of sight when operating it.
CAUTION:
KEEP the transceiver and microphone at
least 1 meter away from your vessel's magnetic navigation
compass.
NOTE: Check the installation angle; the function display
may not be easy-to-read at some angles.
NOTES FOR SUPPLIED STICKER
When installing an optional UT-79
Attach the operation sticker on the top side of the front
panel for reference.
When installing an optional UX-120
Attach the WARNING sticker supplied with the UX-120
near the transceiver's front panel so that it is clearly visible
during operation.
24
:
VOICE SCRAMBLER UNIT
:
DSC UNIT

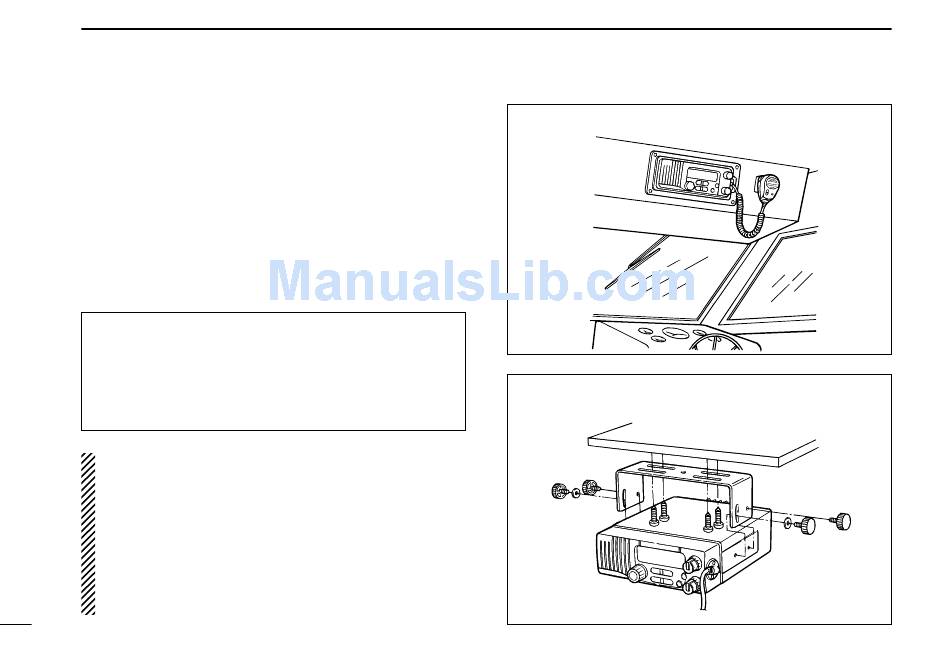

DASHBOARD MOUNTING
OVERHEAD MOUNTING
(with optional MB-28)
