8

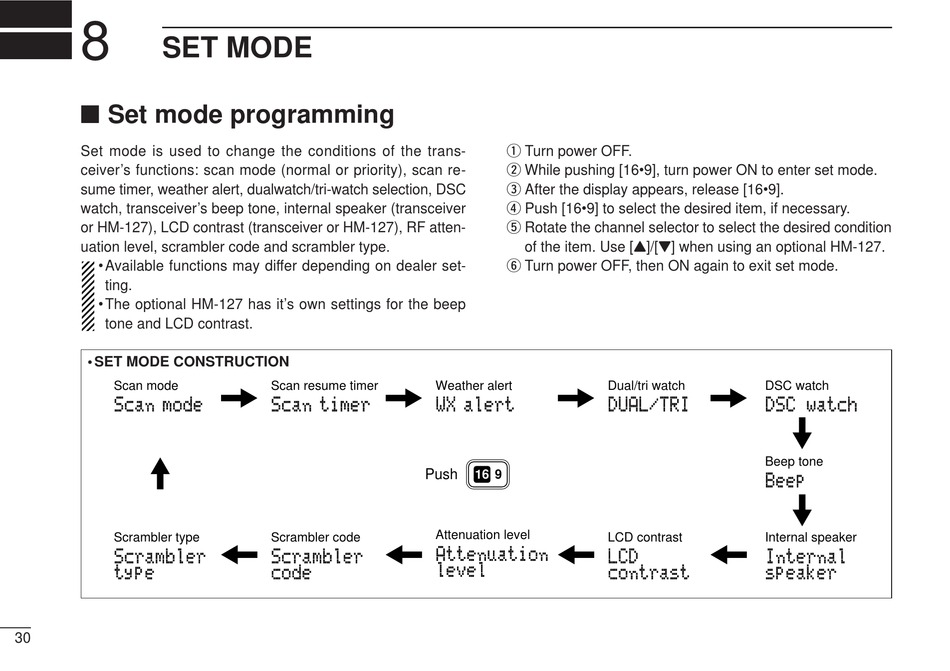

SET MODE

Set mode programming

Set mode is used to change the conditions of the trans-
ceiver's functions: scan mode (normal or priority), scan re-
sume timer, weather alert, dualwatch/tri-watch selection, DSC
watch, transceiver's beep tone, internal speaker (transceiver
or HM-127), LCD contrast (transceiver or HM-127), RF atten-
uation level, scrambler code and scrambler type.
• Available functions may differ depending on dealer set-
ting.
• The optional HM-127 has it's own settings for the beep
tone and LCD contrast.
• SET MODE CONSTRUCTION
Scan mode
Scan mode
Scrambler type
Scrambler
type
30
Scan resume timer Weather alert
Scan timer WX alert
Push
Attenuation level
Scrambler code
Attenuation
Scrambler
level
code
q Turn power OFF.
w While pushing [16•9], turn power ON to enter set mode.
e After the display appears, release [16•9].
r Push [16•9] to select the desired item, if necessary.
t Rotate the channel selector to select the desired condition
of the item. Use [Y]/[Z] when using an optional HM-127.
y Turn power OFF, then ON again to exit set mode.
Dual/tri watch
DUAL/TRI
16 9
LCD contrast
LCD
contrast
DSC watch
DSC watch
Beep tone
Beep
Internal speaker
Internal
speaker
