13
HM-127 REMOTE-CONTROL MICROPHONE

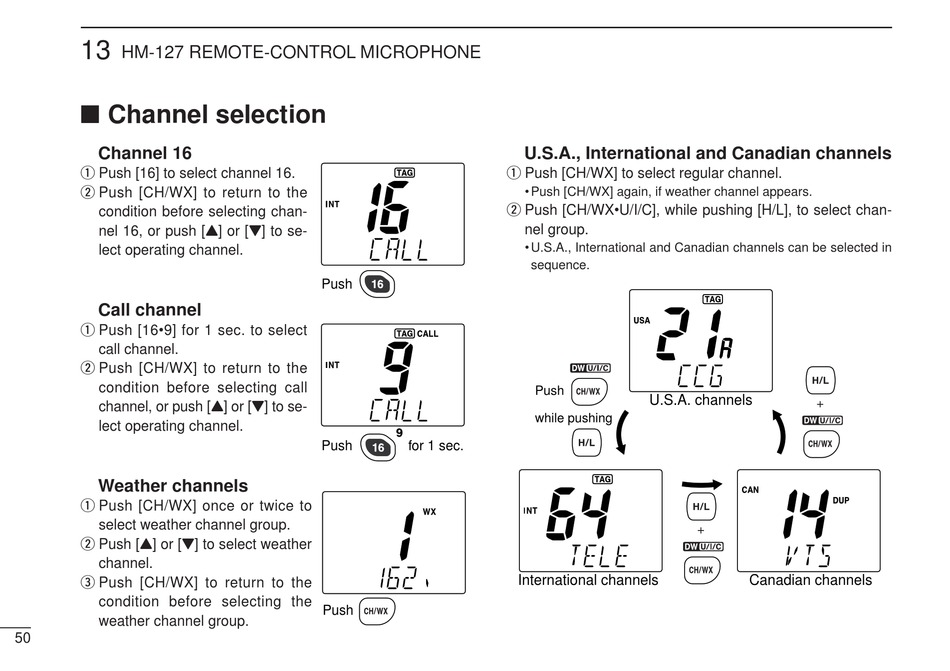

Channel selection

Channel 16
q Push [16] to select channel 16.
w Push [CH/WX] to return to the
condition before selecting chan-
nel 16, or push [Y] or [Z] to se-
lect operating channel.
Call channel
q Push [16•9] for 1 sec. to select
call channel.
w Push [CH/WX] to return to the
condition before selecting call
channel, or push [Y] or [Z] to se-
lect operating channel.
Weather channels
q Push [CH/WX] once or twice to
select weather channel group.
w Push [Y] or [Z] to select weather
channel.
e Push [CH/WX] to return to the
condition before selecting the
weather channel group.
50
Push
Push for 1 sec.
Push
U.S.A., International and Canadian channels
q Push [CH/WX] to select regular channel.
• Push [CH/WX] again, if weather channel appears.
w Push [CH/WX•U/I/C], while pushing [H/L], to select chan-
nel group.
• U.S.A., International and Canadian channels can be selected in
sequence.
Push
U.S.A. channels
while pushing
International channels
+
+
Canadian channels
