Panel Description .......... 2; Microphone - Icom IC-M502 Instruction Manual

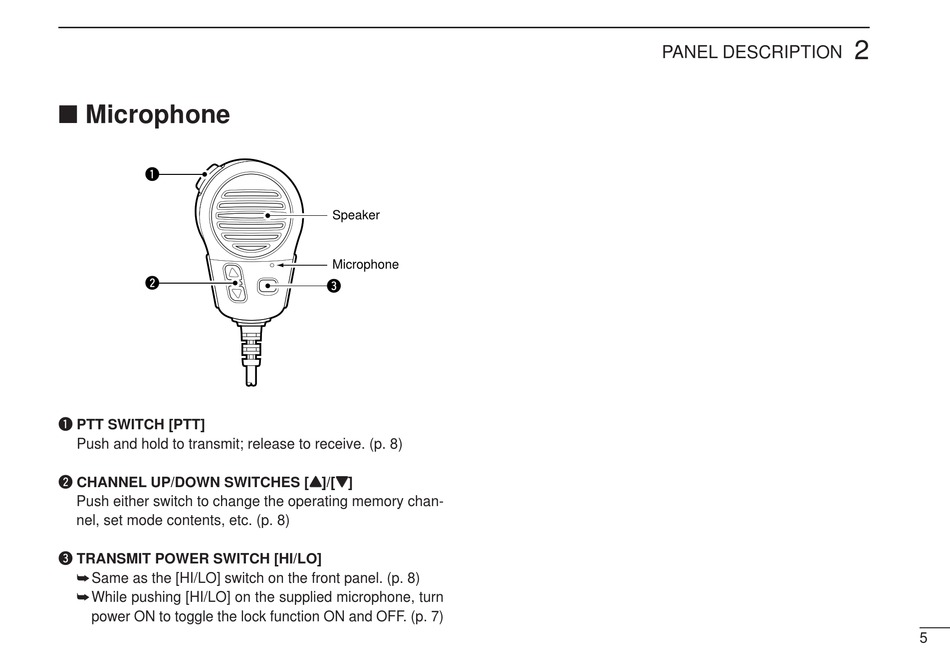

Microphone

q
w
q PTT SWITCH [PTT]
Push and hold to transmit; release to receive. (p. 8)
w CHANNEL UP/DOWN SWITCHES [Y Y ]/[Z Z ]
Push either switch to change the operating memory chan-
nel, set mode contents, etc. (p. 8)
e TRANSMIT POWER SWITCH [HI/LO]
Same as the [HI/LO] switch on the front panel. (p. 8)
While pushing [HI/LO] on the supplied microphone, turn
power ON to toggle the lock function ON and OFF. (p. 7)
Speaker
Microphone
e
PANEL DESCRIPTION
2
5
