r Push [DSC/ENT] to set the position and advance to time
setting condition.
• Push [LO/DX] to abandon the setting and exit the condition.
Input time
UTC: :
Null˘[H/L]
t Rotate the channel selector to select the digit of current
UTC time.
y Push [CH/WX] to advance the cursor.
• Push [SCAN] to move the cursor backward.
• Push [HI/LO] to clear the time.
u Push [DSC/ENT] to set the time.
• Push [LO/DX] to abandon the setting and exit the condition.

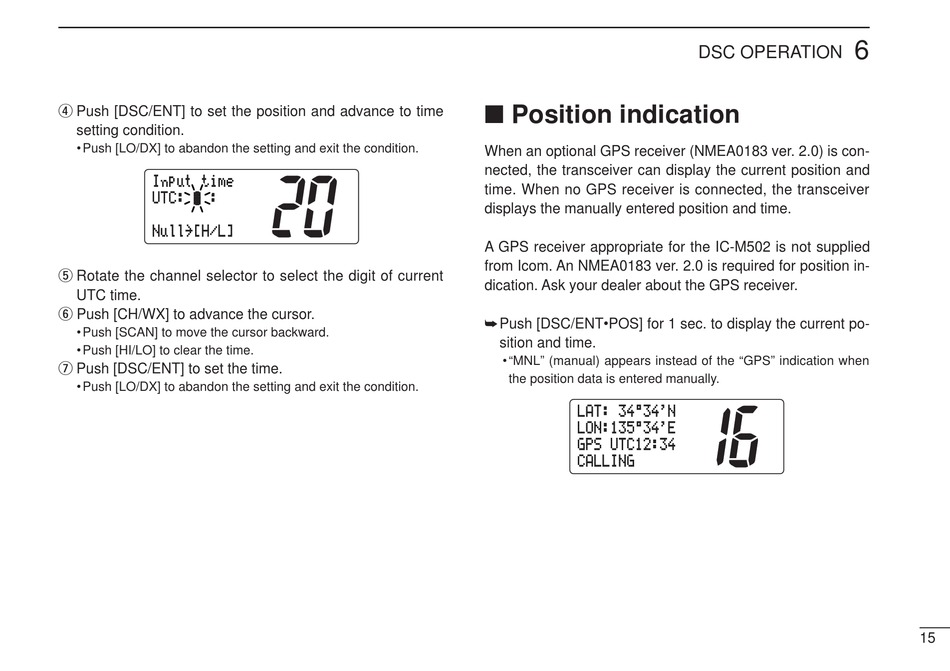

Position indication

When an optional GPS receiver (NMEA0183 ver. 2.0) is con-
nected, the transceiver can display the current position and
time. When no GPS receiver is connected, the transceiver
displays the manually entered position and time.
A GPS receiver appropriate for the IC-M502 is not supplied
from Icom. An NMEA0183 ver. 2.0 is required for position in-
dication. Ask your dealer about the GPS receiver.
Push [DSC/ENT•POS] for 1 sec. to display the current po-
sition and time.
• "MNL" (manual) appears instead of the "GPS" indication when
the position data is entered manually.
LAT: 34°34'N
LON:135°34'E
GPS UTC12:34
CALLING
6
DSC OPERATION
15
