I Function Display - Icom IC-M402A Instruction Manual

2
PANEL DESCRIPTION

I Function display

q
!2
q CHANNEL NUMBER READOUT
➥ Indicates the selected operating channel number.
• " " appears when a simplex channel is selected. " " appears
when a receive only channel for a Canadian channel group
is selected. (p. 7)
➥ In Set mode, indicates the selected condition. (p. 30)
w TRANSMIT INDICATOR (p. 8)
Appears while transmitting.
e BUSY INDICATOR (p. 8)
Appears when receiving a signal or when the squelch
opens.
4

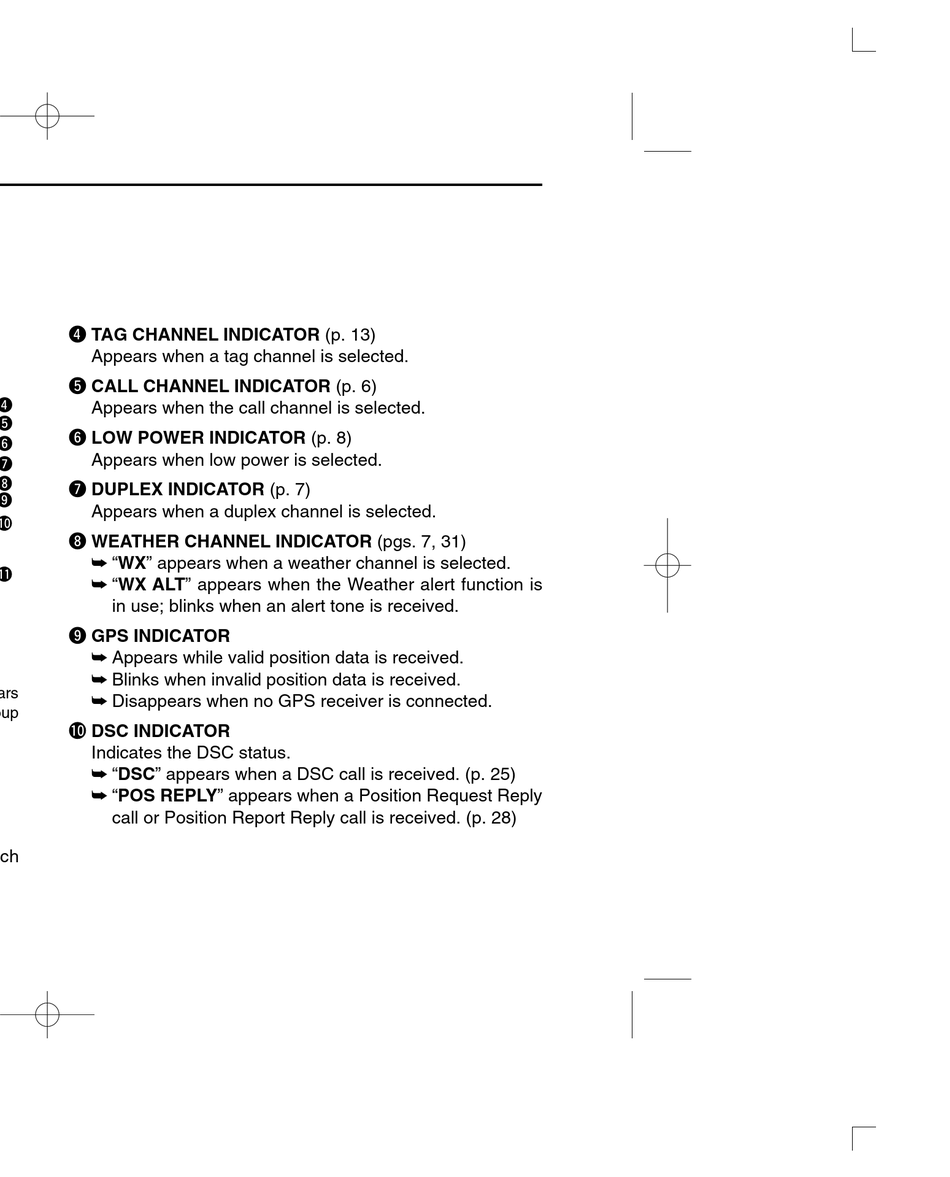

r TAG CHANNEL INDICATOR (p. 13)
w e
t CALL CHANNEL INDICATOR (p. 6)
r
t
y LOW POWER INDICATOR (p. 8)
y
u
i
u DUPLEX INDICATOR (p. 7)
o
!0
i WEATHER CHANNEL INDICATOR (pgs. 7, 31)
!1
o GPS INDICATOR
!0 DSC INDICATOR
Appears when a tag channel is selected.
Appears when the call channel is selected.
Appears when low power is selected.
Appears when a duplex channel is selected.
➥ "WX" appears when a weather channel is selected.
➥ "WX ALT" appears when the Weather alert function is
in use; blinks when an alert tone is received.
➥ Appears while valid position data is received.
➥ Blinks when invalid position data is received.
➥ Disappears when no GPS receiver is connected.
Indicates the DSC status.
➥ "DSC" appears when a DSC call is received. (p. 25)
➥ "POS REPLY" appears when a Position Request Reply
call or Position Report Reply call is received. (p. 28)
