CONNECTIONS AND MAINTENANCE

I Connections

q
w
q DC POWER CONNECTOR
Connects the supplied DC power cable from this connector
to an external 12 V battery.
w EXTERNAL MICROPHONE JACK (IC-M402A only)
Connects to optional HM-127
.
PHONE
e ANTENNA CONNECTOR
Connects a marine VHF antenna with a PL-259 connector
to the transceiver.
CAUTION: Transmitting without an antenna may dam-
age the transceiver.
34
t
r
e
- -
REMOTE CONTROL MICRO

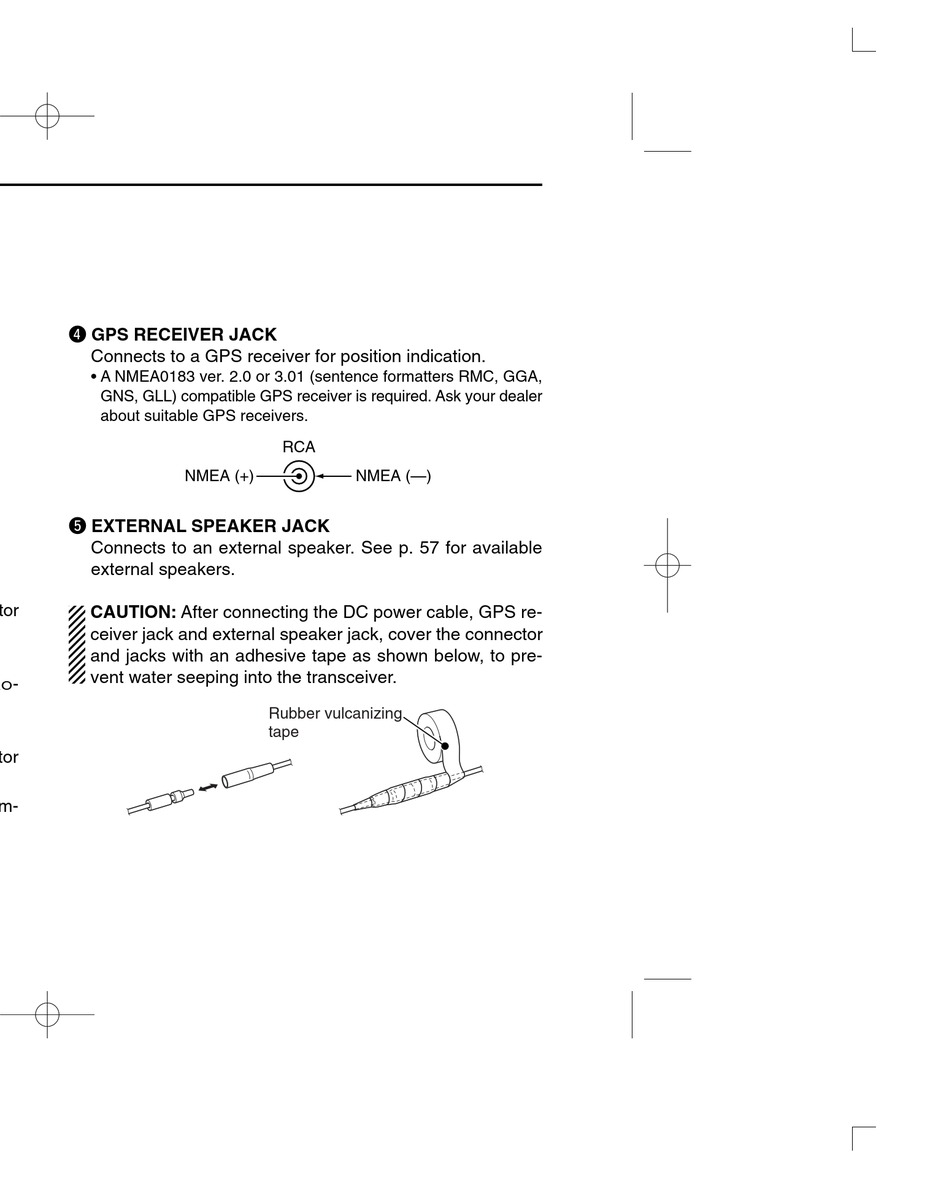

r GPS RECEIVER JACK
Connects to a GPS receiver for position indication.
• A NMEA0183 ver. 2.0 or 3.01 (sentence formatters RMC, GGA,
GNS, GLL) compatible GPS receiver is required. Ask your dealer
about suitable GPS receivers.
RCA
NMEA (+)
t EXTERNAL SPEAKER JACK
Connects to an external speaker. See p. 57 for available
external speakers.
CAUTION: After connecting the DC power cable, GPS re-
ceiver jack and external speaker jack, cover the connector
and jacks with an adhesive tape as shown below, to pre-
vent water seeping into the transceiver.
Rubber vulcanizing
tape
NMEA (—)
