I Transmitting A Dtmf Code - Icom IC-91A Instruction Manual

12
OTHER FUNCTIONS

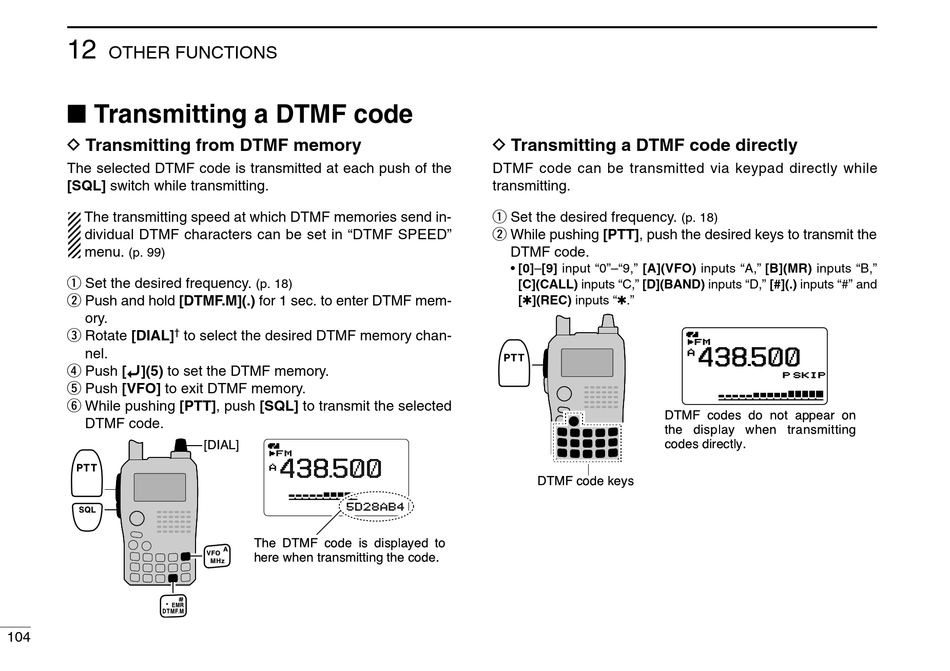

I Transmitting a DTMF code

D Transmitting from DTMF memory
The selected DTMF code is transmitted at each push of the
[SQL] switch while transmitting.
The transmitting speed at which DTMF memories send in-
dividual DTMF characters can be set in "DTMF SPEED"
menu.
(p. 99)
q Set the desired frequency.
w Push and hold [DTMF.M](.) for 1 sec. to enter DTMF mem-
ory.
e Rotate [DIAL]
†
to select the desired DTMF memory chan-
nel.
r Push [ï](5) to set the DTMF memory.
t Push [VFO] to exit DTMF memory.
y While pushing [PTT], push [SQL] to transmit the selected
DTMF code.
104
(p. 18)
438 500
25
µ 000
D Transmitting a DTMF code directly
DTMF code can be transmitted via keypad directly while
transmitting.
q Set the desired frequency.
w While pushing [PTT], push the desired keys to transmit the
DTMF code.
• [0]–[9] input "0"–"9," [A](VFO) inputs "A," [B](MR) inputs "B,"
[C](CALL) inputs "C," [D](BAND) inputs "D," [#](.) inputs "#" and
[✱](REC) inputs "✱."
438 500
25
µ 000
(p. 18)
438 500
