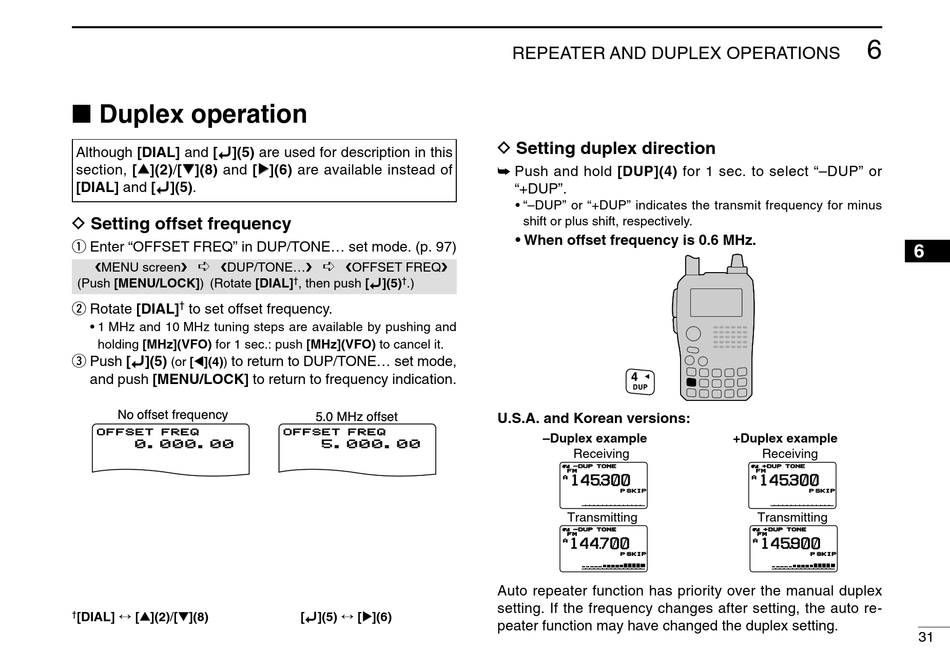

I Duplex operation

Although [DIAL] and [ï](5) are used for description in this
section, [∫ ∫ ](2)/[√ √ ](8) and [≈ ≈ ](6) are available instead of
[DIAL] and [ï](5).
D Setting offset frequency
q Enter "OFFSET FREQ" in DUP/TONE... set mode. (p. 97)
➪
MENU screen DUP/TONE...
(Push [MENU/LOCK]) (Rotate [DIAL]
w Rotate [DIAL]
†
to set offset frequency.
• 1 MHz and 10 MHz tuning steps are available by pushing and
holding [MHz](VFO) for 1 sec.: push [MHz](VFO) to cancel it.
e Push [ï](5)
to return to DUP/TONE... set mode,
(or [Ω Ω ](4))
and push [MENU/LOCK] to return to frequency indication.
[DIAL] ↔ [∫ ∫ ](2)/[√ √ ](8)
†
➪
OFFSET FREQ
† †
, then push [ï](5) .)
[ï](5) ↔ [≈ ≈ ](6)
REPEATER AND DUPLEX OPERATIONS
D Setting duplex direction
➥ Push and hold [DUP](4) for 1 sec. to select "–DUP" or
"+DUP".
• "–DUP" or "+DUP" indicates the transmit frequency for minus
shift or plus shift, respectively.
• When offset frequency is 0.6 MHz.
U.S.A. and Korean versions:
–Duplex example
Receiving
145300
Transmitting
144700
Auto repeater function has priority over the manual duplex
setting. If the frequency changes after setting, the auto re-
peater function may have changed the duplex setting.
6
+Duplex example
Receiving
145300
Transmitting
145900
