Use
Removing the seat upholstery
1) Remove the Phillips head screws on each side (see fig. 15, item 1).
2) Remove the seat upholstery.
Attaching the seat upholstery
1) Lay the seat upholstery onto the frame tubes.
2) Install and tighten the Phillips head screws on each side (see fig. 15, item 1).
Removing the back support upholstery, standard
1) Pull the flap of the back support upholstery off the seat upholstery (see fig. 5).

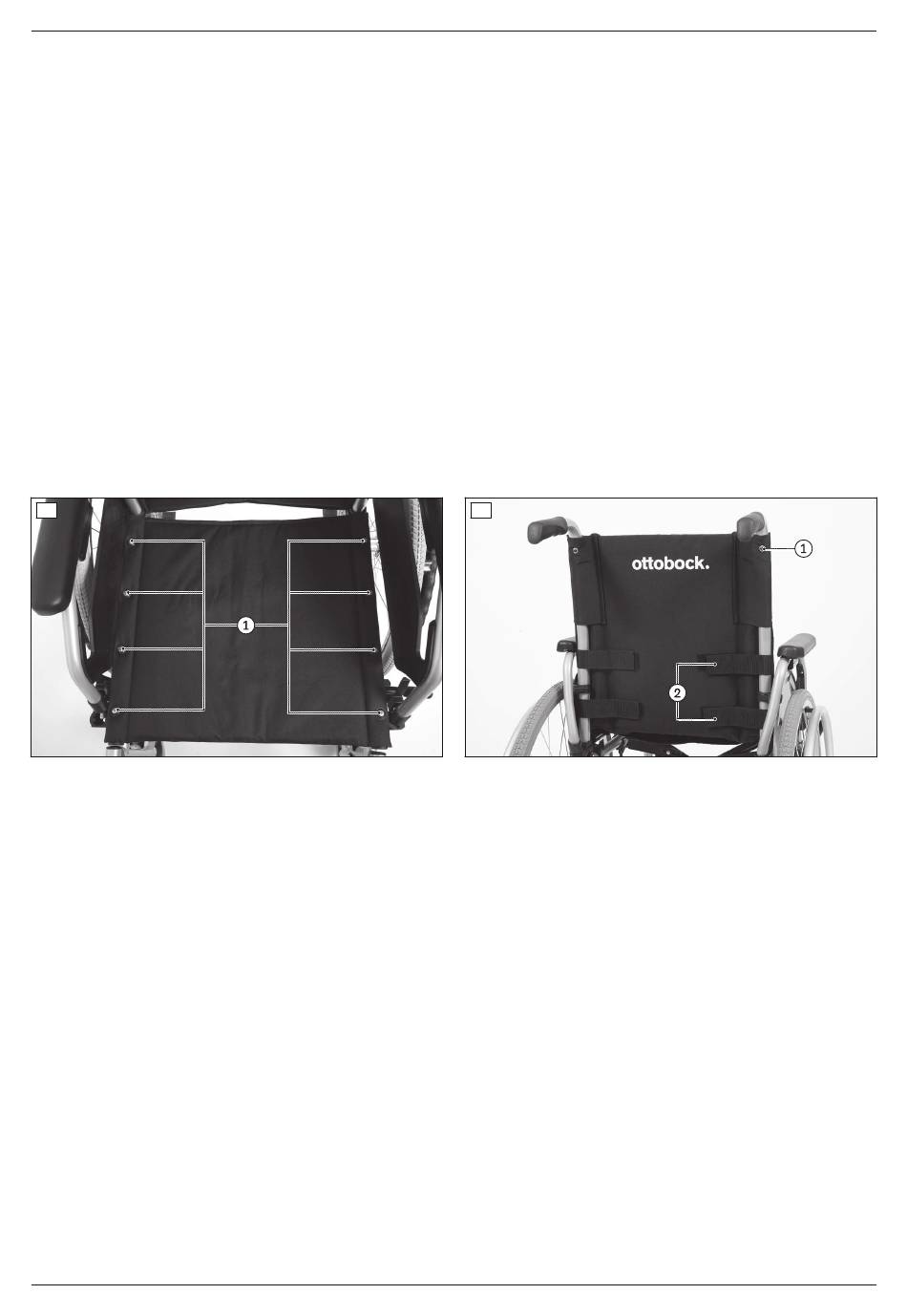

2) Remove the Phillips head screws on both back support tubes (see fig. 16, item 1).
3) Open all hook-and-loop straps (see fig. 16, item 2).
4) Fold the wheelchair halfway and pull the back support upholstery up over the back support tubes and push
handles.
Attaching the back support upholstery, standard
1) Slide the back support upholstery down over the push handles and back support tubes.
2) Install and tighten the Phillips head screws on each side (see fig. 16, item 1).
3) Fasten the hook-and-loop straps (see fig. 16, item 2).
4) Attach the flap of the back support upholstery to the seat upholstery with the hook-and-loop fastener (see
fig. 5).
15
Removing the back support pad (Economy Ergo back support upholstery)
1) Remove the seat cushion.
2) Pull the flap of the back support pad off the seat upholstery (see fig. 5).
3) Fold up the back support pad and pull it off the hook-and-loop straps of the back support upholstery (see
fig. 17).
Attaching the back support pad (Economy Ergo back support upholstery)
1) From the rear, apply the edge of the back support pad to the upper hook-and-loop strap (see fig. 18, arrows).
2) Fold down the back support pad and secure it to the upholstery straps with the hook-and-loop fasteners (see
fig. 17).
3) Pull the part of the flap that can be fastened forward and attach it to the seat upholstery with the hook-and-loop
fastener (see fig. 5).
