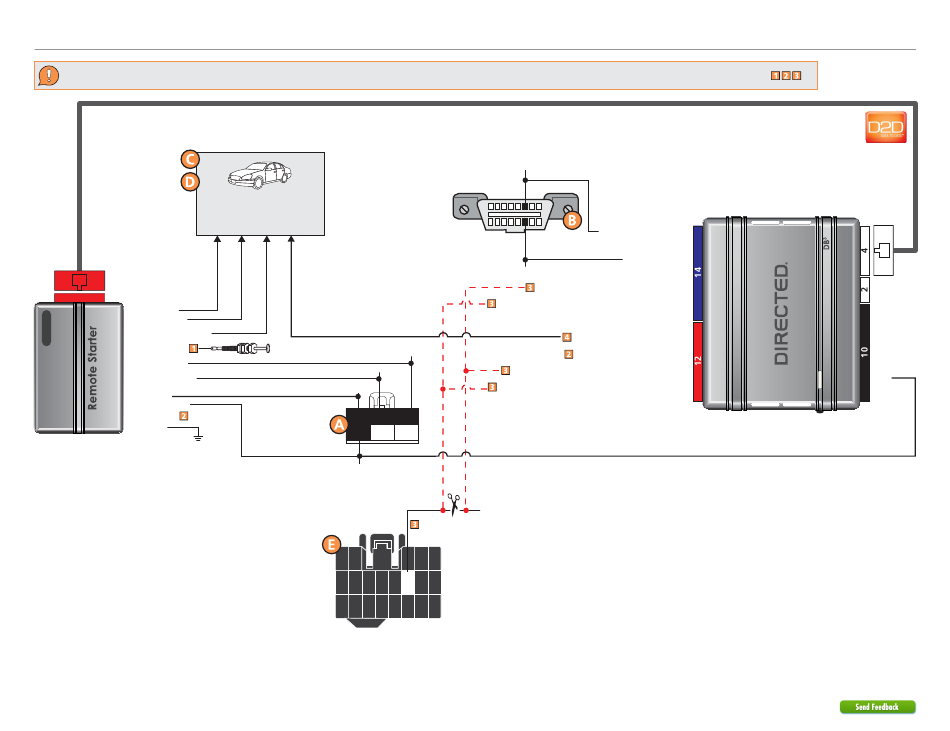

Wiring diagram without OEM alarm
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Refer to the "Vehicle connections"
section for the corresponding
connector, pin and wire color
of your vehicle.
D2D Port
(-) Lock Output
(-) Unlock Output
(-) Parking Lights Output
(-) Hood Pin Input
(+) Starter Output
(+) Accessory Output
(+) 12V Input
(+) Ignition Output
(AC) Tach Input
(-) Ground
6 403.HKHT1 3.25 2013 Hyundai Accent
©2022 VOXX•DEI LLC. All rights reserved.
C-CAN High: Green, pin 6
C-CAN Low: Orange, pin 14
Hood Pin
(+) Starter: White, pin 3
(+) Accessory: Orange, pin 2
(+)12V: Green, pin 1
1 2 3
4 5 6
(+) Ignition: Pink, pin 4
Ignition Switch
(black 6-pin connector)
EMS COM:
Blue/Orange, pin 11
11
EM01
(black 21-pin connector left of junction box)
OBDII
Diagnostic Connector
(connector side view)
1 8
9 16
HS CAN High: Tan/Black: 3
HS CAN Low: Tan: 4
Immo. Data Interrupt (vehicle side): Yellow: 8
Immo. Data Interrupt (connector side): Orange/Yellow: 9
(-) RAP Off Output: Green/Black: 2
(AC) Tach Output: Violet/White: 5
Immo. Data Interrupt (vehicle side): Yellow/Black: 10
Immo. Data Interrupt (connector side): Orange/Black: 11
Cut
).
XKD2D65
9: Pink:
(+) Ignition
Input
