Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Installation Wiring diagram without OEM alarm Wiring diagram with OEM alarm Locating components in the vehicle Vehicle connections Module programming With Transponder Immobilizer Without Transponder Immobilizer Connecting the module LED diagnostics and troubleshooting Soft reset Hard reset Feature programming...
Page 3: Introduction

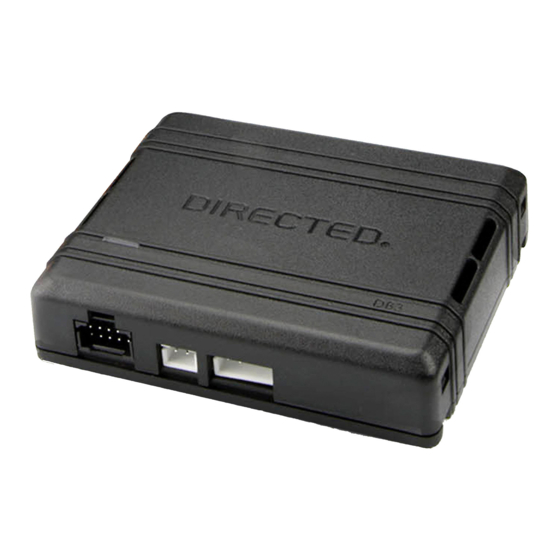

Introduction DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.HKHT1 3.25 2013 Hyundai Accent ©2022 VOXX•DEI LLC.
Page 4: Vehicle Function Compatibilities
Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart. Immobilizer Bypass-Data No Key Req'd Brake Status (foot brake) Remote Start Takeover Tach / RPM Output 403.HKHT1 3.25 2013 Hyundai Accent...
Page 5: Pre-Installation And Application Warnings
Pre-installation and application warnings This section highlights important information for this specific firmware and will assist in pricing accordingly, as START HERE well as bringing awareness to any operational or vehicle limitations. Compatibilities and Requirements T-Harness Keys required for Keys required T-Harness is not compatible.
Page 6: Installation
Wiring diagram without OEM alarm Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( OBDII Diagnostic Connector (connector side view) XKD2D65 C-CAN High: Green, pin 6 Refer to the “Vehicle connections” section for the corresponding connector, pin and wire color of your vehicle.
Page 7: Wiring Diagram With Oem Alarm
Wiring diagram with OEM alarm Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( OBDII Diagnostic Connector (connector side view) C-CAN High: Green, pin 6 Refer to the “Vehicle connections” section for the corresponding XKD2D65 connector, pin and wire color...
Page 9: Vehicle Connections
Vehicle connections The connection information listed below is specific to the 2013 Hyundai Accent. Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1 Light Green...
Page 10 Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green (-) W2W Only - Lock Input Remote Starter H3/2 Blue (-) W2W Only - Unlock Input Remote Starter H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter H3/4 Red/Black No Connection...
Page 11 Additional remote start connections (Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.) Connects To Wire Wire Location (+/-) Wire Color 12 Volts Ignition Switch, black 6 pin plug, pin 1 Green (50A) Accessory Ignition Switch, black 6 pin plug, pin 2...
Page 12: Module Programming
Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. With Transponder Immobilizer Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift is in the neutral position.
Page 13: Without Transponder Immobilizer
Without Transponder Immobilizer Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift is in the neutral position. The harnesses must be connected in this exact order: ...
Page 14: Connecting The Module
Connecting the module Important! Make all the required connections to the vehicle, as described in this guide, and double check to ensure everything is correct prior to moving onto programming. Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application. Flashing a module using your computer: 1.
Page 15: Led Diagnostics And Troubleshooting
LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If Module has no power.
Page 16 Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...
Page 17: Soft Reset
Soft reset A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness.
Page 18: Feature Programming
Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g.
Page 19: Feature And Option List
Feature and option list It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.
Page 20: Limited One Year Consumer Warranty
Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor.
Page 21: Quick Reference Guide
& 2. Aftermarket remote. The parking lights will flash once to indicate the vehicle is Parking lights flash x1 Press Remote 3. Directed SmartStart application via your smartphone. now in Pit Stop Mode. ® Start button* Exit the vehicle with the factory remote in hand (it is safe If applicable, you can also start the engine remotely by pressing the Lock button 3 times to leave the engine running).
