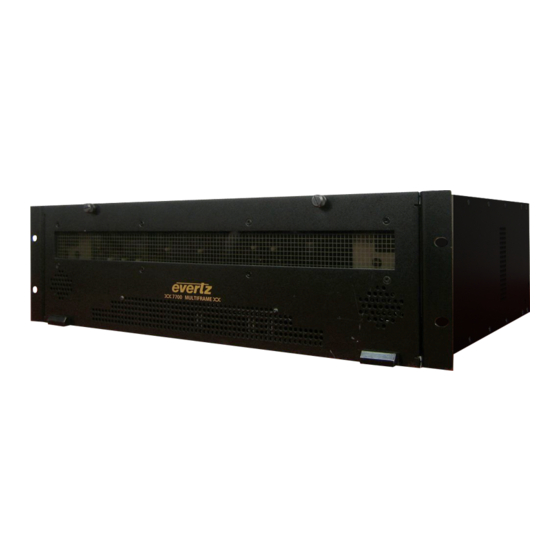

evertz 7700 MultiFrame Manual
3g/hd/sd-sdi intelligent distribution amplifier (1x8)
Hide thumbs
Also See for 7700 MultiFrame:
- Manual (58 pages) ,
- User manual (32 pages) ,
- Manual (26 pages)
Table of Contents
Advertisement
Quick Links
1. OVERVIEW .......................................................................................................................................... 1
2. INSTALLATION .................................................................................................................................... 4
3. SPECIFICATIONS ................................................................................................................................ 5
3.1.
SERIAL VIDEO INPUT ............................................................................................................... 5
3.2.
SERIAL VIDEO OUTPUTS ......................................................................................................... 5
3.3.
ELECTRICAL ............................................................................................................................. 5
3.4.
PHYSICAL ................................................................................................................................. 5
4. STATUS LEDS ..................................................................................................................................... 6
5. CARD EDGE MODULE CONTROL...................................................................................................... 7
5.1.
CARD-EDGE CONTROL ........................................................................................................... 7
5.1.1.
Navigating the Card-Edge ............................................................................................... 7
5.2.
CARD-EDGE MENU STRUCTURE ............................................................................................ 7
5.3.
SETTING THE DISPLAY ORIENTATION ................................................................................... 7
5.4.
PRESET PARAMETERS ............................................................................................................ 8
5.4.1.
Saving Presets ................................................................................................................ 8
5.4.2.
Loading Presets .............................................................................................................. 8
5.5.
VIDEO PARAMETERS ............................................................................................................... 8
5.5.1.
Forcing a Video Standard................................................................................................ 8
5.5.2.
Viewing the Input Video Standard ................................................................................... 8
®
6.1.
6.2.
GENERAL ................................................................................................................................ 10
6.3.
VIDEO CONTROL .................................................................................................................... 11
6.3.1.
Viewing the Detected Video Standard ........................................................................... 11
6.4.
AUDIO CONTROL (+UMX, +IG AND +DMX ONLY) ................................................................ 11
6.4.1.
C-bit Control .................................................................................................................. 11
6.5.
MIXER CONTROL (+UMX, +IG AND +DMX VERSIONS ONLY) ............................................. 12
7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8)
TABLE OF CONTENTS
? ............................................................................................................. 9
®
Revision 1.2
7700/7800 MultiFrame Manual
Page - i
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for evertz 7700 MultiFrame
Summary of Contents for evertz 7700 MultiFrame
-
Page 1: Table Of Contents
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) TABLE OF CONTENTS 1. OVERVIEW ............................1 2. INSTALLATION ............................ 4 3. SPECIFICATIONS ..........................5 3.1. SERIAL VIDEO INPUT ....................... 5 3.2. SERIAL VIDEO OUTPUTS ......................5 3.3. ELECTRICAL ..........................5 3.4. - Page 2 7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.5.1. Source X/Y ........................12 6.5.2. Gain Adjust X ........................ 14 6.5.3. Invert Enable X ......................14 6.6. PRESET CONTROL ......................... 14 6.6.1. Saving Presets ......................14 6.6.2. Loading Presets ......................14 6.6.3.
- Page 3 7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.11.6. Detecting Video Level Problems ................... 29 6.11.6.1. Black Threshold ....................30 6.11.6.2. White Threshold ....................30 6.11.6.3. Error Quantity ....................30 6.11.6.4. Black Warning Level ..................30 6.11.6.5. White Warning Level ..................31 6.11.6.6.
- Page 4 7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) Figures Figure 1-1: 7800IDA8-3G Block Diagram ......................2 Figure 1-2: 7800IDA8-3G+IG Block Diagram ......................2 Figure 1-3: 7800IDA8-3G+UMX Block Diagram....................3 Figure 1-4: 7800IDA8-3G+DMX Block Diagram....................3 Figure 2-1: 7800IDA8-3G Rear I/O Module ......................4 Figure 4-1: Status LEDs ............................
- Page 5 Oct 2014 Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of Evertz products are for informational use only and are not warranties of future performance, either expressed or implied.
- Page 6 7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) This page left intentionally blank Page - vi Revision 1.2...
-
Page 7: Overview
Offers award winning IntelliTrak™ Lipsync control (+IT) • SNMP configuration via 7700FC Evertz® frame controller The 7800IDA8-3G occupies one card slot and can be housed in the 3RU 7700FR-C, 7800FR and 7800FR-QT frames that have a 15-slot capacity. The 7700FC frame controller is required for configuration. -
Page 8: Figure 1-1: 7800Ida8-3G Block Diagram
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 3G/HD/SD-SDI 3G/HD/SD-SDI Parallel Input Reclocker 8 Processed 3G/HD/SD-SDI Outputs VistaLINK Control ® Control Interface Alphanumeric Card Edge Status Display Card Edge Control Figure 1-1: 7800IDA8-3G Block Diagram 3G/HD/SD-SDI Audio 3G/HD/SD-SDI Parallel Re-embedder Input Reclocker... -
Page 9: Figure 1-3: 7800Ida8-3G+Umx Block Diagram
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 3G/HD/SD-SDI Audio 3G/HD/SD-SDI Parallel Input Re-embedder Reclocker Audio De-embed 8 Processed Group 1 3G/HD/SD-SDI Outputs Audio De-embed Group 2 Audio De-embed Audio Proc/ Group 3 Shuffle/ Mixer Audio De-embed Group 4 Upmix +UMX VistaLINK... -
Page 10: Installation
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) INSTALLATION The 7800IDA8-3G comes with a companion rear plate that occupies one slot in the frame. information on inserting the module into the frame see section 3 of the 7800FR chapter. Figure 2-1: 7800IDA8-3G Rear I/O Module 3G/HD/SD-SDI INPUT: Input BNC connector for 10-bit serial digital video signals compatible with the... -
Page 11: Specifications
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) SPECIFICATIONS 3.1. SERIAL VIDEO INPUT Standard: Auto-detects standard 3Gb/s SMPTE 424M, 1.5Gb/sec SMPTE 292M, 270Mb/s SMPTE 259M-C (525i/59.94 or 625i/50) Connector: 1 BNC per IEC 61169-8 Annex A Input Equalization: Automatic to 100m @ 3Gb/s, 140m @ 1.5Gb/s & 400m @ 270Mb/s (Belden 1694A cable) Return Loss: >... -
Page 12: Status Leds
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) STATUS LEDS The 7800IDA8-3G has eight LED Status indicators on the front card edge to show operational status of the card at a glance. Figure 7-1 shows the location of the LEDs. Two large Module Status LEDs on the front of the board indicate the general health of the module: LOCAL FAULT: This Red LED indicates poor module health and will be On during the absence of a... -
Page 13: Card Edge Module Control
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) CARD EDGE MODULE CONTROL 5.1. CARD-EDGE CONTROL The 7800IDA8-3G is equipped with a push-button shaft encoder and a four character dot matrix display to control various functions on the card. The push-button shaft encoder is used to navigate through a menu system to set and monitor various parameters for the module. -
Page 14: Preset Parameters
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 5.4. PRESET PARAMETERS The PRST menu option enters into a selection menu to either recall or save a preset. SAVE Menu option to save current module state to a selected preset. LOAD Menu option to load to the module a selected preset. -
Page 15: Vistalink ® Module Control
LINK ® VistaLINK is Evertz’s remote monitoring and configuration platform which operates over an Ethernet ® network using Simple Network Management Protocol (SNMP). SNMP is a standard computer network protocol that enables different devices sharing the same network to communicate with each other. -
Page 16: General
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.2. GENERAL The General tab shows miscellaneous parameters of the module. These parameters are listed below: Card Name: Indicates the product model number of the card (including installed options). Firmware Version: Indicates the currently installed firmware version. -
Page 17: Video Control
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.3. VIDEO CONTROL The Video Control tab is used to force a video standard and read back the currently detected video standard on the input. 6.3.1. Viewing the Detected Video Standard The Detected Video Standard field displays the currently detected input video standard. -
Page 18: Mixer Control (+Umx, +Ig And +Dmx Versions Only)
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.5. MIXER CONTROL (+UMX, +IG AND +DMX VERSIONS ONLY) The Mixer Control tabs control the output audio. There are 16 individual channel mixers to control. These Output Channel mixers perform audio inversion, audio gain adjustment and audio channel swapping for each of the 16 output audio channels. -
Page 19: Figure 6-5: Source Select Drop Down Menu
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) Figure 6-5: Source Select Drop Down Menu The full set of available channels is listed below. Demux Ch 1 Source X/Y Input Demux Ch 2 Demux Ch 3 Demux Ch 4 Demux Ch 5 Demux Ch 6 Demux Ch 7... -
Page 20: Gain Adjust X
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.5.2. Gain Adjust X The Gain Adjust X/Y control enables the user to set the value of the gain for the selected source. The user can adjust the gain of the selected source by moving the associate slider control left to decrease the value or right to increase the value. -
Page 21: Preset Control
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) Figure 6-6: Preset Control Tab 6.6.3. Preset Control 6.6.3.1. AVM Trigger Logic The AVM Trigger Logic control sets the logic to be used when combining the AVM preset trigger conditions to determine if the overall AVM preset trigger either condition if True or False. A value of TRUE will only happen when all trigger conditions have been met. -
Page 22: Trigger Assert Preset
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.6.3.2. Trigger Assert Preset The Trigger Assert Preset control sets the preset to be recalled when the overall AVM preset trigger condition is asserted (transitions from FALSE TRUE). None When set to none, If trigger conditions are met the module will take no action. When set to user preset 1, If trigger conditions are met the module will recall User Preset 1 User Preset 1... - Page 23 7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) None When set to none, If trigger conditions are met the module will take no action. When set to user preset 1, If trigger conditions are not met the module will User Preset 1 recall User Preset 1 When set to user preset 2, If trigger conditions are not met the module will...
-
Page 24: Down Mix Control (+Dmx Only)
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.7. DOWN MIX CONTROL (+DMX ONLY) The Down Mix Control tab is used to perform a 5.1 PCM to stereo (LtRt, LoRo or custom) down mix. Figure 6-7: Downmix Control Tab 6.7.1. -
Page 25: Setting The Down Mix Type Controls
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) To assign a channel to L Source, navigate to the source and select a channel from the adjacent drop down menu. The following sources of audio are available: Channel 1 Select Channel 1 for the L Source Select Channel 2 for the L Source Channel 2 Select Channel 3 for the L Source... -
Page 26: Setting The Output Gain
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.7.2.2. Setting the Output Gain The Output Gain control enables the user to configure the output gain. To adjust the output gain control, drag the slider right to increase the gain value or drag the slider left to decrease the gain control. The output gain ranges from -20 dB to +20 dB in 0.1 dB increments. -
Page 27: Custom Down Mix Type Control Settings
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) When set to LoRo, the down-mixer will generate Left Only and Right Only LoRo (LoRo) stereo audio. When set to LtRt (Prologic I), the down-mixer will generate Left Total and LtRt (Prologic I) Right Total (LtRt) Prologic I compatible stereo audio. -
Page 28: Upmix Control (+Umx Only)
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.8. UPMIX CONTROL (+UMX ONLY) The Upmix Control tab is used to perform a stereo to 5.1 PCM audio up mix. The module has the capability to detect between stereo and 5.1 incoming content to ensure there is a constant 5.1 output. Figure 6-8: Upmix Control Tab 6.8.1. -
Page 29: Setting The Centre Width
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.8.2. Setting the Centre Width The Centre Width controls the width of front centre sound in the perceived sound image when listening to up-mixed audio. It mainly affects the perception of speech and dialog. Narrower centre width will cause the front centre sound primarily coming from the centre speaker. -
Page 30: Setting The Sound Direction Detect Rate
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.8.6. Setting the Sound Direction Detect Rate The Sound Direction Detect Rate controls the detection rate of sound direction. The up-mixer constantly calculates the sound image that would be perceived from the stereo audio input. If the sound direction shifts in the sound image, the up-mixer changes the output sound direction accordingly by switching the amount of sound going to different speakers. -
Page 31: Upmix Source Select
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) Demux Mono Ch 1 and 2 Demux Mono Ch 3 and 4 Demux Mono Ch 5 and 6 Demux Mono Ch 7 and 8 Demux Mono Ch 9 and 10 Demux Mono Ch 11 and 12 Demux Mono Ch 13 and 14 Demux Mono Ch 15 and 16 6.8.8.2. -
Page 32: Intelligain Configuration (+Ig Only)
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.9. INTELLIGAIN CONFIGURATION (+IG ONLY) ® Please refer to the IntelliGain User Manual for instructions on configuring IntelliGain ® ® 6.10. INTELLITRAK CONFIGURATION (+IT ONLY) ® Figure 6-9: IntelliTrak ® Please refer to the IntelliTrak User Manual for instructions on configuring IntelliTrak ®... -
Page 33: Fault Control
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.11. FAULT CONTROL Figure 6-10: Fault Control Tab 6.11.1. Black Duration The Black Duration control sets the duration, in frames, of active picture content below 7 IRE that is considered a fault. A fault is generated when the video level within the active picture area falls below the preset black level (7 IRE) and remains for the specified duration. -
Page 34: Picture Freeze Duration
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.11.2.2. Picture Freeze Duration The Picture Freeze Duration control sets the duration, in number of frames, of video activity under the picture noise level that is considered a fault. The value range is 6 to 9998 frames in four-frame increments. -
Page 35: Detecting Audio Over Level Faults
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.11.4. Detecting Audio Over Level Faults The Over Level and Over Duration controls are used to detect when audio amplitude is close to a dangerous level (i.e. clipping a downstream device, or saturating the digital word length). The Over Level control sets the audio level over which there is considered to be a fault. -
Page 36: Black Threshold
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.11.6.1. Black Threshold The Black Threshold control sets the amplitude, in decimal video numbers, of active picture content below which is considered too black. The value range is 4 to 127 in increments of 1. 0 IRE = 64 -2.5 IRE = 42 -6.8 IRE = 4... -
Page 37: White Warning Level
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.11.6.5. White Warning Level The White Warning Level control sets the amplitude, in decimal video numbers, of active picture content above which is considered to be a normal white level that is present on all input video sources. The value range is 400 to 895 in increments of 1. -
Page 38: Video Faults
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.12. VIDEO FAULTS The Video Fault Traps tab enables the user to set video traps and monitor the video trap status as illustrated in Figure 6-11. To enable a particular trap, simply click the box located beside each trap so that a check-mark appears. -
Page 39: Audio Faults
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) 6.13. AUDIO FAULTS The Audio Fault Traps tabs enable the user to set audio traps and monitor audio trap statuses as illustrated in Figure 6-12. An alarm will be sent to the user if any of the traps (user enabled) are triggered. These parameters are applicable to both Audio Fault Traps –... -
Page 40: Jumpers And User Adjustments
7700/7800 MultiFrame Manual 7800IDA8-3G 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8) JUMPERS AND USER ADJUSTMENTS SD Present HD Present MODULE STATUS 3G-A Present 3G-B Present (2)7800IDA8 Figure 7-1: LED and Jumper Locations 7.1. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED BY THE GLOBAL FRAME STATUS The FRAME STATUS jumper J3, located at the front of the module determines whether local faults (as shown by the Local Fault indicator) will be connected to the 7700/7800 series frame's global status bus.
