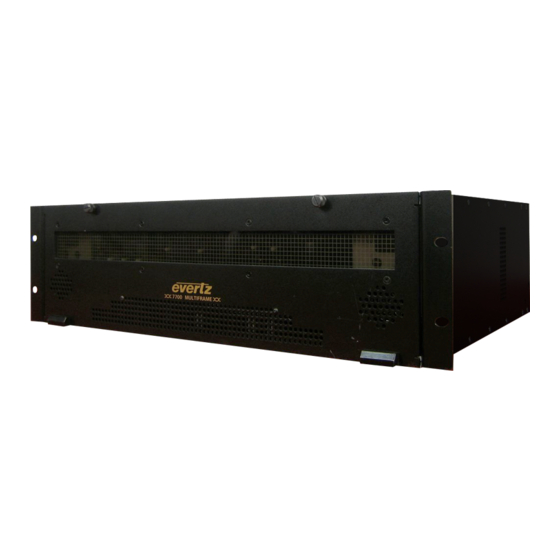

evertz 7700 MultiFrame User Manual

7800da2t-3g 3g/hd/sd-sdi distribution amplifier
Hide thumbs Also See for 7700 MultiFrame:
Table of Contents

Advertisement

Quick Links

Download this manual
7800DA2T-3G 3G/HD/SD-SDI Distribution Amplifier
© Copyright 2018
EVERTZ MICROSYSTEMS LTD.
5292 John Lucas Drive
Burlington, Ontario
Canada L7L 5Z9
Phone:
+1 905-335-3700
Sales:
sales@evertz.com
Tech Support: service@evertz.com
http://www.evertz.com
Web Page:
Version 1.0, August 2018
The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for the use of
purchasers of the 7800DA2T-3G product. Evertz Microsystems expressly prohibits the use of this manual for any purpose other than the
operation of the 7800DA2T-3G product. Due to on going research and development, features and specifications in this manual are subject to
change without notice.
All rights reserved. No part of this publication may be reproduced without the express written permission of Evertz Microsystems Ltd. Copies of
this manual can be ordered from your Evertz dealer or from Evertz Microsystems.
7700/7800 MultiFrame
User Manual
Fax: +1 905-335-3573
Fax: +1 905-335-7571

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7700 MultiFrame and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for evertz 7700 MultiFrame

Summary of Contents for evertz 7700 MultiFrame

  • Page 1 Version 1.0, August 2018 The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for the use of purchasers of the 7800DA2T-3G product. Evertz Microsystems expressly prohibits the use of this manual for any purpose other than the operation of the 7800DA2T-3G product.
  • Page 2 This page left intentionally blank...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “Dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the product.
  • Page 4 WARNING Changes or Modifications not expressly approved by Evertz Microsystems Ltd. could void the user’s authority to operate the equipment. Use of unshielded plugs or cables may cause radiation interference. Properly shielded interface cables...

  • Page 5: Table Of Contents

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame TABLE OF CONTENTS OVERVIEW ........................... 1 INSTALLATION ..........................3 SPECIFICATIONS ......................... 5 3.1. SERIAL VIDEO INPUT ......................5 3.2. SERIAL VIDEO OUTPUTS ....................5 3.3. ELECTRICAL ........................6 3.4. PHYSICAL ..........................6 STATUS LEDS ..........................7 CARD EDGE MODULE CONTROL ....................
  • Page 6 7700/7800 MultiFrame Manual 7700/7800 MultiFrame 6.6. INPUT 1 FAULT TRAPS ..................... 16 6.7. INPUT 2 FAULT TRAPS ..................... 17 JUMPERS AND USER ADJUSTMENTS ..................19 7.1. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED BY THE GLOBAL FRAME STATUS ..........................19 7.2.
  • Page 7 Aug 2018 Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of Evertz products are for informational use only and are not warranties of future performance, either expressed or implied.
  • Page 8 7700/7800 MultiFrame Manual 7700/7800 MultiFrame This page left intentionally blank Page - iv Revision 1.0...

  • Page 9: Overview

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame OVERVIEW The 7800DA2T Dual 3G/HD/SD-SDI Reclocking Distribution Amplifier provides high quality distribution of facility 3G/HD/SD-SDI signals. HD versions support SMPTE ST 292-1 and SMPTE ST 259 signals while 3G versions also support SMPTE 424M signals. This module features dual auto-sensing equalized inputs with unparalleled cable equalization, making it the most-cost effective and ideal solution for long cable run environments.

  • Page 10: Figure 1-1 : 7800Da2T-3G Block Diagram

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame Figure 1-1 : 7800DA2T-3G Block Diagram Page - 2 Revision 1.0...

  • Page 11: Installation

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame INSTALLATION The 7800DA2T comes with a companion rear plate that occupies one slot in the frame. For information on inserting the module into the frame see section 3 of the 7800FR chapter. Figure 2-1 : 7800DA2T-3G/7800DA2T-HD Rear Panels 3G/HD/SD-SDI INPUT: There are two input DIN 1.0/2.3 connectors for 10-bit serial digital video signals compatible with the 3Gb/s SMPTE 424M, 1.5Gb/sec SMPTE 292M,...
  • Page 12 7700/7800 MultiFrame Manual 7700/7800 MultiFrame This page left intentionally blank Page - 4 Revision 1.0...

  • Page 13: Specifications

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame SPECIFICATIONS 3.1. SERIAL VIDEO INPUT Standard: Auto-detects standard 3Gb/s SMPTE 424M, 1.5Gb/sec SMPTE 292M, 270Mb/s SMPTE 259M-C (525i/59.94 or 625i/50) Connector: 1 DIN 1.0/2.3 connector (1x6 mode) 2 DIN 1.0/2.3 connectors (2 by 1x3 mode) Input Equalization: Automatic to 150m @ 3Gb/s (Belden 1694A cable) 200m @ 1.5Gb/s (Belden 1694A cable)

  • Page 14: Electrical

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame 3.3. ELECTRICAL Voltage: + 12VDC Power: 6 Watts EMI/RFI: Complies with FCC regulations for class A devices Complies with EU EMC directive 3.4. PHYSICAL Number of slots: 350FR: 7700-FR-C: 7800FR: 7800FR-QT: 7801FR: Page - 6 Revision 1.0...

  • Page 15: Status Leds

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame STATUS LEDS The 7800DA2T has eight LED status indicators on the front card edge to show operational status of the card at a glance. Figure 4-1 shows the location of the LEDs. Two large Module Status LEDs on the front of the board indicate the general health of the module: LOCAL FAULT: This Red LED indicates poor module health and will be On during the absence of a valid input signal (on either of the two inputs if in dual 1x4 mode) or if a local input...
  • Page 16 7700/7800 MultiFrame Manual 7700/7800 MultiFrame This page left intentionally blank Page - 8 Revision 1.0...

  • Page 17: Card Edge Module Control

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame CARD EDGE MODULE CONTROL 5.1. CARD-EDGE CONTROL The 7800DA2T is equipped with a push-button shaft encoder and a four character dot matrix display to control various functions on the card. The push-button shaft encoder is used to navigate through a menu system to set and monitor various parameters for the module.

  • Page 18: Preset Parameters

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame 5.4. PRESET PARAMETERS The PRST menu option enters into a selection menu to either recall or save a preset. SAVE Menu option to save current module state to a selected preset. LOAD Menu option to load to the module a selected preset. 5.4.1.

  • Page 19: Vistalink ® Module Control

    3. A virtual database known as the Management Information Base (MIB) lists all the variables being monitored, which both the Manager and Agent understand. Please contact Evertz for further information about obtaining a copy of the MIB for interfacing to a third party Manager/NMS.

  • Page 20: General

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame 6.2. GENERAL The General section shows miscellaneous parameters of the module. Figure 6-1 : VistaLINK PRO - General Section ® 6.2.1. Information Card Name: Indicates the product model number of the card (including installed options). Firmware Creation Date: Indicates the build date of the firmware version.

  • Page 21: Video Control

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame 6.3. VIDEO CONTROL The Video Control section is used to select between the modes of operation. Figure 6-2 : VistaLINK PRO - Video Control Section ® Video Mode: The Video Mode drop down menu allows the user to set the mode of the card. Sets the card in dual 1x3 mode.

  • Page 22: Presets Control

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame 6.4. PRESETS CONTROL The Presets Control section allows the saving and recalling of presets. Figure 6-3 : VistaLINK PRO - Presets Control Section ® 6.4.1. Presets Save: The Save drop down menu will save the current module settings to a selected preset number. The user can save the settings by assigning a preset number (i.e.

  • Page 23: Monitor

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame 6.5. MONITOR The Monitor section shows video parameters of the module. Figure 6-4 : VistaLINK PRO - Monitor Section ® 6.5.1. Video Status Video Standard – Input 1: This field displays the currently detected input video standard of input 1. Video Standard –...

  • Page 24: Input 1 Fault Traps

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame 6.6. INPUT 1 FAULT TRAPS The Input 1 Fault Traps section shows the trap status for input 1 of the module. Figure 6-5 : VistaLINK PRO - Input 1 Fault Traps Section ® To enable a particular trap, simply click the box located beside each trap in the Trap Enable section so that a check mark appears.

  • Page 25: Input 2 Fault Traps

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame 6.7. INPUT 2 FAULT TRAPS The Input 2 Fault Traps section shows the trap status for input 2 of the module. Figure 6-6 : VistaLINK PRO - Input 2 Fault Traps Section ® To enable a particular trap, simply click the box located beside each trap in the Trap Enable section so that a check mark appears.
  • Page 26 7700/7800 MultiFrame Manual 7700/7800 MultiFrame This page left intentionally blank Page - 18 Revision 1.0...

  • Page 27: Jumpers And User Adjustments

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame JUMPERS AND USER ADJUSTMENTS SD Present HD Present MODULE STATUS 3G-A Present 3G-B Present (2)7800IDA8 Figure 7-1 : LED and Jumper Locations 7.1. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED BY THE GLOBAL FRAME STATUS The FRAME STATUS jumper J3, located at the front of the module determines whether local faults (as shown by the Local Fault indicator) will be connected to the 7700/7800 series frame's global status bus.
  • Page 28 7700/7800 MultiFrame Manual 7700/7800 MultiFrame This page left intentionally blank Page - 20 Revision 1.0...

  • Page 29: Upgrade Procedures

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame UPGRADE PROCEDURES 8.1. UPGRADE FIRMWARE A firmware upgrade can be accomplished through VistaLINK PRO firmware upgrade facilities. All ® 7800DA2T modules within the same 7700FR/7800FR frame can be upgraded simultaneously or one-by-one. However, it is more convenient to upgrade them simultaneously. Right click on 7700FR/7800FR frame that contains the 7800DA2T modules, and select Version Information.

  • Page 30: Updating Vlpro Server Jar File

    NOTE: If any of the 7800DA2T modules do not properly upgrade the firmware, please power-cycle those boards and retry the procedure exclusively on the failed boards. If the issue still persists, contact Evertz for further assistance. updating vlpro server jar file Page - 22 Revision 1.0...

  • Page 31: Figure 8-4 : Vistalink Pro Server/Apply Update

    7700/7800 MultiFrame Manual 7700/7800 MultiFrame Products from Evertz are constantly evolving and new features are often added. It is therefore important to update the JAR files in use to provide access to all the latest features or enhancement. It will also be necessary to add JAR files for new products.
  • Page 32 7700/7800 MultiFrame Manual 7700/7800 MultiFrame  NOTE: You may confirm that all updates have been successfully applied by selecting from the menu Tools>View>Show/Hide Product update log. Shutdown the server by selecting from the menu: File>Shutdown Server. Now re-open the server, it is normal for the start up to take marginally longer while each individual update is being applied.
