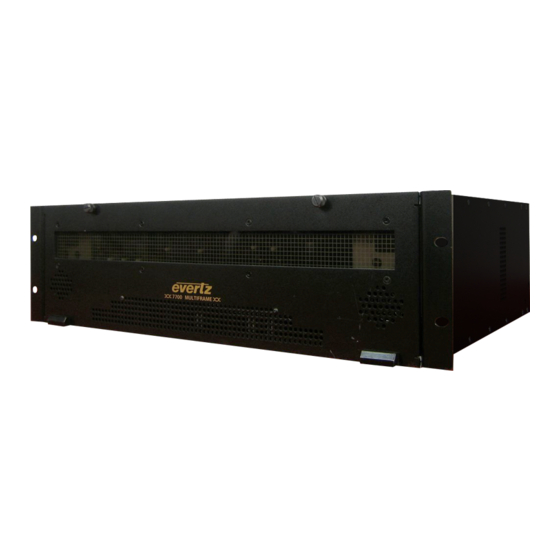

evertz 7700 MultiFrame Manual
Quad analog video fiber receiver
Hide thumbs
Also See for 7700 MultiFrame:
- Manual (58 pages) ,
- User manual (32 pages) ,
- User manual (172 pages)
Table of Contents
Advertisement
Quick Links
1.
OVERVIEW.......................................................................................................................................... 1
2.
INSTALLATION................................................................................................................................... 3
2.1. CARE AND HANDLING OF OPTICAL FIBER............................................................................ 4
3.
SPECIFICATIONS............................................................................................................................... 5
3.1. OPTICAL INPUT......................................................................................................................... 5
3.2. ANALOG VIDEO OUTPUTS....................................................................................................... 5
3.3. ANALOG AUDIO OUTPUTS ...................................................................................................... 5
3.4. ELECTRICAL ............................................................................................................................. 6
3.5. PHYSICAL .................................................................................................................................. 6
4.
STATUS INDICATORS AND DISPLAYS ........................................................................................... 7
4.1. STATUS INDICATOR LEDS....................................................................................................... 7
4.2. DOT-MATRIX DISPLAY ............................................................................................................. 8
4.2.1. Display of Warning Status Indications............................................................................. 9
4.2.2. Displaying the Video Standard ........................................................................................ 9
4.2.3. Displaying the Audio Presence (7707CVR-4-A16 Only) ................................................. 9
4.2.4. Displaying the Optical Power ........................................................................................ 10
4.2.5. Displaying the Firmware Version................................................................................... 10
4.2.6. Setting the Video Pre-emphasis.................................................................................... 10
4.2.7. Setting the Video Gain .................................................................................................. 11
4.2.8. Setting the DC Offset .................................................................................................... 11
4.2.9. Setting the Audio Gain (7707CVR-4-A16 Only) ............................................................ 11
4.2.10. Setting the Analog Audio Detection Threshold (7707CVR-4-A16 Only) ....................... 12
4.2.11. Setting the Analog Audio Silence Duration Period (7707CVR-4-A16 Only).................. 12
4.2.14. Setting the Orientation of the Text on the Card Edge Display....................................... 14
4.2.15. Resetting Factory Defaults ............................................................................................ 14
5.
JUMPERS.......................................................................................................................................... 15
BY THE GLOBAL FRAME STATUS ........................................................................................ 15
5.2. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES .............................................. 15
6.
®
7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver
TABLE OF CONTENTS
Revision 1.2
7700 MultiFrame Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for evertz 7700 MultiFrame
Summary of Contents for evertz 7700 MultiFrame
-
Page 1: Table Of Contents
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver TABLE OF CONTENTS OVERVIEW............................1 INSTALLATION........................... 3 2.1. CARE AND HANDLING OF OPTICAL FIBER................4 SPECIFICATIONS..........................5 3.1. OPTICAL INPUT......................... 5 3.2. ANALOG VIDEO OUTPUTS....................... 5 3.3. ANALOG AUDIO OUTPUTS ...................... 5 3.4. - Page 2 7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver 6.1. W LINK ? ....................... 16 HAT IS ISTA ® 6.2. V LINK MONITORED PARAMETERS ................16 ISTA ® 6.3. V LINK ........................17 ISTA RAPS ® 6.4. V LINK CONTROLLED PARAMETERS................
- Page 3 Oct 09 Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of Evertz products are for informational use only and are not warranties of future performance, either expressed or implied.
- Page 4 7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver WARNING Never look directly into an optical fiber. Non-reversible damage to the eye can occur in a matter of milliseconds. Do not hook up the 7707CVT-4 series DWDM cards and any 7707CVR-4 series cards directly with a short fiber optic cable.
-
Page 5: Overview
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver OVERVIEW The 7707CVR-4 is a VistaLINK enabled, Quad Analog Video fiber receiver for broadcast video quality ® signals. This single card module accepts a fiber optic input, demultiplexes the signals, performs D to A conversion and outputs NTSC or PAL analog video. -
Page 6: Figure 1-1: 7707Cvr-4 And 7707Cvr-4-A16 Block Diagram
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver Figure 1-1: 7707CVR-4 and 7707CVR-4-A16 Block Diagram Page - 2 Revision 1.2... -
Page 7: Installation
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver INSTALLATION The 7707CVR-4 comes with a companion rear plate that has four BNC connectors and one SC/PC, ST/PC or FC/PC optical connector. Additionally the 7707CVR-4-A16 has one 48-pin terminal header with removable terminal block. -
Page 8: Care And Handling Of Optical Fiber
The transmission characteristics of the fiber are dependent on the shape of the optical core and therefore care must be taken to prevent fiber damage due to heavy objects or abrupt fiber bending. Evertz recommends that you maintain a minimum bending radius of 5 cm to avoid fiber-bending loss that will decrease the maximum attainable distance of the fiber cable. -
Page 9: Specifications
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver SPECIFICATIONS 3.1. OPTICAL INPUT Number of Inputs: Connector: Female SC/PC, SC/PC with cover flap, ST/PC or FC/PC Operating Wavelength: 1270nm to 1610nm Max. Input Power: Standard: 0dBm High Sensitivity (-H):... -
Page 10: Electrical
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver Freq. Response: +/-0.1 dB, 20Hz to 20 kHz THD 20Hz–20Khz: < 0.005% Channel Phase Diff. +/-1 degree SNR (weighted): > 85 dB Output Level Adj: -20 dB to +3 dB Max Output Level: +24 dBu into 10 kΩ... -
Page 11: Status Indicators And Displays
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver STATUS INDICATORS AND DISPLAYS The 7707CVR-4 has 7 LED Status indicators and a 4 digit alphanumeric display on the front card edge to show operational status of the card at a glance. The card edge pushbutton and toggle switch are used to select various displays on the alphanumeric display. -
Page 12: Dot-Matrix Display
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver 4.2. DOT-MATRIX DISPLAY Additional signal and status monitoring and control over the card’s parameters are provided via the 4-digit alphanumeric display located on the card edge (see Figure 5-1). The card edge toggle switch is used to select whether you are displaying status from the card (monitoring mode) or setting control parameters for the card (control mode). -
Page 13: Display Of Warning Status Indications
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver If a specific menu selection has a configuration value associated with it, then this may be changed using the toggle switch. Pressing the pushbutton will apply the displayed value and return you to the previous menu level. -
Page 14: Displaying The Optical Power
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver 4.2.4. Displaying the Optical Power The 7707CVR-4 module can measure and display the input optical power over a range of -1dBm to –40dBm at increments of 1dBm for the standard version and -7dBm to –40dBm in 1dBm increments for the –H version. -
Page 15: Setting The Video Gain
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver 4.2.7. Setting the Video Gain The Gain control is used to set the gain of the video output on the 7707CVR-4 and 7707CVR-4-A16. The display shows a range of gain values expressed as a percentage. -
Page 16: Setting The Analog Audio Detection Threshold (7707Cvr-4-A16 Only)
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver CTRL This control enables the user to set the audio volume of each channel level. -10 to +10 Gain level range, describing a dBu value GAIN AUD1 -10.0 to +10.0 4.2.10. -
Page 17: Selecting The Headphone Jack Channel And Volume (7707Cvr-4-A16 Only)
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver 4.2.12. Selecting the Headphone Jack Channel and Volume (7707CVR-4-A16 Only) The 7707CVR-4-A16 provides a convenient audio monitoring headphone jack at the card-edge. This jack can be used to verify signal presence or content for each audio channel, and is enabled while specific menu items are selected within the JACK menu. -
Page 18: Setting The Orientation Of The Text On The Card Edge Display
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver CTRL In menu level 4 use the toggle switch and then pushbutton to select the PSWD following: 0-9999 Enter a new password 0…9999 PWSL VID1 Select Video Input 1 VID2... -
Page 19: Jumpers
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver JUMPERS TOGGLE SWITCH LOCAL FAULT FRAME STATUS ON/OFF MODULE OK OPTICAL LINK PRESENT VIDEO 1 PRESENT VIDEO 2 PRESENT VIDEO 3 PRESENT VIDEO 4 PRESENT DISPLAY PUSH BUTTON SELECT HEAD PHONE JACK... -
Page 20: Vistalink ® Remote Monitoring/Control
3. A virtual database known as the Management Information Base (MIB) lists all the variables being monitored and which both the Manager and Agent understand. Please contact Evertz for further information about obtaining a copy of the MIB for interfacing to a third party Manager/NMS. -
Page 21: Vistalink Traps
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver 6.3. VISTALINK TRAPS ® The following traps can be remotely monitored through the VistaLINK interface. ® Trap Description Audio Presence Indicates the presence of Audio 1 through 16 (7707CVR-4-A16 Only) -
Page 22: Figure 6-1: Control Tab
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver 6.5. VISTALINK GUI SCREENS ® The following screen shots show the VistaLINK GUI screens for the 7707CVR-4 and 7707CVR-4-A16. ® Figure 6-1: Control Tab Page - 18 Revision 1.2... -
Page 23: Figure 6-2: Video Control Tab
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver Figure 6-2: Video Control Tab Page - 19 Revision 1.2... -
Page 24: Figure 6-3: Monitor Tab
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver Figure 6-3: Monitor Tab Figure 6-4: Video Monitor Tab Page - 20 Revision 1.2... -
Page 25: Figure 6-5: Faults Tab
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver Figure 6-5: Faults Tab Figure 6-6: Video Faults Tab Page - 21 Revision 1.2... -
Page 26: Figure 6-7: Audio Faults Tab (7707Cvr-4-A16 Only)
7700 MultiFrame Manual 7707CVR-4, 7707CVR-4-A16 Quad Analog Video Fiber Receiver Figure 6-7: Audio Faults Tab (7707CVR-4-A16 only) Page - 22 Revision 1.2...
